Double Flanged Butterfly Control Valve, 2-80 Inch, 150-400 LB

Double Flanged Butterfly Control Valve, 2-80 Inch, 150-400 LB
Double Flanged Butterfly Control Valve, 2-80 Inch, 150-400 LB

Key Specifications / Features

Model no.: CNCV-240522-BFCV-01

Present our Double Flanged Butterfly Control Valve Factory: offering versatility and reliability for a range of applications. Available in sizes from 2 to 80 inches (DN50 to DN2000) and Class 150 to 400 LB ratings, it ensures compatibility with diverse systems. Crafted from carbon, stainless steel, or ductile iron, it guarantees durability in various environments. Equipped with a pneumatic actuator, it enables efficient control and operation. Whether for industrial or municipal use, our valve delivers exceptional performance you can rely on.

Categories

Tags:

Request a quote

Detail Information


Product Name: Double Flanged Butterfly Control Valve
Body Material: Ductile Iron, Carbon Steel ASTM A216 WCB, Stainless Steel SS 304, SS 316, etc
Size Range: 2-80 Inch, DN50-DN2000
Pressure Rating: Class 150-400 LB, PN10-PN64
Seal: Elastic Seal, Metal Seal
End Connection: Flanged
Temperature Range: -40°C to +450°C
Leakage Class: Zero Leakage (Soft Seal), GB/T 4213-92 (Metal Seal)
Flow Characteristics: Appropriately Quick Open
Actuator Options: Single or Double Acting Pneumatic Actuator


Nickname*:
E-mail*:
Rate*:
Comments*:

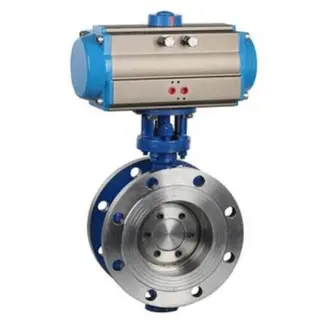

next: Metal Seated Butterfly Control Valve, 2-80 Inch, CL 150-400
