Double Offset Butterfly Control Valve, A351 CF8, DN80, PN16
Double Offset Butterfly Control Valve, A351 CF8, DN80, PN16

Key Specifications / Features

Model no.: CNCV-240708-BFCV-03

Our Double Offset Butterfly Control Valve is manufactured in a specialized factory, featuring electric actuation and conforming to API 608 standards. Constructed from ASTM A351 CF8 for robustness, it operates at DN80 (3 inches) with a PN16 pressure rating and Class 150 LB. Equipped with a metal hard seal and wafer ends, this valve ensures reliable performance in industrial applications requiring precise flow control and durability.

Categories

Tags:

Detail Information


Product Name: Double Offset Butterfly Control Valve
Design: API 608
Structure:    Double Eccentric
Sealing: Metal Hard Sealed
Body Material: Stainless Steel ASTM A351 CF8
Size: DN80, 3 Inch
Pressure: PN16, Class 150 LB
End Connection: Wafer Ends
Actuation: Electric Actuator

Product Range

Standards: ANSI, GB, DIN, JIS
Body Material: Ductile Iron, Carbon Steel, Stainless Steel
Size Range: 2-56 Inch, DN50-DN1400
Pressure Rating: PN10, PN16, Class 150 LB
Medium: Water, Oil, Gas
Working Temperature: -40°C to +120°C
Actuator Options: Pneumatic or Electric Actuators

Electric Double Offset Butterfly Control Valve

Double Eccentric Design: With an offset centerline of the valve disc from both the shaft and seat axes, this design minimizes friction and wear, enhancing seal integrity and valve longevity.

Hard-Sealed Construction: Employing materials like metal or ceramic for the sealing surfaces, this valve ensures superior sealing performance in high-pressure and high-temperature environments, ensuring leak-free operation.

Wafer Style Body: The compact and lightweight wafer-style body is easily installed between pipeline flanges, offering a secure and space-efficient solution.

Electric Actuator: Automated operation and remote control are facilitated by an integrated electric actuator, which responds to control system signals for precise valve positioning.

Butterfly Disc and Shaft: The valve's butterfly disc, attached to a shaft, rotates within the body to regulate fluid flow. Linked to the electric actuator, this setup ensures smooth and accurate flow control.

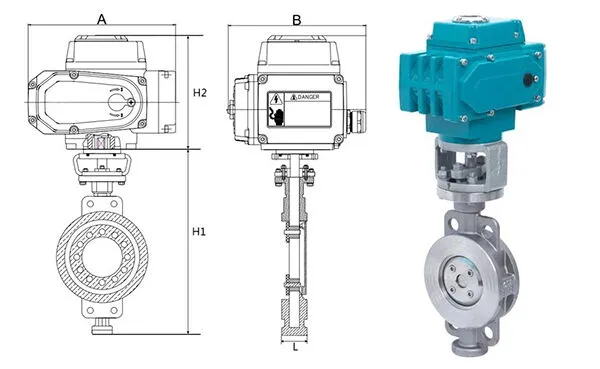

Electric Double Offset Butterfly Control Valve Design
