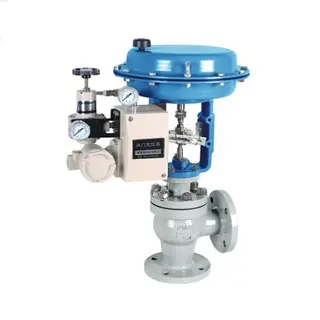

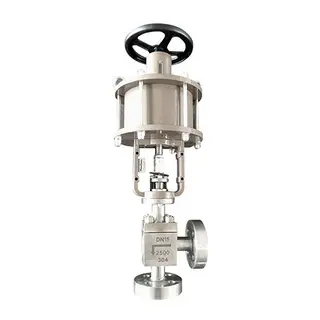

Product Name: High Pressure Angle Control Valve
Key Features: Unbalanced Single-seat Plug, Multi-stage Pressure Drop Trim
Body Material: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, etc
Size Range: 1/2-4 Inch, DN15-DN100
Pressure Rating: Class 150-2500 LB, PN20-PN420
End Connection: Flanged, Welded (SW, BW)
Seat Leakage: ANSI B16.104 Class V, IV, VI
Fluid Temperature: -196°C to 550°C
Flow Characteristics: Equal Percentage, Linear
Actuator Options:
Pneumatic Diaphragm Actuator
Pneumatic Piston Actuator
Electric Actuator
High-Pressure Angle Control Valve Features
1. Actuator Compatibility: This valve is versatile and can be paired with either an electric actuator or a pneumatic actuator, providing flexibility in control systems and accommodating various industrial needs.
2. Angular Valve Body Design: The valve body features an angular structure that is specifically designed to manage high differential pressures effectively.
3. Multi-Stage Pressure Drop Trim: To cater to different service conditions, the valve is equipped with a multi-stage pressure drop trim consisting of various multihole cages. This design allows for the progressive consumption of the internal energy of high-speed media, reducing flow velocity from the initial contact with the first cage.
4. Cavitation and Flash Evaporation Mitigation: The valve's design ensures that the medium pressure remains above the saturated vapor pressure, effectively eliminating the risk of flash evaporation and cavitation.
5. Durable and Hardened Trim Components: The standard configuration includes an unbalanced single-seat plug that, along with the seat, undergoes a hardening treatment. This process enhances the durability and extends the service life of the valve trim.
6. Robust Construction for High-Pressure Applications: The valve is constructed to withstand the rigors of high-pressure applications, ensuring reliable operation and minimal maintenance requirements.
