A Basic Guide to Electric Three-Way Control Valves


Electric three-way control valves play a crucial role in the industrial sector, allowing precise control and regulation of fluids due to their unique structure and operational principles. Below, we delve into the working principles and classification of electric three-way control valves, along with their characteristics in various application scenarios.




Working Principles


The operation of electric three-way control valves involves their special valve body structure and valve regulation mechanism. The valve body typically adopts a three-way structure, categorized into one inlet and two outlets (diverter type) or two inlets and one outlet (converging type). Converging control valves are commonly used to mix two different fluids or regulate fluids of different temperatures to achieve desired properties or temperatures after mixing. On the other hand, diverging valves split one fluid into two streams, each flowing into different pipelines or equipment. Converging control valves control the flow rate ratio of two fluids by adjusting the valve, thus achieving mixing, while diverging control valves split one fluid into two streams by opening or closing the valve.

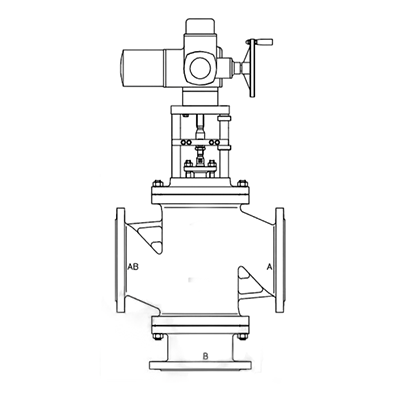

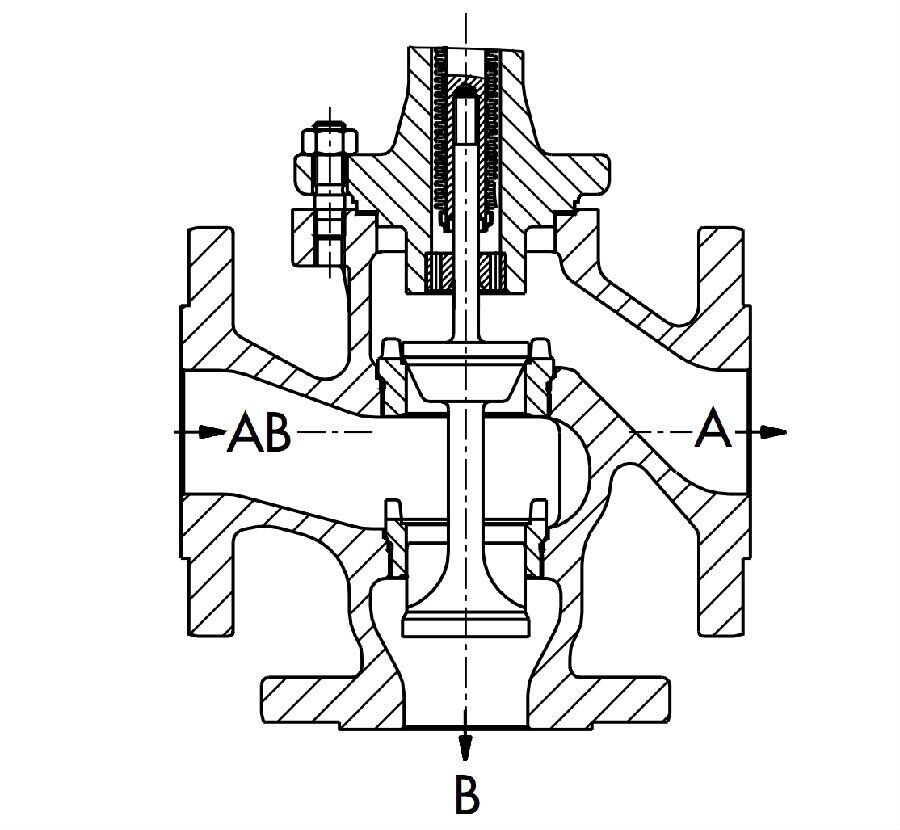

Three-Way Control Valve Structure


Electric three-way control valves are classified into converging valves and diverging valves based on the mode of fluid action. Converging valves have two inlets and one outlet, mixing two fluids before flowing out from one outlet, while diverging valves have one inlet and two outlets, splitting one fluid into two streams flowing out from two outlets.

1. Converging Type: These valves exhibit excellent mixing effects and are suitable for scenarios requiring the mixing of two fluids. They allow precise control of the mixing ratio by adjusting the valve, meeting various process requirements.

2. Diverging Type: These valves split one fluid into two streams, suitable for situations requiring diversion. They can distribute fluid to different pipelines or equipment, enabling multi-stream fluid control.


Application Characteristics


Electric three-way control valves offer various advantages in industrial applications, making them indispensable devices in fluid control.

1. Precision Control: Employing advanced valve design and control technology, electric three-way control valves achieve precise control and regulation of fluid, meeting requirements for flow rate, pressure, temperature, and other parameters in diverse industrial processes.

2. Versatility: Due to their capability to perform both converging and diverging functions, these valves find applications in various processes. They can mix fluids of different properties, regulate media of different temperatures, and distribute fluids to different pipelines or equipment, meeting the demands of complex processes.

3. Leakage Control: To minimize leakage, three-way control valves with cage structures can be utilized, equipped with balance holes to eliminate imbalance forces, ensuring stable valve operation and enhancing system safety and reliability.

4. Wide Applications: Electric three-way control valves are widely used in petrochemicals, water treatment, HVAC, and other fields, offering suitable control methods and structural types according to different process requirements.

In conclusion, electric three-way control valves stand as indispensable components in industrial fluid control, thanks to their versatile functionality, precision control, and wide-ranging applications. With their ability to adapt to diverse fluid control requirements and meet the demands of complex industrial processes, these valves not only ensure efficient operation but also enhance system safety and reliability.
