Advantages and Selection of Pneumatic O-Type Ball Control Valves


In today's industrial sector, fluid control technology is of paramount importance. Pneumatic O-type ball control valves, with their high efficiency, safety, and reliability, have become an indispensable component in fluid control systems. This article will delve into the working principle, technical advantages, selection guide, and application cases of pneumatically operated O-type ball control valves in various industrial fields.

Working Principle


The working principle of the pneumatically operated O-type ball control valve is primarily based on the following key steps.

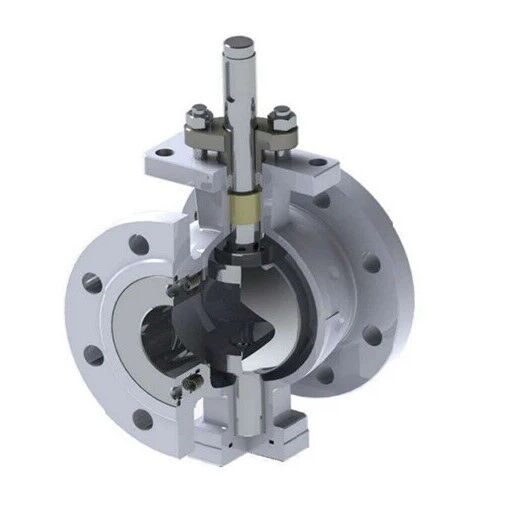

Valve Body and Core Structure: The valve consists of a valve body, core (ball), seals, and a pneumatic actuator. The valve body is typically cylindrical, with an internal channel for the medium to flow through.

Ball Rotation Mechanism: The core is a perforated ball, with the centerline of the hole aligned with the centerline of the valve body's channel. When the ball rotates, the opening of the hole can align with the channel to allow the medium to flow, or be misaligned to prevent the flow.

Pneumatic Actuator Function: The power source of the valve is compressed air, which is used to rotate the core through the pneumatic actuator. The actuator receives pressure signals from the control system, driving the valve stem to rotate the core.

Valve Opening: When the control system provides a pressure signal to the actuator, the piston or diaphragm within the actuator is subjected to pressure, pushing the valve stem to rotate the core around the valve body's centerline to an open position. At this point, the channel on the ball aligns with the channel in the valve body, allowing the medium to flow.

Valve Closing: When the control system cuts off or changes the pressure signal, the reset mechanism within the actuator (such as a spring) pulls the valve stem back, causing the core to rotate to a closed position. At this point, the channel on the ball is misaligned with the channel in the valve body, blocking the flow of the medium.

Technical Advantages


The technical advantages of pneumatically operated O-type ball control valves are reflected in multiple aspects, making them an ideal choice for industrial fluid control systems.

Lightweight and Compact Design: Compared to traditional valves, these valves are smaller in size and lighter in weight, facilitating installation and maintenance.

Large Diameter Adaptability: Capable of accommodating a variety of requirements from small to large diameters, meeting the needs of different scales of industrial applications.

Excellent Sealing Performance: The sealing surface and the spherical surface are often in a closed state, effectively preventing medium leakage and ensuring the sealing reliability of the valve.

Simplified Structural Design: Easy to maintain, with seals that are easy to disassemble and replace, reducing maintenance time and costs.

Medium Isolation Protection: In fully open or fully closed states, the sealing surface of the ball and the valve seat is isolated from the medium, avoiding erosion of the valve sealing surface by the medium.

Low Fluid Resistance: The resistance coefficient is equal to that of a pipe section of the same length, ensuring smooth flow of the fluid and reducing energy loss.

Rapid Operational Response: From fully open to fully closed, only a 90° rotation is required, facilitating quick operation and remote control, improving production efficiency.

High Safety: Compressed air is used as the power source, with pressure stable at 0.4-0.8MPa, which is relatively safe and non-polluting to the environment in case of air leakage.

Selection Guide


Selecting the appropriate pneumatically operated O-type ball control valve requires consideration of the following key factors:

Medium Characteristics: Choose suitable materials and seals based on the corrosiveness, temperature, and pressure of the medium.

Flow Requirements: Select a valve with an appropriate diameter based on the system's flow requirements.

Operating Environment: Consider factors such as temperature, humidity, and chemical properties of the operating environment to ensure long-term stable operation of the valve.

Control Method: Choose the appropriate control method, such as manual, pneumatic, or electric, based on the degree of automation and ease of operation.

Application Cases


Pneumatically operated O-type ball control valves have a wide range of applications in various industrial fields. Here are some specific application cases:

Chemical and Petroleum Industry: Due to their excellent sealing performance, large flow capacity, and low flow resistance coefficient, these valves are widely used in the chemical and petroleum industries to control the flow of various corrosive media, such as petroleum, nitric acid, acetic acid, etc.

Power Industry: In power systems, these valves are used to control the flow of boiler feedwater, cooling water, and other fluids, ensuring the stability and safety of power production.

Papermaking Industry: In the white water recycling system of paper machines, these valves are used to control the flow of white water, improving the recycling rate of resources.

Food and Pharmaceutical Industry: Due to their high hygiene level, ease of cleaning and maintenance, they are used in the food and pharmaceutical industries to control the flow of products on the production line, ensuring product quality.

Urban Water Supply System: In urban water supply systems, these valves are used to control the distribution and regulation of water, ensuring the stability and safety of water supply.

With their high efficiency, safety, reliability, and ease of maintenance, pneumatically operated O-type ball control valves have become the preferred valves for modern industrial fluid control. As technology continues to advance and innovate, the application fields of pneumatically operated O-type ball control valves will further expand, providing more comprehensive solutions for industrial automation and process control.
