An Introduction to Pneumatic Three-Way Ball Control Valves

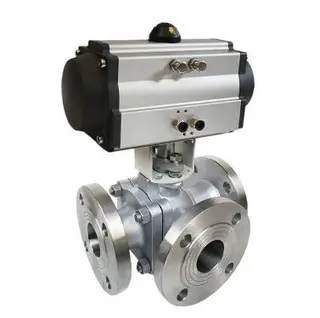

Pneumatic three-way ball control valves are versatile rotary devices that integrate components such as pneumatic actuators, three-way ball control valves, and pneumatic accessories. These valves play a crucial role in industrial fluid control by enabling media distribution, convergence, and directional switching. They are suitable for various production processes and application scenarios. Pneumatic three-way ball control valves are primarily categorized into L-type and T-type, each designed to meet specific application requirements.

Structure and Working Principle


To understand the efficient fluid control capabilities of pneumatic three-way ball control valves, it is important to examine their structure and working principle. This section provides a detailed analysis of their main components and operational methods.

1. Structural Composition


Ball Body: The ball body is the core component of the pneumatic three-way ball control valve, featuring three internal channels for fluid flow in three directions. The ball's rotation alters the fluid channels, allowing for the opening, closing, or direction switching of the fluid. The ball body is typically made from corrosion-resistant materials to accommodate various media requirements.

Stem: The stem connects the pneumatic actuator to the ball body and is responsible for driving the ball's rotation to control fluid flow direction. The stem's design emphasizes wear resistance and stability to ensure reliable long-term operation.

Bonnet: The bonnet protects and secures the stem while ensuring the valve's sealing performance. Its material and design must provide excellent sealing to prevent fluid leakage.

2. Working Principle


The working principle of pneumatic three-way ball control valves is efficient and straightforward:

Signal Reception: The pneumatic actuator receives a control signal and begins operation according to the signal's instructions.

Rotation Drive: The pneumatic actuator uses an air source to drive the stem's rotation, which, in turn, rotates the ball body.

Flow Control: The stem's rotation moves the ball body, changing the fluid channels to achieve opening, closing, or directional switching of the fluid. This design ensures rapid response and precise fluid control.

Types and Applications


Pneumatic three-way ball control valves are adaptable to various industrial needs and are divided into two main types: L-type and T-type. Each type serves unique functions and is suitable for different applications.

1. L-Type Ball Control Valve


The L-type ball control valve can isolate any two of the three connected pipelines. This design is ideal for applications requiring flow direction switching between two pipelines, such as fluid distribution and isolation. L-type valves are widely used for fluid diversion and isolation, effectively managing and controlling fluid flow direction.

2. T-Type Ball Control Valve


The T-type ball control valve facilitates the merging and distribution of flow between three connected pipelines. Its design allows for fluid flow direction switching among three pipelines, making it suitable for complex fluid flow scenarios such as mixing and distribution. T-type valves are crucial for processes that require multi-channel fluid regulation.

Control and Regulation


Pneumatic three-way ball control valves are often paired with electrical valve positioners to achieve precise fluid control. By inputting a 4-20mA DC signal and an air source of 0.4-0.7MPa, the valve's open/close state can be controlled, and parameters such as pressure, flow rate, temperature, and level can be adjusted. This capability makes the pneumatic three-way ball control valve suitable for complex industrial processes, ensuring process stability and precision.

Additionally, pneumatic three-way directional ball control valves can be equipped with components such as travel limit switches, solenoid valves, and pressure-reducing valves, requiring an air source of 0.4-0.7MPa. They perform on-off operations and indicate the valve's status through passive contact signals, ensuring flexibility and reliability in operation.

Advantages and Application Areas


The design of pneumatic three-way ball control valves offers significant advantages in operational performance and is applicable across various industries.

1. Main Advantages


Strong Control Capability: Enables remote automatic control, enhancing pipeline system efficiency and safety.
Excellent Sealing Performance: Provides effective sealing to prevent fluid leakage and ensure process stability.
Pressure and Corrosion Resistance: Designed to withstand high pressures and resist corrosion, making them suitable for harsh environments.
Rapid Response: The ball's rotation allows for quick response, enabling rapid changes in fluid direction.

2. Application Areas


Pneumatic three-way ball control valves are used in:

Chemical Industry: For regulating fluid direction and flow, ensuring process stability and safety.
Oil and Gas Transportation: To connect and regulate multiple pipelines, ensuring stability and efficiency in transport.
Food and Pharmaceutical Industries: For precise and hygienic fluid control, meeting stringent industrial standards.
Refrigeration and Paper Industries: Suitable for low-temperature and specialized media pipelines, ensuring efficient system operation.

In summary, pneumatic three-way ball control valves are essential components in industrial fluid control. Their efficient, stable, and reliable performance makes them indispensable in modern industrial production. They not only facilitate fluid opening and closing but also connect multiple pipelines, providing robust support for industrial processes. Whether in chemical production, oil transportation, or in the fields of food, pharmaceutical, and refrigeration, pneumatic three-way ball control valves demonstrate outstanding performance and broad applicability.
