Analysis and Measures for Control Valve Trim Wear

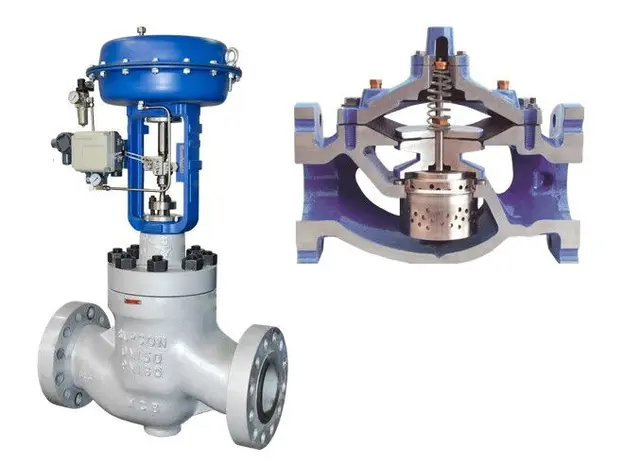

Control valves, as essential components in flow control systems, are widely used across various industries such as petrochemical, power generation, metallurgy, food processing, and pharmaceuticals. Their primary function is to regulate parameters such as fluid flow, pressure, and temperature to achieve precise process control. However, over time, control valves are subject to wear of their internal components (or "trim"), which can significantly impact valve performance and lifespan. Understanding the causes, manifestations, and countermeasures for trim wear is critical to ensuring the stable operation of flow control systems and extending the service life of equipment.

Causes and Manifestations of Control Valve Trim Wear

Control valve trim wear generally occurs between the valve plug, seat, and other components that come into contact with the fluid medium. These components are subjected to various external factors such as fluid flow, temperature fluctuations, and pressure variations. The onset of wear is often a gradual process that initially manifests as minor surface damage, but over time, the wear becomes more pronounced, leading to degraded valve performance or even failure.

1. Causes of Trim Wear

Several factors contribute to the wear of control valve trims, including:

Physical and Chemical Properties of the Fluid

The composition, flow velocity, temperature, viscosity, and corrosiveness of the fluid have a direct impact on the wear of valve components. Corrosive fluids and high-temperature media, in particular, can cause severe damage to metallic materials, leading to corrosion and wear.

Solid Particles in the Fluid

When the fluid contains solid particles, such as sand, dust, or other abrasives, these particles cause friction and impact on the valve trim, accelerating the wear process. High-concentration particulate fluids are particularly damaging to valve sealing surfaces, seats, and plugs.

Pressure Fluctuations and Shock

During valve operation, pressure fluctuations or sudden changes in fluid velocity can generate significant shock forces that accelerate wear on valve trims. This is especially prevalent when cavitation (the formation and collapse of vapor bubbles in a liquid) or gas bubble formation occurs in the fluid.

Improper Operation and Maintenance

Misoperation or irregular maintenance of control valves can exacerbate trim wear. For example, frequent opening and closing of the valve, improper regulation, or uneven seating of the valve can result in increased wear.

2. Manifestations of Trim Wear

The most common signs of control valve trim wear include the following.

Decreased Sealing Performance

A decline in sealing performance is the most common manifestation of trim wear. This leads to leakage as the sealing surfaces can no longer effectively isolate the fluid medium. In severe cases, worn trims can cause the valve's sealing surfaces to fail entirely, resulting in significant fluid loss and loss of pressure control.

Inaccurate Flow Control

If the valve plug and seat become poorly sealed or if friction within the valve body increases, flow control becomes less precise. The valve's response time to changes in flow rate slows, and it can no longer provide the accurate regulation required by the process.

Increased Vibration or Noise

As wear causes the valve plug and seat to become loose or misaligned, greater vibration or noise can occur when the fluid passes through. This is often accompanied by abnormal system operation.

Valve Failure

As wear progresses, the valve's operational life shortens, and eventually, the valve may fail to function entirely. In such cases, the valve becomes unable to perform its intended function, potentially leading to system failures or production downtime.

Types of Control Valve Trim Wear

Based on the causes and manifestations of wear, control valve trim wear can be classified into several types.

1. Wear Due to Particulate Media

Particulate media refers to fluids containing solid particles, such as sand, coal dust, or other abrasives. As these particles move through the valve, they cause friction and impact on the trim, gradually wearing down the material. This type of wear typically affects valve seats, plugs, and guide bushings, all of which are in direct contact with the fluid.

Contributing Factors: The size, hardness, concentration, and velocity of the particles all influence the severity of wear. Larger, harder particles cause more severe wear, and higher particle concentration accelerates the wear rate. Faster fluid velocities also increase the impact forces on the valve trim.

Countermeasures: To counteract wear caused by particulate media, valves should be designed using materials with high wear resistance, such as carbide or stainless steel, and the trim surfaces should be coated with wear-resistant layers. Additionally, valve designs should incorporate streamlined flow paths to minimize direct impact between the media and the trim.

2. Wear Due to Corrosive Media

Corrosive media, including acids, alkalis, and saline solutions, cause wear through chemical reactions that corrode the metal surface of valve trims. This corrosion often occurs in tandem with mechanical wear, leading to a dual effect on the trim’s performance.

Contributing Factors: The acidity or alkalinity of the medium, its temperature, concentration, and flow velocity all influence the rate of corrosion. High temperatures and strong acidic or alkaline solutions increase corrosion speed.

Countermeasures: To mitigate the effects of corrosive media, valves should be made from materials with high corrosion resistance, such as alloy steels or titanium alloys. Alternatively, corrosion-resistant liners, such as PTFE or PFA, can be used to protect the internal surfaces of the valve. Design considerations should aim to minimize direct contact between corrosive fluids and metal trim surfaces.

3. Wear Caused by Cavitation

Cavitation occurs when the pressure in a liquid drops below its vapor pressure, causing vapor bubbles to form. These bubbles collapse violently when pressure increases, releasing significant amounts of energy that can erode the valve trim. Cavitation is commonly observed in throttling valves, particularly when the flow rate is high, or pressure conditions fluctuate.

Contributing Factors: Low-pressure zones, high fluid velocities, and fluctuating pressure conditions are conducive to cavitation. These factors create conditions where vapor bubbles can form and collapse, leading to increased wear.

Countermeasures: To reduce cavitation, valve designs should aim to control pressure drops more gradually and avoid sudden pressure changes. Additionally, using materials that are resistant to cavitation damage, such as carbide, can help protect the trim.

4. Wear from High-Velocity Liquids

High-velocity liquids can cause erosive wear on valve trims, as the force of the liquid striking the trim surface causes the material to erode. This is particularly problematic in systems where the flow rate fluctuates or is poorly controlled.

Contributing Factors: Higher flow velocities increase the impact forces on the trim, accelerating the erosion process. The viscosity of the liquid and the presence of suspended particles further influence the wear rate.

Countermeasures: Valves should be designed to handle high-velocity flows, with features such as turbulence-reducing flow paths and enhanced sealing surfaces. Additionally, the flow rate should be controlled to avoid sudden velocity changes that can lead to excessive wear.

Preventative Measures for Control Valve Trim Wear

Several strategies can be employed to reduce the impact of trim wear and extend the service life of control valves.

1. Selection of Wear-Resistant Materials

To enhance the wear resistance of control valve trims, manufacturers often select high-hardness and corrosion-resistant materials. Common wear-resistant materials include carbide, ceramic coatings, and special hard coatings. These materials help reduce the rate of wear, thus extending the valve's operational life. For example, the use of titanium alloys or Hastelloy can significantly reduce wear caused by particulate or corrosive media.

2. Improved Valve Design

The design of the valve plays a crucial role in minimizing trim wear. A well-designed valve reduces the direct impact of fluid flow on trim components. For example, streamlined flow paths can reduce turbulence and minimize the friction between the fluid and the valve trim. Additionally, maintaining optimal clearance between the valve plug and seat prevents excessive contact that leads to wear.

3. Control of Fluid Properties

Managing the properties of the fluid flowing through the valve is a critical factor in reducing wear. Fluids containing high concentrations of solid particles or with high viscosity are more likely to cause wear on the valve trim. Whenever possible, fluid characteristics should be optimized to minimize wear. Additionally, controlling flow velocity can reduce the impact forces that lead to wear.

4. Application of Special Coatings

For trims that are prone to wear, special coatings such as ceramic or carbide coatings can be applied to protect the surface. These coatings enhance the trim's wear resistance and provide additional protection against corrosion and cavitation. In some cases, these coatings can also offer improved performance in extreme temperature or pressure conditions.

5. Regular Maintenance and Inspection

Regular maintenance and inspection are essential to ensuring the long-term reliability of control valves. Periodic checks of valve sealing performance, flow control accuracy, and internal wear can help identify issues before they lead to failure. Timely repairs or replacements of worn parts can prevent system downtime and avoid costly failures.

6. Control of Operational Environment

The operational environment of the valve, such as high temperatures, high pressures, or corrosive atmospheres, greatly influences the rate of trim wear. In harsh environments, careful material selection is necessary, and special designs or protective measures, such as insulation or corrosion-resistant coatings, should be used to reduce wear.

Conclusion

Control valve trim wear is a long-term and gradual process that can significantly impact the performance and lifespan of the valve, especially in high-temperature, high-pressure, or corrosive conditions. By understanding the causes, types, and countermeasures for wear, effective strategies can be employed during the design, material selection, and maintenance of control valves to reduce wear. Regular maintenance and timely repairs are crucial for ensuring the continuous and reliable operation of flow control systems. Through careful design, material selection, and operational controls, the risk of trim wear can be minimized, ensuring the stability of the control valve and the entire system.
