Basic Knowledges of Labyrinth Control Valves
In contemporary industry, the precise management of high-pressure fluids stands as a paramount necessity. Labyrinth control valves, owing to their distinct design and dependable performance, play a pivotal role in this domain. This article delves into the principles, attributes, and extensive applications of labyrinth control valves.
1. Principles of Labyrinth Control Valve
At the core of labyrinth control valves lies the principle of multi-stage pressure regulation achieved through a labyrinthine core assembly. This design dictates the fluid to navigate through a series of labyrinthine pathways, affording absolute control over fluid velocity and effectuating a staged pressure reduction. The resistance encountered in these labyrinthine pathways curtails fluid velocity, ensuring that, through multi-stage pressure reduction, fluid pressure remains above the saturation vapor pressure, thus preempting cavitation and nullifying potential safety hazards.

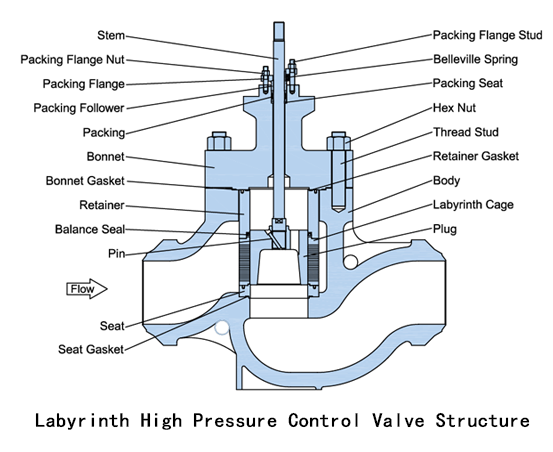

Constructed from multiple labyrinthine disc plates bonded under specialized conditions, the labyrinthine core assembly forms numerous channels through precise machining, each channeled through a sequence of right-angle turns to offer fluid resistance. Tailored to user specifications and process parameters, varying quantities and specifications of labyrinth paths can be meticulously selected to govern fluid velocity and pressure, thus facilitating precise fluid regulation.
2. Attributes of Labyrinth Control Valve
Labyrinth control valves boast several distinctive features that distinguish them in the realm of high-pressure fluid regulation. Firstly, the labyrinthine sleeve comprises multiple coaxially arranged cylindrical disc plates, each adorned with labyrinthine pathways. By configuring diverse specifications of labyrinth paths and layering them, the collective flow passage undergoes subdivision into myriad throttling passages, thereby facilitating forced fluid throttling and staged pressure reduction.
Moreover, labyrinth control valves adopt a balanced sleeve valve core, ensuring minimal leakage and suitability across various operational scenarios prone to blockage-induced cavitation. Additionally, their structure is engineered for swift disassembly, facilitating maintenance, while the individualized case design of the valve core guarantees precise flow control and stringent shut-off characteristics, thus catering to diverse user requisites.
3. Applications of Labyrinth Control Valve
Labyrinth control valves find extensive utilization across an array of industries, notably in power generation, metallurgy, petrochemicals, and other sectors grappling with cavitation, noise, and vibration issues in high-temperature and high-pressure control environments. As the latest iteration of control valves with elevated technological prowess, labyrinth control valves have effectively mitigated these challenges and are deployed in critical scenarios such as boiler feedwater temperature reduction, minimum flow control for water pumps, and other flow regulation applications, thereby underpinning industrial productivity.
In conclusion, labyrinth control valves, characterized by their distinctive design principles, notable attributes, and versatile applications, emerge as integral components in high-pressure fluid regulation. Their resilience against cavitation and precision flow control capabilities ensure exceptional performance across diverse operating conditions, thereby guaranteeing the safe and stable operation of industrial processes. With continuous technological advancements and expanding application scopes, labyrinth control valves are poised to assume a more prominent role in the future, further advancing industrial development.
