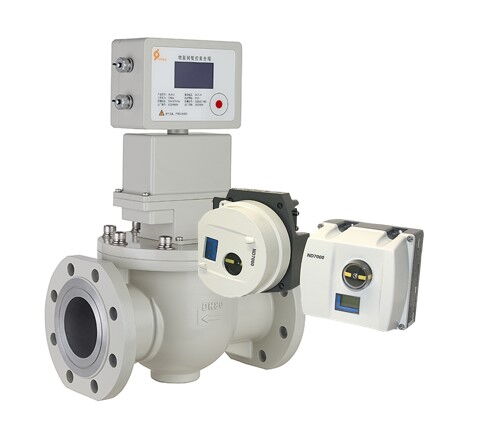

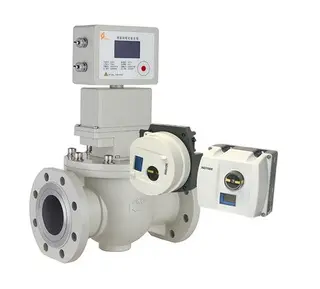

In modern industrial automation systems, intelligent control valve positioners play a crucial role. They precisely control the opening and closing states of valves, optimizing process control and system performance. However, during practical use, various calibration and operational issues may arise. To ensure that intelligent control valve positioners operate stably and efficiently, it is essential to understand and address these issues. This article will explore common calibration problems and their solutions to help users better handle challenges in real-world applications.

Calibration Issues


Calibrating intelligent control valve positioners is a key step to ensure precise valve control. Typically, this process can be completed using the automatic calibration function on the handheld operator, but sometimes calibration failures occur. The following methods can help resolve these issues.

1. Automatic Calibration Failure


If automatic calibration fails, try using the manual calibration function on the handheld operator. Manual calibration provides more detailed adjustment steps, and often, performing manual calibration successfully can make automatic calibration smoother.

2. Manual Calibration Steps


Enter the manual calibration mode on the handheld operator and follow the instructions in the device manual for adjustments.
Ensure each adjustment step meets the requirements to improve the success rate of automatic calibration.

Both Automatic and Manual Calibration Failures


When both the automatic and manual calibration of the smart control valve positioner fail, it usually indicates a more complex issue. To effectively resolve this situation, a systematic investigation of potential fault sources is necessary. The following are detailed steps for troubleshooting.

1. Pneumatic System Inspection


Air Source Stability: Check if the pressure and flow of the air source are stable. Unstable air pressure may lead to inaccurate responses from the control valve positioner.
Airflow Path: Inspect the pneumatic lines for blockages or leaks to ensure unobstructed airflow. Blockages or leaks can affect the pneumatic system's performance and, consequently, the calibration results.

2. Control Valve Issues


Smooth Operation: Check if the control valve operates smoothly during switching. Sticking issues may arise due to improper valve installation, internal part wear, or foreign objects.
Installation Check: Ensure that the control valve is installed according to specifications to avoid operational issues caused by installation problems.

3. Parameter Settings


Parameter Consistency: Verify that the parameters set in the intelligent control valve positioner (e.g., model, size) match those of the actual control valve. Valve model and size must be compatible to ensure correct positioning by the positioner.
Model Matching: Pay special attention to model matching, as the model includes various pre-set parameters. Incorrect model settings can prevent the positioner from operating correctly.

4. Feedback Rod Position


Position Adjustment: Check if the feedback rod is correctly installed. The locking nuts on the feedback rod may loosen due to transport or operation, causing misalignment. Adjust the feedback rod position through the positioning holes.
Position Verification: Ensure the feedback rod is accurately positioned. Even though intelligent control valve positioners have strong adaptability, significant deviations in feedback rod position may still cause calibration failures.

Leakage Issues


Although control valves are typically calibrated and tested rigorously before shipment, leakage issues may still occur after field installation. The following methods address leakage problems.

1. For Air-to-Open Valves


Signal Input: Input a 20mA signal to set the control valve to a fully closed position.
Rod Adjustment: Adjust the valve rod using the two locking nuts to move it downward until it cannot move further. Ensure the valve is fully closed.
Signal Reinput: Input a signal of approximately 12mA and adjust the rod by one-quarter turn downward for precise adjustment. This ensures minimal leakage in the valve's mid-position.

2. For Air-to-Close Valves


Signal Input: Input a 4mA signal to set the control valve to a fully closed position.
Rod Adjustment: Adjust the valve rod using the two locking nuts to move it downward until it cannot move further. Ensure the valve is fully closed.
Signal Reinput: Input a signal of approximately 12mA and adjust the rod by one-quarter turn downward to ensure proper valve opening.
These adjustment methods have been proven effective in various practical applications to address issues with large leakage preventing control loops from operating. These methods are also applicable to non-intelligent control valve positioners.

Through a detailed discussion of calibration and troubleshooting methods for intelligent control valve positioners, we see that while various issues may arise in practical applications, most problems can be effectively resolved through systematic inspection and proper adjustment methods. Whether dealing with automatic calibration failures, parameter mismatches, or feedback rod misalignments, taking appropriate steps to diagnose and adjust typically restores the normal function of the control valve system. For complex or difficult-to-resolve issues, promptly contacting professional technicians for in-depth inspection and repair can help ensure the long-term stable operation of the valve system. We hope the solutions and tips provided in this article will assist you in improving system reliability and efficiency.
