Characteristics and Advantages of Rotary Control Valves

Control valves are important components in industrial control systems. They are mainly used to regulate parameters such as fluid flow, pressure, and temperature. This ensures the stable operation of systems. Control valves are divided into two main types: linear control valves and rotary control valves. Linear control valves, such as gate valves, globe valves, and diaphragm valves, use linear motion to control fluid flow. Rotary control valves use rotating components, like rotary discs or spheres, to adjust flow. The typical design for rotary control valves is a 1/4-turn valve, which rotates 90 degrees. Rotary control valves are known for their wide range of applications, high control accuracy, and long service life.

Adjustable Range and Precision Control

The adjustable range and precision of a control valve are critical to system performance. Rotary control valves typically offer a larger adjustable range of about 150:1, compared to 30:1 in traditional shut-off valves. This means rotary control valves can provide finer flow regulation.

For example, if the maximum flow is 1000 L/min, a shut-off valve can control the flow down to 30 L/min. A rotary control valve can adjust the flow precisely to under 10 L/min. This broader adjustable range allows rotary control valves to meet precise control requirements. It is particularly important in applications where flow accuracy is crucial. It helps improve stability and repeatability in process control, reducing the risk of non-compliant products.

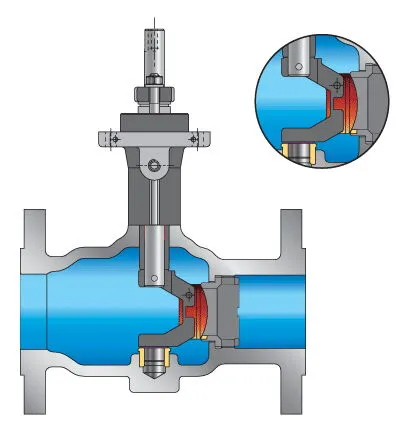

Advantages of Eccentric Rotary Valve Design

Eccentric rotary valves have a special design that enhances their performance. The most notable feature is the V-shaped valve plug. This design improves flow control compared to traditional round valve plugs. The V-shaped plug allows more precise control at low flow rates. When the flow is high, the valve opens almost fully, close to the pipe diameter. This ensures better flow control under different operating conditions.

Eccentric rotary valves also have larger actuator travel, typically over 2 inches. In contrast, traditional linear valves have actuator travel of 3/4” to 7/8”. The larger travel in rotary valves allows for more precise flow control. It also helps maintain higher stability and accuracy in complex fluid conditions.

Improved Performance and Reduced Costs

The high adjustable range of rotary control valves allows them to provide precise flow ratio control under various conditions. This makes them ideal for systems that need high-precision adjustments. For example, in applications where flow ratios must be controlled according to a formula, rotary control valves perform exceptionally well. Compared to traditional linear or shut-off control valves, rotary control valves improve system performance and lower operational costs over their lifecycle.
In addition, the wide adjustable range allows rotary control valves to meet stricter shut-off standards. This improves the cost-effectiveness of the entire system. The use of metal valve seats and special materials that resist high temperatures and corrosion extends the service life of rotary control valves. This further reduces maintenance costs.

Solving External Leakage and Cavitation Issues

Linear control valves can cause leakage due to the movement of the valve stem in and out during operation. This is especially true with frequent use, and it can lead to unwanted products entering the system. It can even result in the release of volatile substances, creating safety risks. Rotary control valves avoid this problem. Their valve stem only rotates, and does not move in and out. This prevents damage to the packing and avoids external leakage.

Cavitation is a common issue, particularly in high-pressure or high-flow conditions. Cavitation can damage pipelines, create noise, and disturb metering systems. The robust design of rotary control valves reduces cavitation. The valve plug absorbs excess energy, reducing the impact of water hammer and cavitation. This ensures stable operation of the system.

Optimizing Flow Capacity and System Costs

Rotary control valves generally have higher flow capacity than linear control valves of the same size. They can handle 2 to 3 times more flow than linear valves. This means rotary control valves can process larger flows with the same pipe size. It reduces the need for larger pipes and system modifications, lowering construction costs and maintenance expenses. This advantage makes rotary control valves an ideal replacement for traditional shut-off valves in many industrial applications. They are especially beneficial in systems where high flow control is required and space is limited.

Some rotary control valves are designed with flange-to-flange connections and include bolts for installation. This design reduces installation costs compared to traditional shut-off valves, further lowering overall system investment.

Maintenance and Service Life

Rotary control valves have a simple design. Their rotational motion is smoother than linear motion, which reduces wear during extended use. This leads to lower maintenance requirements. The valve seats in rotary control valves are made from metal, and their sealing design is excellent. This reduces external leakage and internal damage, extending the valve's service life.

Rotary control valves typically use low-lag, high-thrust pneumatic actuators. These actuators improve control precision and response speed compared to traditional electric or hydraulic actuators. The high stability of these actuators allows rotary control valves to maintain good regulation performance over long periods. This reduces the frequency of maintenance and minimizes the risks of equipment failure during production.

Conclusion

Rotary control valves offer high adjustable ratios, precise flow control, excellent anti-cavitation performance, and stable long-term operation. They are essential components in modern industrial control systems. Compared to traditional linear control valves, rotary control valves have higher flow capacity and longer service life. These advantages make rotary control valves ideal for applications requiring precise flow regulation and high reliability. Their simple structure, easy maintenance, and improved valve seat and actuator designs help reduce external leakage, cavitation, and other issues. This enhances system efficiency. Rotary control valves also lower system construction and operational costs, making them the best choice for flow control and precise ratio applications in modern process industries.
