Choosing the Optimal Pneumatic Control Valve Operation Modes

Pneumatic control valves are a critical component in industrial automation control systems, widely used in fluid systems to precisely regulate the flow, pressure, and temperature of fluids, ensuring the stability and safety of the production process. The operation modes of pneumatic control valves are mainly divided into air-to-open and air-to-close. The rational selection of the valve's operation mode is of great significance for ensuring production safety, improving product quality, and reducing economic losses.

Pneumatic Control Valve Operation Modes

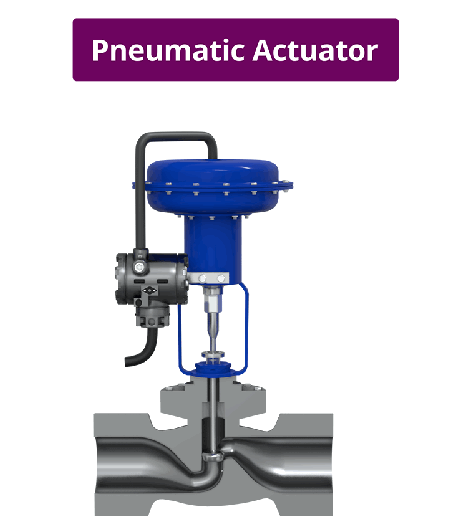

Pneumatic control valves are key components in industrial automation control systems, primarily used for regulating the flow, pressure, and temperature of fluids. The operation mode of the pneumatic control valve determines its performance and application effect under different operating conditions. There are two main operation modes: air-to-open and air-to-close.

1. Air-to-Open Control Valves

In this type of valve, when the signal pressure increases, the valve opening also increases. When there is no signal pressure, the valve is fully open. Air-to-open control valves are suitable for applications that require the valve to remain fully open when the signal pressure fails.

2. Air-to-Close Control Valves

In contrast to air-to-open valves, air-to-close control valves reduce the valve opening when the signal pressure increases. When there is no signal pressure, the valve remains fully closed. Air-to-close control valves are suitable for applications that require the valve to remain fully closed when the signal pressure fails.

Key Factors in Selecting Control Valve Operation Modes

Selecting the operation mode of the control valve (air-to-open or air-to-close) is a crucial step in ensuring the stability and safety of the industrial process. Different operation modes are suitable for different operating conditions and application scenarios. The following are key factors to consider when choosing the operation mode of the control valve.

1. Personal and Equipment Safety

When selecting the operation mode of the control valve, the safety of personnel and equipment should be the primary consideration. Different valve states may have different impacts on the production process, especially in the event of system failure or signal interruption.

Air-to-Open Valves: Maintain a fully open state when the signal pressure is interrupted, suitable for applications that require constant flow without signal pressure. For applications involving flammable, explosive, or toxic media, air-to-open valves may lead to medium leakage, making air-to-close valves a safer choice in such cases.

Air-to-Close Valves: Maintain a fully closed state when the signal pressure is interrupted, suitable for applications that require prevention of medium leakage or blockage when there is no signal pressure. For example, when handling materials that are prone to crystallization or solidification, air-to-close valves can prevent blockage in the valve.

2. Medium Characteristics

The characteristics of the medium are a crucial factor in selecting a control valve. Different media have different requirements for valve performance, materials, and design. A correct understanding of medium characteristics can help ensure the reliability and efficiency of the valve in practical applications.

Flammable, Explosive, or Toxic Media: Choosing air-to-open control valves ensures that the valve is fully closed when the signal pressure is interrupted, reducing the risk of medium leakage. If the valve is open, it may pose safety hazards, so air-to-close valves are a more appropriate choice in this case.

Materials Prone to Crystallization or Solidification: These materials are prone to crystallization or solidification inside the valve, leading to blockage. To avoid this, air-to-close control valves should be selected to keep the valve fully closed when the signal pressure is interrupted, preventing material blockage.

3. Quality Assurance and Economic Loss

The operation mode of the control valve directly affects the quality of the production process and economic benefits.

Quality Assurance: Choosing the appropriate control valve operation mode can prevent a decline in product quality. For example, if signal pressure interruption causes the valve state not to meet process requirements, it may affect product quality. In this case, a valve type that can maintain process stability when signal pressure fails is needed.

Economic Loss: The valve state should minimize the waste of raw materials and semi-finished products when signal pressure is interrupted. Choosing the right operation mode can prevent material waste and production losses caused by improper valve states.

4. Fail-Safe Positioning Function

Fail-safe positioning is an important feature of control valves when the system fails or signal pressure is interrupted.

Air-to-Open Valves: Maintain a fully open state when signal pressure is interrupted. This design is suitable for applications that require constant flow in the event of a fault, but it is necessary to ensure that flow control does not lead to safety issues.

Air-to-Close Valves: Maintain a fully closed state when signal pressure is interrupted. This design is suitable for applications that require prevention of fluid leakage or material blockage in the event of a fault, effectively ensuring system safety.

5. Process Requirements

When selecting the operation mode of the control valve, decisions should be based on specific process requirements.

Process Stability: Process requirements determine whether the valve should be open or closed when signal pressure is interrupted. For example, some processes require the valve to remain fully open to avoid production interruptions in the event of signal interruption; others require the valve to remain fully closed to prevent a decline in product quality or production accidents.

6. System Compatibility

The selection of the control valve also needs to consider compatibility with the existing control system.

Control System: Ensure that the selected control valve matches the control system, instruments, and other components to ensure the coordination and stable operation of the overall system. The selected valve type should be able to work well with the signals and control mechanisms in the system.

The selection of the operation mode of pneumatic control valves is a key link in ensuring the stability and safety of the production process. By comprehensively considering factors such as personal and equipment safety, medium characteristics, quality assurance, and economic losses, the appropriate choice can be made. Air-to-open and air-to-close control valves each have their advantages and disadvantages, and the specific choice should be determined based on the needs and process requirements in practical applications. The rational selection of the operation mode of the control valve can not only improve production efficiency but also reduce potential risks and losses, ensuring the safety and stability of the production process.
