Common Failures & Solutions for Pneumatic Diaphragm Control Valves
On this page

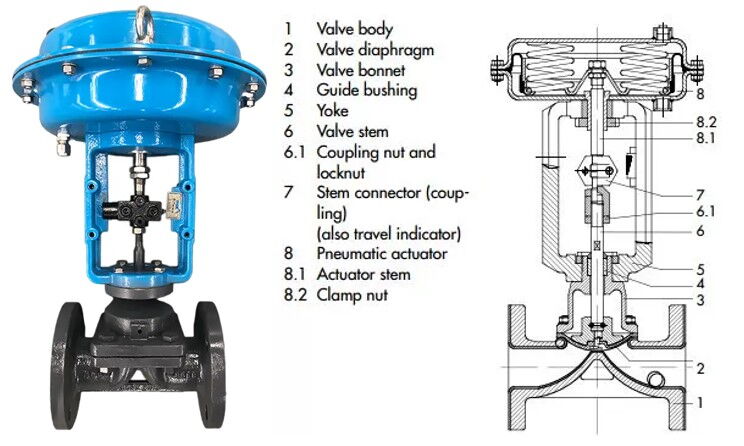

Pneumatic diaphragm control valves play a crucial role in industrial automation control systems, finding wide applications in sectors such as petrochemicals, power generation, pharmaceuticals, and food processing. The performance of these control valves directly impacts process stability, efficiency, and safety. Therefore, a thorough analysis of the factors influencing their performance and the development of effective solutions are essential for ensuring smooth industrial operations. This article systematically explores the common failures of pneumatic diaphragm control valves through field investigations, structural analysis, and experimental validation.
Major Causes of Failure
In-depth analysis reveals several key factors contributing to the primary failures of pneumatic diaphragm control valves. These factors not only disrupt the normal operation of the valves but also directly affect the efficiency and stability of the entire control system. Below, we discuss these failure causes and their impact on valve performance, laying the groundwork for subsequent solutions.
1. Positioner Failures
Excess Moisture in Air Supply: Pneumatic valve positioners rely on mechanical force balance principles and have small nozzle diameters that are easily blocked by moisture, oil, and dust in the air supply. Blockages can lead to positioner failure, impairing the control valve's ability to execute precise switch controls, thereby affecting overall system regulation.
Zero Drift: In harsh working environments, the spring's elasticity can change with temperature and humidity fluctuations, leading to zero drift in the positioner. This not only affects the amplifier's output stability but also results in sluggish valve response and a noticeable decline in adjustment quality.
Loose Feedback Rods: Due to the complex mechanical structure of the positioner, which includes multiple moving parts, feedback rods can easily loosen under temperature changes or vibrations. This significantly impacts the accuracy of the valve feedback and, consequently, flow regulation.
2. Diaphragm Rupture
Excess Moisture in Air Supply: Impurities such as moisture, oil, and dust in the air supply can block the interior of the amplifier, ultimately causing diaphragm rupture and affecting valve operation. A ruptured diaphragm not only leads to system leaks but also results in loss of control.
Excessive Air Supply Pressure: If the quality of the air filter and pressure regulator is substandard, it may fail to effectively control air supply pressure, causing the diaphragm to endure excessive impact and potentially rupture, damaging the equipment.
3. Valve Core Failures
Aging Seals: Quality issues with the valve can lead to seal aging, allowing medium infiltration into the valve seat (core). This infiltration affects sealing and flow regulation capabilities, resulting in leaks or unstable flow.
Tar Accumulation: Tar and impurities in gas can accumulate on the valve core, hindering its movement. This accumulation not only disrupts fluid flow but can also cause valve jamming, impacting regulation precision.
Solutions for Failure Handling
To address the common failures encountered in pneumatic diaphragm control valves, several targeted solutions have been proposed. These aim to enhance valve performance and reliability, ensuring stable operation under various conditions.
1. Improvements to Valve Positioners
Use Nitrogen as the Instrument Air Source: Nitrogen is cleaner and drier than compressed air, containing no water, oil, or dust. Implementing water and dust removal devices in the air supply lines, such as pneumatic triplets, can ensure air purity, enhancing valve response speed and accuracy.
Regular Calibration of Positioner Zero Point: Routine calibration can promptly identify and correct zero drift issues, maintaining stable zero points under various working conditions to improve adjustment accuracy.
Adoption of Smart Positioners: Smart positioners, which operate on electric signals, significantly differ from traditional ones and can overcome their performance shortcomings. They typically offer higher adjustment precision, reliability, and adaptability, effectively enhancing overall system performance.
2. Diaphragm Protection Measures
Ensure Clean and Dry Air Supply: Regularly inspect and replace air filter pressure regulators to effectively filter impurities and prevent moisture and oil from entering the system. Adjusting air supply pressure to 140 kPa ± 5 kPa can reduce diaphragm pressure and ensure proper operation within normal limits.
Increase Maintenance Frequency: Regularly check the diaphragm's condition, replace damaged diaphragms promptly, and conduct thorough cleaning of the system to ensure the valve remains in optimal working condition.
3. Core Maintenance and Care
Replace Seals: Timely replacement of aging or damaged seals is crucial to ensure sealing effectiveness. Additionally, check the fit between the valve seat and core to eliminate gaps, enhancing sealing performance.
Regularly Remove Tar Accumulation: Periodic cleaning of the valve core prevents dirt accumulation, ensuring free movement. Additionally, introducing air purging before and after the control valve can help prevent tar and residue from affecting the core's operation.
Conclusion
In summary, analyzing the factors affecting the performance of pneumatic diaphragm control valves and proposing corresponding solutions can significantly enhance their operational efficiency and reliability. Continuous maintenance and appropriate improvement measures will ensure stable valve operation in complex environments, thereby increasing overall system efficiency and safety. Future efforts should focus on researching and applying new materials and technologies to further improve the performance and lifespan of pneumatic diaphragm control valves, meeting the increasingly stringent demands of industrial applications.
