Comparing Linear and Rotary Control Valves in Industrial Automation
On this page

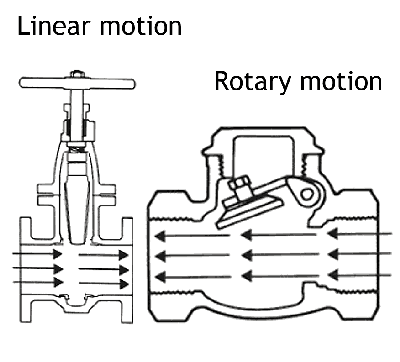

In the field of industrial automation, control valves are one of the key components for achieving precise control. This article will delve into two main types of control valves: linear control valves and rotary control valves. Each has unique design features and application scenarios, playing a crucial role in optimizing industrial processes and improving efficiency. Let's begin to explore the internal structure, performance characteristics, and suitability of these control valves in various industrial applications.
Linear Control Valves

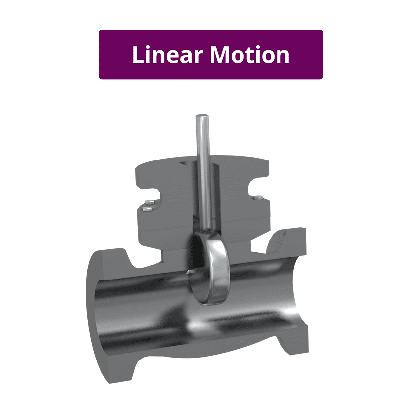

Linear control valves are widely used in industrial automation systems, characterized by the reciprocating motion of the valve core in a straight line. This type of motion is suitable for various control requirements, especially in situations that demand precise regulation and high flow handling. Due to its complex flow path design, the application and performance characteristics of linear control valves manifest different advantages and challenges in specific uses.
1. Types and Applications
The valve core of linear control valves moves back and forth in a straight line, and its flow path design is usually complex. This type of control valve includes the following common types.
Single-seat control valve: With a simple structure, it is typically used in medium and low-pressure situations, offering high control precision suitable for applications with small flow rates, such as water treatment and air flow control.
Double-seat control valve: Equipped with two valve seats, it is suitable for high-flow and high-pressure differential applications. Its excellent control performance is often seen in oil, chemical, and other industries that require high flow control.
Sleeve control valve: Improves flow capacity through sleeve design, suitable for high-flow applications. Ideal for regulating high-volume liquids or gases, reducing fluid disturbance.
Three-way control valve: Used for flow distribution or mixing, commonly seen in the regulation of multiple fluids, such as flow control in reactors.
Angle control valve: The valve core is at a right angle, suitable for space-limited applications, effectively utilizing limited space, and commonly used in compact control systems.
2. Flow Path Design and Anti-Clogging Performance
Complex flow path: The fluid flow path of linear control valves is usually complex, often taking an "S" shape or other zigzag forms. This design causes the medium to turn frequently during the flow process, which is prone to sedimentation and clogging.
Poor anti-clogging performance: Due to the complex flow path and the presence of many dead zones, the medium is prone to sedimentation in these areas, leading to valve clogging or jamming, thereby affecting the control performance.
3. Structure and Weight
Complex structure: The internal structure of linear control valves is relatively complex, with larger valve body sizes, suitable for occasions with high requirements for flow path design.
Heavier weight: The complex structure and larger valve body size make the weight of linear control valves heavier, not suitable for space-limited applications.
4. Sealing Performance
Poor sealing performance: Due to the up and down movement of the valve core, the sealing performance of linear valves is relatively poor. Although high-performance sealing materials can improve the sealing performance, it is still not as good as rotary control valves overall.
5. Pressure Differential Bearing Capacity
Single-seal valve: Under the flow-open state, the pressure differential can easily push the valve core open, so the allowed pressure differential is relatively small.
Double-seal valve: Theoretically allows for a larger pressure differential, but due to the unequal sizes of the upper and lower valve seats, there may be leakage risks, especially noticeable at high temperatures.
Rotary Control Valves

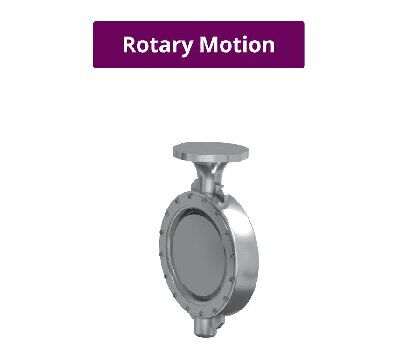

Rotary control valves are known for the rotational motion of the valve core within a 90-degree range. This design makes rotary control valves excellent in flow regulation, especially in applications that require a simple flow path and high anti-clogging performance. The structural and functional characteristics of rotary control valves make them an ideal choice for many industrial applications.
1. Types and Applications
The valve core of rotary control valves rotates within a 90-degree range, and its flow path design is relatively simple, mainly used for flow regulation. The main types include:
Butterfly control valve: The valve flap is similar to a butterfly wing, suitable for large flow and low pressure differential applications. Widely used in HVAC, industrial process control, and other fields, with good flow regulation capabilities.
Ball control valve: Controls the flow by rotating the ball, with good sealing performance, suitable for high pressure and high-temperature environments. Commonly used in the transportation and regulation of oil, chemicals, and natural gas.
Eccentric rotary control valve: Achieves precise flow regulation through a special eccentric design, suitable for applications requiring high precision control, such as pharmaceutical production and high-precision chemical reactions.
Plug control valve: The valve core rotates within a 90-degree range to cut off and regulate the fluid. Due to its simple structure, it is commonly used in water treatment and gas control systems.
2. Flow Path Design and Anti-Clogging Performance
Simple flow path: The flow path design of rotary control valves is relatively simple, with a direct medium flow path, which is not prone to sedimentation, and has good anti-clogging performance.
Superior anti-clogging performance: Due to the simple flow path design, there is less space for medium sedimentation, reducing the risk of clogging. Therefore, rotary control valves perform excellently in applications that require high anti-clogging performance.
3. Structure and Weight
Simple structure: The design of rotary control valves is relatively simple, with a compact internal structure and small size.
Lighter weight: Due to the simple structure, the weight of rotary control valves is lighter, suitable for space-limited or lightweight applications.
4. Sealing Performance
Superior sealing performance: The rotational movement of the valve core reduces the possibility of medium leakage. Rotary control valves can usually use higher-performance packing, and their sealing performance is usually 2-3 times higher than that of linear control valves.
5. Pressure Differential Bearing Capacity
High pressure differential bearing capacity: Rotary control valves, especially ball valves, have a good contact between the valve core and the sealing surface, resulting in less leakage. The rotational design of the valve core allows it to withstand a larger pressure differential.
Comprehensive Comparison
When choosing a control valve, understanding the characteristics of linear and rotary control valves is key. Here is a comprehensive comparison analysis of their main aspects.
Flow path design: The flow path design of linear control valves is relatively complex, which can easily lead to medium sedimentation and clogging; while the flow path of rotary control valves is simple, reducing the possibility of sedimentation, and has better anti-clogging performance.
Structure and weight: The structure of linear control valves is complex, with larger valve body sizes and heavier weight; rotary control valves have a simple structure, compact valve body, and lighter weight.
Sealing performance: The sealing performance of linear control valves is relatively poor, but can be improved with high-performance packing; the sealing performance of rotary control valves is superior, and they can use higher-performance packing.
Pressure differential bearing capacity: The pressure differential bearing capacity of linear control valves depends on the sealing structure, while rotary control valves can usually withstand a larger pressure differential, especially in the application of ball valves.
Through the above analysis, we can see that linear and rotary control valves each have their advantages and limitations. Choosing the right control valve depends not only on specific industrial application requirements but also on fluid characteristics, system pressure, space limitations, and maintenance costs. Whether it is in situations that require high flow control and complex flow path design, or in applications that pursue a simple flow path and high anti-clogging performance, understanding the characteristics of these control valves is key to ensuring the best performance of the system.
