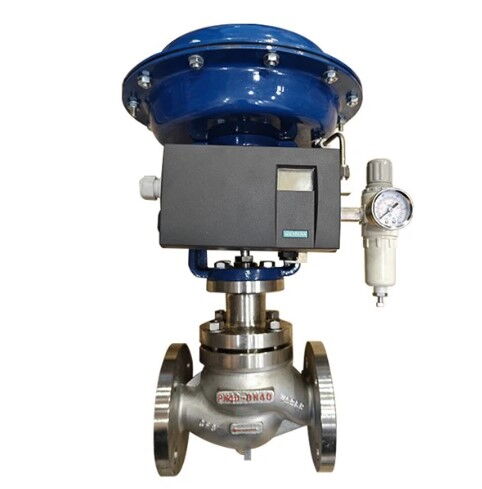

Control Methods of Pneumatic Proportional Control Valves

Pneumatic proportional control valves play a crucial role in industrial automation control. They are widely used in applications requiring precise control of gas or liquid flow, such as in the chemical, petroleum, pharmaceutical, and food processing industries. These control valves adjust their opening in response to external control signals, thereby achieving precise control over the flow rate or pressure of the medium. Below are several common control methods for pneumatic proportional control valves and their characteristics.

Analog Signal Control

Analog signal control is a more common method in pneumatic proportional control valves. This method typically uses a 4-20mA current signal or a 0-10V voltage signal as the input signal to control the valve opening. During operation, the control system outputs an analog signal, which is converted by the valve's positioner into a corresponding pneumatic signal. This pneumatic signal then drives the actuator to adjust the valve opening, thus changing the medium flow rate.

Advantages of analog signal control include:

Simplicity: The method is relatively straightforward to implement and is widely applicable to traditional industrial control systems.
Compatibility: Most industrial equipment and control systems support analog signal control, facilitating integration.
Cost-effectiveness: Analog signal systems are usually economical, suitable for small and medium-sized enterprises.

However, its disadvantages include:

Limited accuracy: Analog signals may be subject to interference, affecting control precision.
Signal attenuation: Long-distance transmission may result in signal attenuation issues.

Digital Signal Control

Digital signal control utilizes digital communication protocols (such as PROFIBUS, DeviceNet, etc.) to transmit control signals. This method sends control commands to the valve's digital interface module via digital signals, which then converts the digital signals into pneumatic signals to drive the actuator.

Advantages of digital signal control include:

High precision: Digital signal transmission has high accuracy and stability.
Remote monitoring: Supports remote monitoring and diagnostics, suitable for modern automated systems.
Flexibility: Enables complex control strategies and data management.

Its disadvantages include:

System complexity: Configuration and maintenance of digital signal systems are more complex, requiring specialized knowledge.
Higher cost: Compared to analog signal control, the initial investment in digital signal systems is higher.

Position Feedback Control

Position feedback control is a closed-loop control system that includes feedback on the actual valve opening. Pneumatic proportional control valves are usually equipped with a position sensor to monitor the actual valve opening in real time and feed this information back to the control system. The control system adjusts the valve opening based on the deviation between the feedback signal and the target value, thus achieving precise control.

Advantages of position feedback control include:

High control precision: Capable of adjusting the valve opening in real time to ensure precise control effects.
Adaptive ability: Can automatically compensate for errors and changes in the system.

Its disadvantages include:

System complexity: Requires additional feedback components, increasing system complexity and cost.
High maintenance requirements: Position sensors need regular maintenance and calibration.

Fieldbus Control

Fieldbus control is based on fieldbus technology (such as CANopen, EtherCAT, etc.), enabling bidirectional data exchange between the control system and the control valve through a fieldbus network. This method reduces wiring complexity and improves the scalability and maintainability of the system.

Advantages of fieldbus control include:

Simplified wiring: Reduces the extensive wiring in traditional control systems, enhancing the convenience of installation and maintenance.
Strong scalability: Suitable for large-scale and distributed control systems.
Data exchange: Supports bidirectional data exchange, facilitating system integration and optimization.

Its disadvantages include:

Complex system configuration: Requires setting up and managing the fieldbus network, with higher technical requirements.
Cost issues: Higher initial investment, especially in large systems.

Intelligent Control

Intelligent control combines advanced control algorithms, such as PID control, fuzzy logic control, etc. The intelligent control system dynamically adjusts control strategies based on preset target values and real-time feedback information to achieve optimized control effects. It can adapt to complex working condition changes, providing fine and flexible control performance.

Advantages of intelligent control include:

Optimized control: Capable of handling complex control tasks, providing more precise adjustments.
Strong adaptability: Can adapt to changing working conditions and complex operating environments.
High flexibility: Supports various control algorithms, adjustable according to actual needs.

Its disadvantages include:

System complexity: Requires advanced control algorithms and computing power, making system configuration more complex.
Higher cost: Intelligent control systems are more expensive, suitable for high-end application scenarios.

Different control methods provide a variety of application scenarios and functional choices for pneumatic proportional control valves. Analog signal control is widely used in traditional systems due to its simplicity; digital signal control offers higher precision and control options, suitable for modern systems; position feedback control ensures high control precision and can automatically compensate for errors; fieldbus control improves system scalability by reducing wiring complexity; intelligent control provides flexible and optimized control performance through advanced algorithms. Choosing the appropriate control method is crucial for achieving the best control effects.
