Control Valve Flow Directions: Flow to Open vs. Flow to Close

Control valves are essential components in regulating fluid flow, and the flow direction through these valves significantly affects their performance, lifespan, and the overall stability of the control system. The direction of fluid flow through a control valve is typically indicated by an arrow on the valve body. When installing a control valve, it is crucial to ensure that the arrow aligns with the flow direction of the medium. However, depending on the operating conditions in different production environments, the requirements for valve flow direction may vary. The selection of the correct flow direction not only influences the valve's working characteristics but also plays a direct role in ensuring the proper functioning and optimization of the control system.

Types of Control Valve Flow Directions

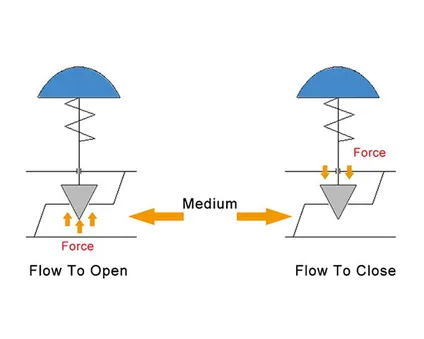

Control valves can generally be divided into two main types based on the direction of fluid flow: Flow to Open (FTO) and Flow to Close (FTC).

1. Flow to Open (FTO)

In Flow to Open control valves, the fluid flows from the smaller end of the valve plug to the larger end. This flow direction exerts pressure on the valve plug, which moves in the direction of the opening. The characteristics of Flow to Open valves include:

The force on the valve plug primarily results from the pressure of the fluid, pushing the plug toward the open direction.
During operation, the fluid's impact and velocity can cause erosion on the sealing surface of the plug, leading to wear at the valve seat and the base of the plug.

2. Flow to Close (FTC)

In Flow to Close control valves, the fluid flows from the larger end of the valve plug to the smaller end. The pressure in front of the valve pushes the plug toward the seat, causing the valve to close. The features of Flow to Close valves are:

The force on the valve plug is directed toward the valve seat, providing a tendency to close the valve.
The erosion caused by the fluid's impact occurs mainly in the downstream area, not on the sealing surface, thus offering better protection to the valve seat and the plug base, which extends the valve's lifespan.

Impact of Flow Direction on Valve Lifespan

The choice of flow direction has a profound effect on the valve's performance and lifespan, particularly in high-pressure and high-velocity applications. Flow to Open and Flow to Close valves perform differently under varying operating conditions.

1. Extending the Life of Small-Bore High-Pressure Valves

For small-bore, high-pressure applications, converting a Flow to Open valve to a Flow to Close valve can significantly extend the valve's lifespan. In Flow to Open valves, cavitation and erosion concentrated at the valve plug's sealing surface cause considerable wear at the seat and plug base. By switching to a Flow to Close configuration, the erosion effects are redirected to the throttling area, protecting the sealing surfaces and base of the plug, thereby extending the valve's operational life.

2. Solutions for Insufficient Flow

In some cases, due to increased production demand or improper valve flow coefficient selection, a Flow to Open valve may not provide sufficient flow even when fully open. Converting a Flow to Open valve to a Flow to Close valve can increase flow by 10% to 15%, helping to meet the required flow temporarily and ensure the system operates normally.

Principles for Selecting Flow to Open vs. Flow to Close

Choosing the correct flow direction is based on the specific operating conditions. Each flow direction has its advantages and disadvantages, and the right choice depends on several factors.

1. For Complete Shutoff Applications

If the application requires a complete shutoff of the fluid flow, especially in cases where valve closure is critical, a Flow to Close valve should be chosen. Flow to Close valves provide stronger sealing force during closure, ensuring the medium is fully cut off and meeting safety requirements in the process.

2. High-Pressure Angle Valves

For high-pressure angle valves, cavitation is a significant issue, and the valve's lifespan may be shortened. Therefore, Flow to Close valves are typically recommended, as they redirect cavitation impacts to the throttling area, reducing damage to the sealing surfaces and improving the valve's durability and stability.

3. For Applications Requiring Tight Sealing

In environments requiring precise sealing, such as high-sealing applications, Flow to Open valves are more suitable. Flow to Open valves ensure that the fluid's force on the valve plug is more evenly distributed during operation, reducing the risk of damage to the sealing surface.

4. Applications Involving Slurries or High-Viscosity Fluids

In systems dealing with slurries, fluids containing solid particles, or high-viscosity fluids, a Flow to Close valve is recommended. This flow direction helps prevent sediment buildup and minimizes the risk of blockages within the valve's flow path.

Comparison of Flow Capacities: Flow to Open vs. Flow to Close

Flow to Close valves typically offer 10% to 15% higher flow capacity than Flow to Open valves. In some cases, when the flow from a Flow to Open valve is insufficient, switching to a Flow to Close configuration can temporarily resolve flow issues and meet system requirements.

Stability and Control Requirements after Changing Flow Direction

The stability of Flow to Close control valves tends to be lower, particularly at small valve openings, where oscillations may occur. To avoid this problem, it is recommended to maintain the valve's minimum opening between 30% and 40%. Additionally, to improve the stability of Flow to Close valves, it is advisable to use actuators with higher stiffness and, if necessary, incorporate a valve positioner.

Impact of Changing Flow Direction on the Control System

Changing the flow direction of a control valve will directly impact its flow characteristics and capacity, which may, in turn, affect the entire control system. When adjusting the flow direction, the following factors need to be carefully considered.

Flow Characteristics: Flow to Open and Flow to Close valves have different flow characteristics. Changing the flow direction may alter the system's regulation capability and response time.
Control Accuracy: The flow direction change could affect the valve's response time and accuracy, especially in systems with large load fluctuations. The altered flow direction may influence the control precision.

Conclusion

The flow direction of a control valve significantly impacts its performance, lifespan, and the stability of the control system. Both Flow to Open and Flow to Close configurations have their specific advantages and drawbacks, and the proper choice depends on factors such as operating conditions, medium characteristics, and flow requirements. Selecting the correct flow direction is crucial to ensuring the efficient and stable operation of the control system. When changing the flow direction, careful consideration of flow characteristics and stability is necessary to ensure the smooth functioning of the system.
