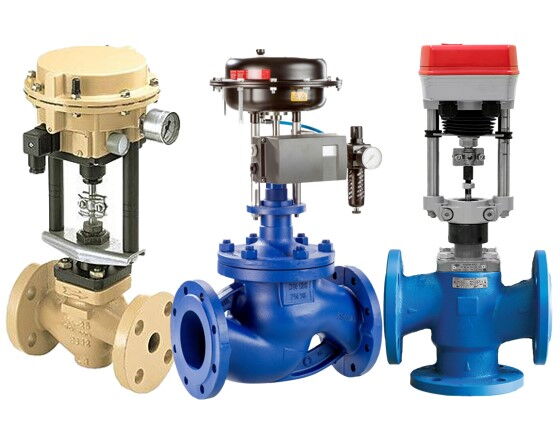

Control Valve Materials: Cast Steel, Gray & Ductile Iron

The choice of material is crucial in the application of control valves. Differences in strength, toughness, and corrosion resistance directly affect the control valve's performance and suitability for various environments. This article will compare gray cast iron, ductile cast iron, and cast steel, three materials for control valves, discussing their characteristics, applications, and economic factors to help users make informed choices.

Material Characteristics

When selecting a control valve, the properties of the material play a vital role in its performance. Different materials have varying mechanical properties, corrosion resistance, and applicable environments, which influence how the valve performs in specific applications. Below, we will explore the characteristics of gray cast iron, ductile cast iron, and cast steel to help users understand their advantages and disadvantages.

1. Gray Cast Iron Control Valves

Strength and Toughness: Gray cast iron has a tensile strength of about 30,000 psi and relatively low yield strength. While it performs well in some applications, it may not be ideal for high-pressure or high-temperature environments.
Corrosion Resistance: Gray cast iron can withstand certain acidic media, especially concentrated sulfuric acid, as its surface forms a protective passivation layer. However, it is not suitable for handling fluorine acid, strong bases, or hydrochloric acid, requiring careful use.
Application Environment: Gray cast iron valves are commonly used in HVAC, cooling water, and hot water systems, meeting strength and toughness needs under normal working conditions. Due to its low cost and stable performance, gray cast iron is widely chosen for water treatment and supply pipelines.

2. Ductile Cast Iron Control Valves

Strength and Toughness: Ductile cast iron has a tensile strength of up to 60,000 psi and a yield strength of 40,000 psi, significantly outperforming gray cast iron. With proper heat treatment, its tensile strength can rival that of forged carbon steel, making it suitable for higher pressure and temperature applications.
Machining Performance: While ductile cast iron's casting performance is not as good as gray cast iron, it has excellent weldability and machinability. Heat treatment can significantly improve its mechanical properties (400-1500 MPa), providing greater flexibility for various applications.
Elastic Modulus and Impact Toughness: Ductile cast iron has a higher elastic modulus than gray cast iron, showing good rigidity and suitability for dynamic load conditions. Its high impact toughness meets the demands of environments with significant vibrations and shocks.
Application Environment: Ductile cast iron valves are widely used in low-pressure water systems and high-temperature, high-pressure heating and steam systems. They are increasingly selected as key components in electromechanical products like crankshafts and pump bodies due to their superior overall performance.

3. Cast Steel Control Valves

Strength and Hardness: Cast steel exhibits excellent strength and high-temperature resistance, making it suitable for high-pressure environments above 200°C. It can withstand greater operational pressure and thermal shocks, ideal for harsh industrial conditions.
Manufacturing Process: Cast steel valves are typically produced using a combination of casting and forging processes. This approach enhances the strength and durability of the valves, making them suitable for use in severe conditions. The flexibility in processing also allows for meeting various complex design requirements.
Corrosion Resistance: The corrosion resistance of cast steel depends on its alloy composition, and it generally outperforms gray cast iron when dealing with corrosive media, making it suitable for the chemical and petroleum industries.

Performance and Applications

The differences in material properties directly affect how various control valves perform in real-world applications. Let's examine the performance differences and suitable environments for gray cast iron, ductile cast iron, and cast steel valves.

1. Gray Cast Iron Control Valve Applications

Their low cost and moderate performance make them suitable for many low-corrosion applications, especially in HVAC and cooling systems. They are favored in water treatment and supply pipelines for their reliable performance.

2. Ductile Cast Iron Control Valve Applications

These valves excel in applications requiring high strength, wear resistance, and toughness. Their increasing use in high-temperature, high-pressure heating systems and mechanical parts (like crankshafts) highlights their significance in modern engineering.

3. Cast Steel Control Valve Applications

Cast steel valves are the best choice for high-temperature and high-pressure conditions, particularly in industries like chemicals and energy that have strict requirements for heat and corrosion resistance. They effectively meet the demands of harsh working environments, ensuring system safety and stability.

Economic Considerations

Economic factors cannot be overlooked when selecting control valves. The costs of different materials, manufacturing processes, and maintenance requirements all affect the overall return on investment. Here’s a summary of the economic comparison among gray cast iron, ductile cast iron, and cast steel valves.

1. Cost-Effectiveness

Although the manufacturing cost of ductile cast iron is higher than that of gray cast iron, its performance advantages are leading to increased popularity in low-pressure water systems, where customers are willing to pay more for higher strength and toughness.

2. Price Differences

Due to its relatively simple manufacturing process, ductile cast iron is usually cheaper than cast steel valves, making it a more ideal solution for budget-constrained projects.

Conclusion

Comparing gray cast iron, ductile cast iron, and cast steel reveals significant differences in material characteristics, application environments, and costs. Choosing the right control valve material should consider specific working conditions, performance needs, and budget constraints. For high strength and toughness requirements, ductile cast iron valves are an ideal choice. For general water and steam applications, gray cast iron valves offer good cost performance. Cast steel valves provide reliable solutions in extreme high-temperature and high-pressure environments to meet various industrial demands. By carefully selecting valve materials, users can enhance system safety and reliability while optimizing economic benefits.
