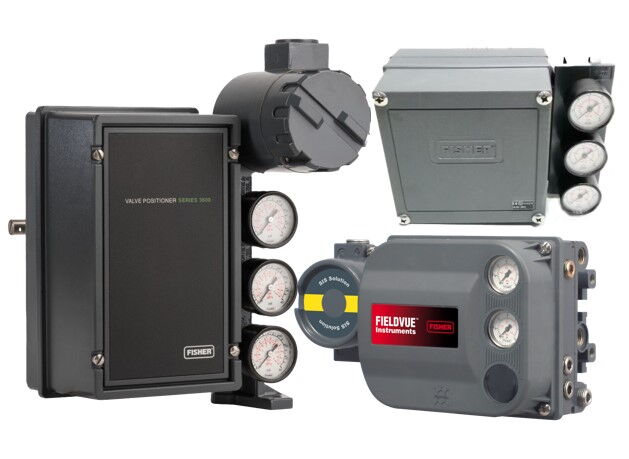

Control Valve Positioners: Smart vs. Conventional Types
On this page
In modern industrial automation, the precise regulation of control valves is crucial for achieving efficient process control. Valve positioners serve as vital components in control valves, with their performance directly impacting the stability and reliability of the entire control system. With advancements in technology, smart valve positioners have gradually replaced traditional analog positioners, demonstrating significant advantages. This article delves into the key differences between smart and traditional valve positioners in several critical aspects and how these distinctions affect the effectiveness of control valves.
Feedback Mechanism
The regulation effectiveness of control valves relies on the feedback mechanism of the valve positioner. Smart valve positioners employ a linear feedback mechanism that can monitor the opening degree of control valves in real time. This feedback system enables high-precision flow characteristic adjustments according to the set loop, allowing valves to flexibly respond to control signals under various operating conditions, ensuring precise fluid flow control.
In contrast, traditional valve positioners use cam shapes for feedback. By altering the shape of the cam, these conventional positioners can adjust the valve's flow characteristics; however, this mechanical feedback method often lacks flexibility and response speed, potentially leading to delays or inaccuracies in flow control, especially under rapidly changing process conditions.
Input Signal Processing
Smart valve positioners are typically intelligent electric devices that accept standard 4-20mA or 1-5V electrical signals as input. Upon entering the valve positioner, these signals undergo analog-to-digital conversion for processing by a microprocessor. This process allows smart positioners to better analyze and respond to control signals, providing higher control precision and accommodating complex control requirements.
Traditional electric valve positioners also accept 4-20mA or 1-5V signals but do not require analog-to-digital conversion. These signals can be directly sent to the electromagnetic coil to generate electromagnetic force. Although this simplified signal processing reduces system complexity, it may not meet the demands for high-precision flow regulation.
Output Signal
Regarding output signals, smart valve positioners deliver digital signals, typically regulated through a piezo valve group to control the pressure in the valve diaphragm. This method allows for rapid and precise adjustments of the control valve's opening, enabling efficient fluid flow control.
On the other hand, traditional electric valve positioners output pneumatic signals amplified by a pneumatic amplifier. While this pneumatic signal can be effective in simple control scenarios, it may lack the response speed and flexibility needed for high-dynamic or high-precision applications, potentially affecting the stability of flow control.
Control Method
Smart valve positioners utilize discrete control methods similar to computer-controlled devices. Within a sampling interval, the control valve's opening remains constant, resulting in stepwise flow regulation. This control approach effectively suppresses instantaneous fluctuations, ensuring the stability of the control valve under various operating conditions.
Conversely, traditional valve positioners adopt continuous control methods, with the valve opening changing continuously throughout the control process. This method is suitable for scenarios with minimal flow variation; however, in high-precision processes, it may lead to instability and fluctuations in flow regulation.
Feedback Signal Processing
In smart valve positioners, feedback signals are processed through analog-to-digital conversion before being sent to the microprocessor. This method enables real-time analysis of feedback signals, enhancing control accuracy and ensuring the control valve can execute commands accurately.
In contrast, traditional valve positioners use feedback signals directly as feedback force (torque) without requiring analog-to-digital conversion. While this processing method simplifies the system, in scenarios with significant flow variations or high-precision control needs, the accuracy of the feedback signal may be limited, adversely impacting control effectiveness.
Communication Functionality
Smart valve positioners support mixed signal processing, allowing for simultaneous transmission of standard analog signals and HART digital signals on the same line. This functionality facilitates convenient communication with host computers, supporting data exchange and sharing. In modern industrial control systems, this is particularly important, as it enables real-time monitoring and remote management, enhancing the integration and intelligence of the system.
In contrast, traditional valve positioners often lack such efficient communication capabilities, limiting their application in complex automation systems. The communication features of smart valve positioners not only enhance data transparency but also simplify maintenance and fault diagnosis.
Comparison of Features
Compared to traditional valve positioners, smart valve positioners exhibit key advantages including:
Input Signal Processing: Supports digital signals from fieldbus devices, better meeting the demands of modern control systems.
Communication Capability: Possesses robust communication features for easy data interaction with host computers, supporting system integration and interconnectivity.
Power Supply Methods: Flexibly adapts to direct power supply and intrinsic safety methods, compliant with relevant fieldbus standards.
System Interoperability: Achieves interchangeability and interoperability between systems, enhancing overall flexibility and intelligence.
Conclusion
In summary, smart valve positioners significantly outperform traditional valve positioners in feedback mechanisms, input and output signal processing, control methods, communication capabilities, and system interconnectivity. These advantages enable smart valve positioners to provide more efficient, stable, and precise flow regulation solutions in control valve applications. As industrial automation continues to evolve, smart valve positioners will play a crucial role in delivering intelligent and precise control solutions for various industrial processes, driving the industry toward greater efficiency.
