Fluctuations of Control Valve in Automated Control Systems
On this page
Control valves play a critical role in automated control systems, primarily responsible for regulating key parameters such as fluid flow, pressure, and temperature. The effectiveness of their functionality directly impacts the overall performance of the system. Fluctuations in control valves can affect product quality and potentially lead to increased energy consumption and equipment damage. Therefore, understanding the causes and influencing factors of control valve fluctuations is essential for enhancing system stability and control accuracy. This article delves into various aspects, including the measurement units, integrated computing units, execution units, and their connections, to provide guidance for diagnosing and resolving control valve fluctuations.
Impact of Measurement Units on Control Valve Fluctuations
Measurement units are vital components of an automated control system, used to acquire and process data. These measuring instruments can be categorized into direct and indirect types, each with its advantages and disadvantages.
1. Direct Measurement Instruments
Direct measurement instruments, such as temperature sensors, float level gauges, and pressure gauges, come into direct contact with the measured medium. In practical applications, direct measurement instruments are more susceptible to fluctuations. For instance, a float level gauge operates based on the buoyancy of a float in the liquid. If there are a significant number of particulates in the liquid, they may enter the narrow gap between the float and the outer sleeve, causing the float to get stuck and leading to fluctuations in the output signal. Additionally, direct instruments may have slower response times under drastic temperature changes, resulting in measurement lag.
2. Indirect Measurement Instruments
Indirect measurement instruments, such as infrared thermometers, radar level gauges, and ultrasonic flow meters, obtain data through alternative methods. The impact of fluctuations on these instruments is generally less significant, but under certain conditions—like large temperature variations or unstable medium properties—they can still lead to unstable signals. The advantage of indirect measurement lies in its better resistance to interference and the ability to operate in harsh environments, such as high temperatures and pressures.
Impact of Integrated Computing Units on Signal Stability
In medium to large intelligent automated control systems, distributed control systems (DCS) are typically used for signal collection, integration, and output. Failures within the integrated computing units can lead to fluctuations in signal output, subsequently affecting the performance of control valves.
1. Structure of DCS Systems
Various modules within a DCS system work together to ensure efficient operation. Intelligent transmitters collect data through the DCS and perform calculations before passing the results to the execution unit. The modular design of DCS allows for independent monitoring and troubleshooting of each subsystem.
2. Effects of Failures
If a hardware module within the DCS system fails, it can lead to abnormal operation of the control valves. This issue is usually resolved by replacing the faulty hardware or updating the software. Moreover, fluctuations in control valves may arise from improper PID parameter settings. For example, recalibrating PID parameters in a gas-fired steam boiler can significantly reduce control valve fluctuations. Proper PID parameter settings not only enhance response speed but also minimize overshoot, thus improving system stability.
Impact of Execution Units on Control Valve Fluctuations

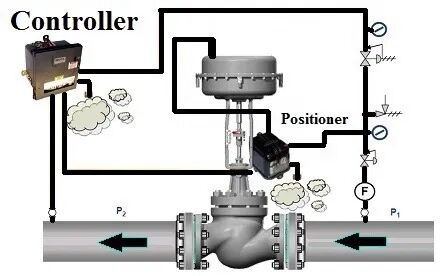

Execution units are responsible for receiving signals from the integrated computing system and converting them into standard pneumatic or electrical signals to control the actions of the control valves.
1. Electrical Converters
At the electrical converter stage, fluctuations can arise from contamination of nozzles or baffles and unstable electrical connections. Contamination may lead to fluctuations in output signals; regular cleaning of nozzles or baffles is essential for maintaining proper operation. Additionally, ensuring good contact at electrical connection points is crucial.
2. Positioners
Positioners improve control precision and response speed. If a positioner malfunctions, it may lead to fluctuations in the output signal. Causes of such fluctuations may include dirt on the nozzles or baffles and aging of rotary pump seals. Regular inspections and maintenance of positioners are necessary, and aging components should be replaced as needed.
3. Electric Actuators
Fluctuations may also occur during the output process of electric actuators, such as insufficient sealing, air leaks, or blockages. These issues can be addressed by increasing the operating pressure of the pneumatic valve or adjusting the preload of the torsion spring. Optimizing the design of electric actuators can enhance their resistance to interference, thereby reducing fluctuations.
Signal Fluctuations in Intermediate Connections
The Connections between each unit should not be overlooked. Signals are typically connected via shielded signal cables or wiring, and any looseness or instability in these connections can result in signal fluctuations. Therefore, when examining the causes of control valve fluctuations, it is essential to carefully inspect each terminal connection to ensure reliability.
1. Wiring Management
Proper wiring management can significantly reduce the likelihood of signal interference. For long-running systems, regular checks on the insulation status of wiring are necessary to ensure they are not affected by environmental factors such as moisture or temperature changes. Furthermore, selecting appropriate signal cables and wiring methods is crucial, and it is advisable to use well-shielded cables with good resistance to interference.
2. Selection of Connectors
The choice of connectors is also important. High-quality connectors can effectively reduce contact resistance and signal attenuation. Therefore, when installing, it is essential to ensure that the chosen connectors meet system requirements and undergo thorough installation and testing.
Conclusion
Fluctuations in control valves are a common and complex issue in automated control systems, influenced by factors related to measurement units, integrated computing units, execution units, and their connections. By analyzing and addressing potential failures in each link, it is possible to effectively reduce control valve fluctuations, enhancing the stability and reliability of the entire automated control system. Future research can focus on optimizing PID parameters, improving overall system design, and enhancing equipment maintenance levels to achieve higher control precision and reliability. Additionally, leveraging modern technologies such as artificial intelligence and data analysis for dynamic monitoring and predictive maintenance can offer new insights and methods for addressing control valve fluctuation issues.
