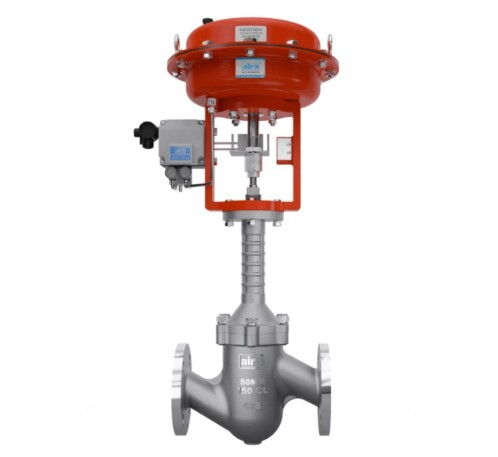

High-Temperature Control Valve Design & Material Selection

When dealing with high temperatures, materials can change in ways that make designing and choosing the right materials for high-temperature control valves a bit tricky. Unlike valves used in cooler conditions, high-temperature control valves need to account for significant changes in material properties. This is because, at high temperatures, materials can lose strength, become more prone to deformation, and even wear out more quickly. So, when designing high-temperature control valves, it's important to consider factors like temperature, stress, material behavior, and how corrosive the medium is to ensure the valve works reliably over time.

How Materials Change at High Temperatures

When materials are exposed to high temperatures, their mechanical properties undergo some pretty significant changes. These changes can affect their strength, hardness, and how they deform, which all directly impact how well the valve performs. Let's break down the main things that happen to materials under high heat.

1. Strength and Deformation Properties

At high temperatures, materials lose strength, which directly affects the stability of high-temperature control valves. This drop in strength shows up in two key ways: a decrease in the yield strength (how much force it takes to deform the material) and tensile strength (the maximum stress the material can withstand before breaking), and changes in the material's ability to deform without breaking. Materials will also shift from elastic deformation (where they return to their original shape) to plastic deformation (where they remain deformed).

Hardness is another key factor. Materials tend to become softer at higher temperatures, which leads to more wear on the sealing surfaces and other components. This can affect how well the valve seals and operates, so it's important to choose materials that can handle both high heat and the stress of everyday use.

2. Creep and Fracture Properties

Creep, which is the gradual deformation of a material under constant stress, becomes a major concern at high temperatures. Even if a material is not under stress beyond its yield strength, the high temperature can cause it to deform slowly over time. The rate at which creep happens depends on the temperature and the amount of stress the material is under. The higher the temperature or stress, the faster the material deforms.

For high-temperature control valves, especially those that work in environments over 450°C, it's critical to pick materials that won't degrade over time due to creep. These valves might be under stress for long periods, which means the material could eventually break or lose its structural integrity. So, it's vital to factor in the service life and choose the right materials to prevent failure.

3. Allowable Stress Selection

Choosing the right allowable stress is a big part of designing high-temperature control valves. The allowable stress needs to be low enough to prevent the material from creeping over time but also high enough to ensure the valve works under normal operating conditions. For example, valves in industries like petrochemicals may need to make sure they don't deform more than 1% over 20,000 hours, while valves in nuclear power plants could be designed to handle just 1% deformation over 300,000 hours.

Thermal Expansion and Gaps Between Parts

When a valve operates at high temperatures, the materials expand. Since different materials expand at different rates, this can affect the size of the gaps between parts, which impacts how the valve works. When designing high-temperature control valves, it's important to consider how these materials will react to heat and adjust the parts accordingly to avoid wear, jamming, or sealing issues.

1. Thermal Expansion Differences

At high temperatures, parts made from different materials will expand at different rates. This can cause issues, especially when hot fluid enters a cold valve. As the valve heats up, parts like the valve core and valve seat expand, but they might not expand at the same rate. This can mess with the sealing performance and cause wear. To avoid this, designers need to ensure that the gaps between parts are big enough to accommodate these changes without causing damage.

2. Gap Design

Designing the right gap between parts is crucial to ensure the valve works properly at high temperatures. The size of these gaps needs to take into account the material's thermal expansion and how hot the valve will get during operation. If the gap is too small, parts might wear out or jam. If it's too large, the valve might not seal properly or work efficiently. So, it's all about finding the right balance to keep everything running smoothly.

Thermal Cycling and Fatigue Aging

High-temperature control valves often go through thermal cycling, repeated heating and cooling, which causes the materials to expand and contract. Over time, this cycling can lead to fatigue aging, which affects how well the valve seals and how long it lasts. Let's take a closer look at thermal cycling and fatigue aging.

1. Impact of Thermal Cycling on Parts

High-temperature control valves are exposed to temperature fluctuations, and this thermal cycling puts a lot of stress on the parts. The back-and-forth stress can cause parts to wear out faster, especially the valve seat and guide sleeve. These parts may start to loosen over time, which can affect the valve's ability to seal properly. To combat this, engineers can use welds or other connection techniques to make sure the valve seat and guide sleeve stay in place, preventing wear.

2. Fatigue Aging and Sealing Structure

As high-temperature control valves go through thermal cycling, the repeated stress causes materials to age and weaken. One way to prevent this from affecting valve performance is to use elastic valve seats. These seats can absorb the stresses from thermal cycling and extend the valve's service life.

Conclusion

Designing and selecting materials for high-temperature control valves isn't just about picking the strongest material—it's about making sure the material can handle the high temperatures, the stress, and the wear over time. Engineers need to consider factors like material creep, thermal expansion, and fatigue from thermal cycling to ensure the valve performs reliably in extreme conditions. By carefully choosing materials and adjusting the design, high-temperature control valves can operate safely and efficiently for the long haul.
