Key Principles for Proper Installation of Pneumatic Control Valves

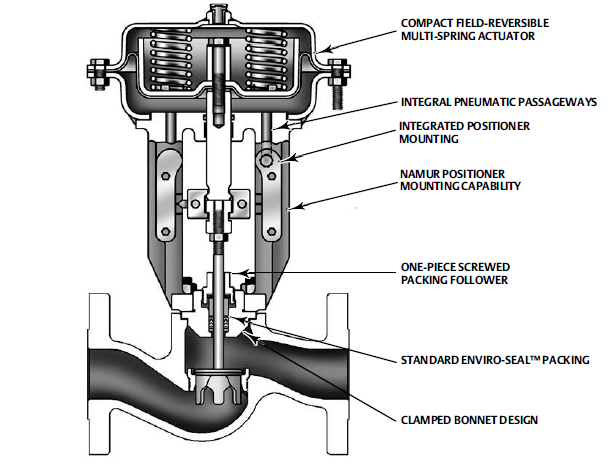

Pneumatic control valves play a crucial role in fluid control systems by effectively regulating fluid flow. To ensure the proper operation and long-term stability of pneumatic control valves, a series of principles must be followed during installation. Below are detailed the four key principles for the proper installation of pneumatic control valves to ensure their performance and reliability.


1. Optimal Pipe Length for Flow Stability


During the installation of pneumatic control valves, it is essential to ensure that there is a sufficient length of straight pipe both upstream and downstream of the valve, with a length not less than ten times the pipe diameter (10D). This principle aims to prevent the straight pipe sections of the valve from being too short, which could adversely affect the flow characteristics of the fluid. A proper length of straight pipe helps reduce turbulence as the fluid passes through the valve, ensuring stability within the valve and maintaining its accurate control capability.


2. Secure Horizontal Installation


Pneumatic control valves should be installed on horizontal pipelines, with the valve positioned vertically relative to the pipeline. Typically, additional support should be provided beneath the valve to ensure its stability and reliability. Even in situations where it is necessary to install the control valve horizontally on a vertical pipeline, support must be provided to avoid imposing additional stress on the valve (excluding small-sized control valves). Proper horizontal installation and secure support are fundamental to ensuring the normal operation of pneumatic control valves.


3. Adequate Clearance and Height


The installation location of pneumatic control valves should allow for convenient operation, observation, and adjustment. The height above the ground should meet certain requirements, and there should be sufficient clearance above and below the valve for disassembly and repair. For control valves equipped with pneumatic valve positioners and handwheels, it is essential to ensure adequate space for operation, observation, adjustment, maintenance, and servicing.


4. Temperature and Humidity Control


The operating environment temperature of pneumatic control valves should be within the range of (−30 to +60) degrees Celsius, with a relative humidity not exceeding 95%. Ensuring that the control valves operate under suitable temperature and humidity conditions helps prolong their service life and enhance performance stability. In extreme environmental conditions, additional protective measures may be required to ensure the normal operation of pneumatic control valves.

In summary, proper installation is crucial to ensuring the normal operation and performance stability of pneumatic control valves. By adhering to the above four key principles, not only can the pneumatic control valves function optimally within fluid control systems, but it also helps reduce maintenance costs and extend equipment lifespan. Correct installation not only impacts the performance of the valves themselves but also plays a vital role in the overall stability of fluid systems.
