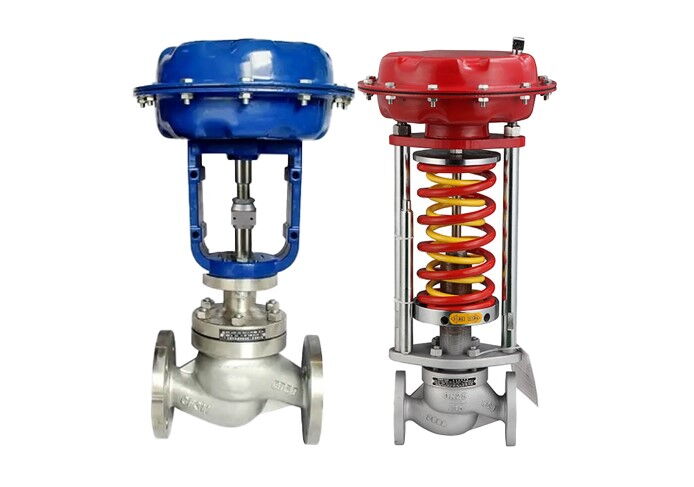

Pneumatic and Self-acting Control Valve Comparison
Pneumatic control valves and self-acting control valves are two widely used control devices in industrial control systems. Although their primary function is to regulate process parameters such as flow, pressure, and temperature, they differ significantly in terms of driving methods, control accuracy, application scenarios, and operational modes. By comparing the characteristics of these two types of control valves, engineers and designers can select the most suitable control valve based on actual requirements.
Driving Methods and Energy Requirements

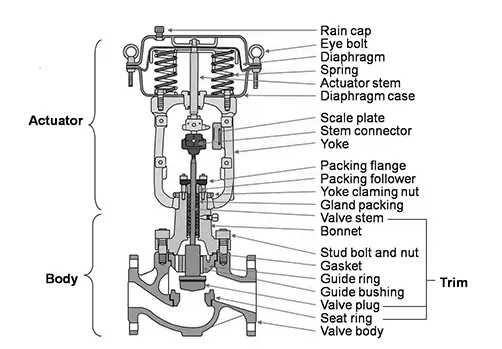

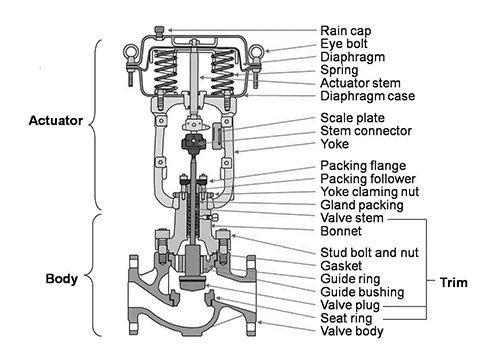

Pneumatic Control Valves: Pneumatic control valves rely on an external air supply as the driving energy source. They use pneumatic actuators (typically double-acting or single-acting) to adjust the valve opening. These valves require control signals from external systems (e.g., DCS, PLC) to regulate the valve opening in real time, thereby controlling fluid flow, pressure, or temperature. This control method generally achieves high precision and fast response speeds.

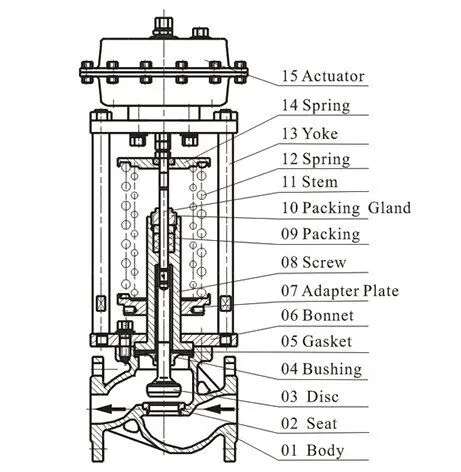

Self-acting Control Valves: Self-acting control valves do not require external energy. They utilize the pressure, temperature, or flow of the medium (e.g., gas or liquid) passing through the valve body as the energy source. Through self-acting actuators (typically diaphragms, springs, etc.), they automatically adjust the valve opening to control fluid parameters. Self-acting control valves do not rely on external control signals and depend entirely on changes in medium parameters for regulation.
Control Accuracy and Regulation Performance
Pneumatic Control Valves: Pneumatic control valves provide high-precision regulation through real-time feedback from external control systems. Their control accuracy is typically very high, especially when integrated with DCS systems, enabling precise adjustments of flow, pressure, or temperature. With fast response speeds and excellent regulation performance, pneumatic control valves are suitable for control systems requiring high precision and rapid response.
Self-acting Control Valves: Self-acting control valves have relatively lower accuracy, usually ranging from 5% to 10%. Since they rely entirely on medium pressure or temperature signals for regulation, their response to fluid changes is slower, and their accuracy and flexibility are comparatively lower. They are more suitable for applications with lower precision requirements, such as simple pressure control systems.
Intelligence and Operational Flexibility
Pneumatic Control Valves: Pneumatic control valves can achieve intelligent regulation when connected to DCS systems. Through DCS systems, operators can monitor process parameters in real time and perform remote adjustments. These valves can flexibly respond to control system commands, provide real-time monitoring and data recording, and offer higher operational flexibility and control accuracy.
Self-acting Control Valves: Self-acting control valves have a simpler control mechanism and lack external control systems, limiting their intelligence. They can only automatically adjust the valve opening based on medium pressure or temperature, without remote monitoring or flexible adjustment capabilities. As a result, while their operation is straightforward, they are less suitable for complex applications requiring frequent adjustments.
Application Scenarios and Suitable Conditions
Pneumatic Control Valves: Pneumatic control valves are widely used in applications requiring precise control, such as chemical, petroleum, natural gas, and pharmaceutical industries. They are suitable for environments requiring remote operation, real-time feedback, and high automation. In these fields, pneumatic control valves are typically used for precise regulation of flow, pressure, or temperature.
Self-acting Control Valves: Self-acting control valves are suitable for applications with low reliance on external energy and lower precision requirements. They are commonly used in equipment requiring automatic pressure or flow regulation, such as lubricating oil supply systems or cooling water systems. Self-acting control valves are ideal for scenarios with minimal and stable medium pressure changes and are often used in simpler process control systems.
Installation and Maintenance
Pneumatic Control Valves: The installation and maintenance of pneumatic control valves are relatively complex, requiring connections to external air supplies and control systems. Maintenance involves checking the air supply, actuator functionality, and connections to the control system. Despite higher maintenance requirements, their high automation and precise regulation performance compensate for these drawbacks.
Self-acting Control Valves: Self-acting control valves are simpler to install and do not require external air or power supplies. Their maintenance requirements are lower, typically involving only periodic checks of the valve body and actuator functionality. Due to the absence of complex driving and control systems, self-acting control valves have lower maintenance costs.
Conclusion
Pneumatic control valves and self-acting control valves differ significantly in driving methods, control accuracy, intelligence, application scenarios, and maintenance requirements. Pneumatic control valves are suitable for applications requiring precise control, intelligent operation, and high automation, such as in the chemical, petroleum, and natural gas industries. They offer higher control accuracy and flexibility but require external air supplies and control signals. Self-acting control valves, on the other hand, are more suitable for simple, low-energy applications, particularly those with lower precision requirements and infrequent adjustments. Although their control accuracy and intelligence are limited, their installation and maintenance are simpler, making them ideal for basic control systems. When selecting between pneumatic control valves and self-acting control valves, a reasonable choice should be made based on specific application needs, precision requirements, and system complexity.
