Preventive and Corrective Maintenance of Pneumatic Control Valves


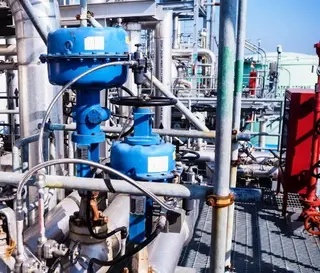

Pneumatic control valves play a crucial role in industrial production, regulating fluid flow, pressure, and temperature to ensure process stability and safety. To maintain efficient operation and extend the service life of pneumatic control valves, proper maintenance is essential. Maintenance of pneumatic control valves can be categorized into two main types: preventive maintenance and corrective maintenance. Understanding and correctly implementing these two methods can significantly reduce the frequency of malfunctions and enhance equipment efficiency.

Preventive Maintenance


Preventive maintenance involves regular, scheduled maintenance activities conducted before any issues arise with the pneumatic control valves. The goal is to prevent potential problems through routine inspections and upkeep, ensuring the valves operate reliably over the long term. Key aspects of preventive maintenance include:

1. Stress Management

During the installation and use of pneumatic control valves, various stresses may occur due to improper piping or assembly, such as:

Thermal Stress: Stress caused by high-temperature media.
Installation Stress: Stress resulting from uneven tightening or improper installation angles.
Mechanical Stress: Stress caused by human interference or vibration.

These stresses can adversely affect valve performance and, in severe cases, cause deformation of the valve stem and guides, misalignment with the valve seat, or flange separation, leading to valve seat leakage. Therefore, it is essential to take measures to eliminate or reduce stress, such as ensuring proper pipe alignment during installation, using appropriate supports and fasteners, and regularly inspecting and adjusting the valve's installation status.

2. Pipe Cleaning


During the connection of control valves with pipelines, impurities such as rust, welding slag, and dirt may exist inside the pipes. These impurities can be carried into the valve body by the fluid medium, potentially damaging the valve seat and plug, and affecting the valve's sealing performance and control accuracy. Regular inspections and cleaning of impurities in the pipelines are necessary. Installing filters upstream of the control valves in pipelines prone to foreign matter accumulation can prevent hard impurities from entering the valve body, ensuring normal valve operation.

3. Packing and Seal Maintenance


Packing and seals are vital components of control valves, directly affecting sealing performance and operational flexibility. During use, packing and seals gradually wear out due to friction and aging, leading to decreased sealing performance. It is important to regularly inspect the wear condition of packing and seals and make timely adjustments or replacements. In dusty environments, plastic or rubber covers should protect the stuffing box and guide parts. Corrosion-resistant bags should be used in environments with corrosive gases or liquids.

4. Air and Power Source Management


The air source is one of the key energy sources driving pneumatic diaphragm control valves. Although the diaphragm chamber does not consume air, if the air supply system contains moisture, oil, or other contaminants, it can lead to blockages and malfunctions in valve accessories like positioners and relays. Regular checks on air and power sources are necessary to ensure clean, dry air and a stable, reliable power supply to prevent valve malfunctions due to air or power source issues.

5. Installation Position and Support


The optimal installation position for a control valve is with the valve stem's stroke direction and the actuator above the valve body on a vertical plane. This positioning ensures that all components of the control valve are in a natural state, preventing misalignment between the valve stem and seat that could lead to wear or leakage. If the control valve must be installed where the valve stem moves horizontally, additional support should be added to prevent the valve from shifting due to gravity or vibration, which could cause malfunctions.

Corrective Maintenance


Corrective maintenance is performed when a control valve fails and cannot meet operational requirements. This type of maintenance is typically conducted in the workshop, but in special cases, it may be carried out directly on the pipeline. The purpose of corrective maintenance is to quickly resolve the issue, restore the control valve's normal functionality, and ensure continuous and safe production processes.

1. Fault Diagnosis


Before performing corrective maintenance, it is crucial to diagnose the valve's fault and identify the cause of the malfunction. Common issues include air leaks, stem sticking, and actuator failures. By carefully inspecting the valve body, plug, seat, and actuator components, the specific location and cause of the fault can be determined, providing a basis for subsequent repair work.

2. Repair and Replacement


Based on the fault diagnosis, appropriate repairs or replacements should be carried out. For example, for leaking valves, seals or packing can be replaced; for stem sticking, impurities can be cleaned or the alignment between the stem and seat adjusted; for actuator malfunctions, the air source and power can be checked, and the actuator adjusted or replaced. All repair work should follow the equipment manual's requirements to ensure the repaired control valve operates safely and reliably.

The maintenance of pneumatic control valves is crucial for ensuring their long-term stable operation. Regular preventive maintenance can effectively reduce the occurrence of malfunctions and improve equipment efficiency. In case of faults, timely corrective maintenance can quickly restore the normal function of the control valves, ensuring continuous and safe production processes. Only by appropriately performing preventive and corrective maintenance can the service life of pneumatic control valves be extended, maintenance costs reduced, and equipment economic efficiency and production safety enhanced.
