Role of Diaphragm in Pneumatic Diaphragm Control Valves

The diaphragm, the core part of pneumatic diaphragm control valves, plays a crucial role in controlling fluid flow by adjusting the valve opening. The diaphragm bends flexibly, allowing for precise flow control. Unlike traditional valves, pneumatic diaphragm control valves use a diaphragm to prevent leaks, providing better sealing and reliability. The diaphragm isn't just the main working component and its material and design directly affect the valve's performance, lifespan, and adaptability.

How the Diaphragm Works and Its Structure

The key component of a pneumatic diaphragm control valve is the diaphragm, usually made from flexible materials like rubber or PTFE. The diaphragm bends inside the control chamber when pressure from compressed air, gas, water, or other fluids is applied. This changes its shape, adjusting the valve opening to control fluid flow. This design ensures accurate valve control and prevents leaks, which are common issues in traditional valves.

The material and design of the diaphragm are critical for valve performance. Common diaphragm materials include rubber, fluoroelastomer, chloroprene rubber, and PTFE. Each material offers unique benefits such as corrosion resistance, flexibility, temperature endurance, and wear resistance. When selecting the right material, it's essential to consider the application, including the type of fluid, operating temperature, and pressure.

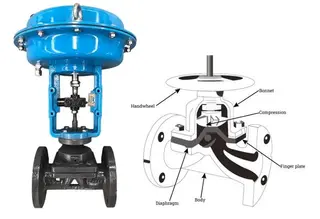

Design and Structure of Diaphragm Control Valves

Pneumatic diaphragm control valves use a membrane-style actuator, replacing the traditional piston actuator. This design helps avoid issues like piston ring wear and leaks while improving sealing and reliability. Even if there's a failure in the air supply, the valve can still be manually operated with a handwheel, ensuring reliability in emergency situations.

The valve body is often made of cast iron, cast steel, or stainless steel. Depending on the application, the valve can be lined with materials like PTFE or fluoroelastomer to improve corrosion and wear resistance. These lining materials make pneumatic diaphragm control valves ideal for handling corrosive fluids, extending their service life and ensuring stable performance.

Choosing the Right Diaphragm Material

The performance of pneumatic diaphragm control valves depends on the diaphragm's design and material. The diaphragm must handle the pressure inside the control chamber and withstand the challenges posed by various fluids, temperatures, and pressures.

1. Corrosion Resistance

Corrosion resistance is one of the most important characteristics of diaphragm materials. Since many pneumatic diaphragm control valves handle corrosive fluids, the diaphragm must be resistant to corrosion to ensure the valve lasts longer and requires less maintenance. Fluoroelastomers and PTFE are great choices for environments with strong acids, alkalis, or other corrosive substances.

2. Temperature and Pressure Resistance

In extreme conditions such as high temperatures and pressures, the diaphragm's resistance to heat and pressure is critical. Choosing materials that can withstand these conditions ensures the valve remains sealed and performs well even in tough environments. PTFE and fluoroelastomers are commonly used for their high-temperature resistance and durability.

3. Elasticity and Wear Resistance

The diaphragm's elasticity is key to precise flow control. A more elastic diaphragm responds quickly to control signals, allowing for more accurate flow regulation. It should also be wear-resistant to handle frequent operation without losing efficiency. Rubber and chloroprene rubber are popular choices for applications that require high elasticity and wear resistance.

4. Sealing Performance

The sealing performance of the diaphragm is essential for the valve's reliability. It must make a tight seal with the valve body to prevent leaks. Since the valve doesn't have a stem that directly contacts the fluid, it can handle more demanding conditions, such as high-viscosity or particulate-laden fluids, without leaking.

Flow Characteristics and Applications of Diaphragm Control Valves

Pneumatic diaphragm control valves are known for their quick on/off response. During the first 60% of travel, the flow change is nearly linear. After that, the flow change slows down. This makes pneumatic diaphragm control valves ideal for applications requiring fast actuation or precise flow control. These valves are commonly used in industries like chemicals, pharmaceuticals, and food processing, especially for regulating high-viscosity fluids and media containing particles.

Key Applications

Pneumatic diaphragm control valves are widely used in various industries due to their excellent sealing performance, precise flow control, and broad adaptability. Their leak-free design makes them particularly suitable for applications that require high sealing efficiency, corrosion resistance, and precise regulation.

1. Chemical Industry

Pneumatic diaphragm control valves are used to precisely control fluid flow during chemical reactions. They are particularly useful for handling corrosive fluids like acids and alkalis, where reliable sealing and regulation are essential.

2. Food and Pharmaceutical Industries

These valves feature a leak-free sealing design, preventing contamination. They are ideal for regulating fluids in sensitive industries like food and pharmaceuticals.

3. Wastewater Treatment

Pneumatic diaphragm control valves are perfect for handling wastewater, especially when it contains high-viscosity fluids or solid particles. They maintain stable flow control even under these challenging conditions.

4. High-Viscosity and Particulate Media

Pneumatic diaphragm control valves are ideal for regulating high-viscosity fluids such as slurries and oils. The diaphragm's design allows it to handle higher viscosities without affecting performance. They also work well with fluids containing suspended particles, preventing the clogging and wear that traditional valves might experience.

Conclusion

The diaphragm is the key to accurate flow control and effective sealing in pneumatic diaphragm control valves. Selecting the right materials like fluoroelastomers or PTFE can optimize valve performance in various conditions. The diaphragm's resistance to corrosion, temperature, pressure, and wear is crucial for reliable valve operation. Understanding the diaphragm's working principle, material properties, and ideal applications helps improve system control, extend equipment life, and meet the demands of complex industrial environments.
