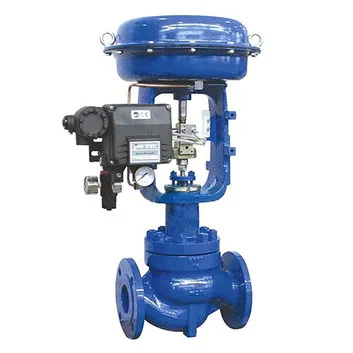

Selection Guide for Pneumatic Diaphragm Control Valves

Pneumatic diaphragm control valves are vital components in fluid control systems. They play a crucial role in precisely adjusting fluid flow and pressure, ensuring safe and stable production processes. As industrial production increasingly relies on automation, selecting the right pneumatic diaphragm control valve has become more important. Different working conditions and process requirements directly affect the valve's performance and reliability. This article will explore the various types of pneumatic diaphragm control valves, their working principles, and the key factors to consider during selection.

Types of Control Valves

Pneumatic diaphragm control valves mainly include straight-through single-seat control valves, double-seat control valves, and high-pressure angle control valves, each with distinct characteristics and suitable applications.

1. Straight-Through Single-Seat Control Valves

These control valves have a simple design with low leakage rates, making them suitable for applications that require strict leakage control, small pipe diameters, and low differential pressure. Because the fluid thrust on the valve stem creates significant unbalanced force, single-seat valves operate stably in high-pressure differential environments. However, due to structural limitations, they may perform inadequately in high-flow conditions, affecting the overall system performance.

2. Straight-Through Double-Seat Control Valves

These control valves feature two valve stems, which exert opposing thrusts that nearly cancel each other out, reducing unbalanced forces. They can handle larger pressure differentials and are suitable for high-flow and high-pressure applications. However, their complex flow paths can lead to erosion damage under high-pressure conditions, making them unsuitable for high-viscosity fluids or those containing suspended particles or fibers. Additionally, the closing performance of double-seat valves may be compromised at high or low temperatures, leading to increased leakage.

3. High-Pressure Angle Control Valves

These control valves have a right-angle design with a simple flow path that minimizes resistance, effectively reducing erosion from high-velocity fluids. They are ideal for high-pressure differentials, high-viscosity fluids, and those with suspended particles, handling vapor-liquid mixtures and preventing cavitation. Their simple design helps prevent coking, adhesion, and blockage in practical applications, enhancing system reliability and safety.

Control Valve Forms

Pneumatic diaphragm control valves can be classified into two forms: air-to-open valves and air-to-close valves. When selecting, it is essential to consider the safety and operational requirements of different production processes.

1. Air-to-Open Valves

These valves remain closed when the signal pressure is interrupted, making them suitable for applications where being closed has minimal impact on the process. They help avoid disruptions in production during control operations.

2. Air-to-Close Valves

In contrast, air-to-close valves stay open when the signal pressure is interrupted. They are suitable for situations where closure could have serious consequences, ensuring the safe discharge of fluids even if the signal is lost.

Flow Characteristics

Flow characteristics are important parameters when selecting pneumatic diaphragm control valves, as they influence valve performance under various conditions. Common flow characteristics include linear, equal percentage, quick opening, and parabolic flow characteristics.

1. Linear Flow Characteristics

With equal changes in relative opening, small flow changes yield larger relative variations, while large flows result in smaller variations. This makes linear flow control valves less effective at small openings (low loads), leading to oscillations. Therefore, they are not suitable for systems with significant load variations but are better for more stable loads.

2. Equal Percentage Flow Characteristics

This characteristic exhibits weaker control at low loads and stronger control at high loads. When the valve is nearly closed, the control action diminishes, allowing for smooth operation. Conversely, when it is close to fully open, the control action increases, making it responsive and effective. Equal percentage flow characteristics are ideal for applications with significant load variations, maintaining good control performance whether under full or partial loads, thus improving system dynamic response.

Selection Considerations

When choosing pneumatic diaphragm control valves, several factors should be considered.

1. Medium Characteristics

Different media (liquids, gases, steam, etc.) have varying material and structural requirements. It is essential to select valve materials and designs that ensure corrosion resistance and wear resistance under specific conditions.

2. Working Pressure and Temperature

The valve must be suitable for the pressure and temperature ranges of its operating environment to ensure stable operation under extreme conditions.

3. Flow Range and Adjustment Accuracy

Clearly define the flow range and precision required based on process demands to ensure safe and stable production.

4. Maintenance and Cost

Consider the frequency of maintenance, the replacement of wear parts, and overall operating costs to choose a product that offers the best value.

Conclusion

Selecting pneumatic diaphragm control valves is a crucial aspect of designing automated control systems. By comprehensively considering valve types, forms, flow characteristics, and other relevant parameters, the selected valve can achieve optimal control in specific processes. This not only enhances production efficiency and safety but also reduces costs and improves system reliability. Understanding and evaluating various factors during the selection process will provide strong support for optimizing production processes.
