Structural Types and Applications of Pneumatic Ball Valves

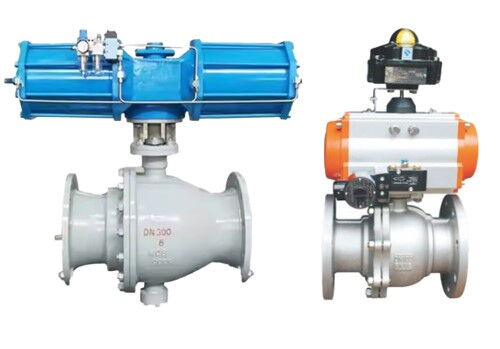

Pneumatic ball valves are essential components in industrial automation control systems. They are widely used in industries such as petroleum, chemical, power, natural gas, pharmaceuticals, and food processing. The primary function of pneumatic ball valves is to control the opening and closing of fluids and to adjust the flow distribution and direction by rotating the valve core. Depending on the structure of the valve core and seat, pneumatic ball valves can be categorized into three main types: floating pneumatic ball valves, fixed pneumatic ball valves, and elastic ball pneumatic ball valves. Each type has unique advantages in sealing performance, pressure-bearing capacity, and flow control. This article will analyze the working principles, advantages, applications, and future development trends of these three structural types.

Floating Pneumatic Ball Valve

The main characteristic of a floating pneumatic ball valve is that the valve core is not fixed during operation. The ball moves in response to the fluid pressure. When fluid passes through the valve, the pressure pushes the ball towards the seat, creating a seal. A floating pneumatic ball valve typically consists of a ball, valve seat, and sealing ring. The ball is not fixed to the valve body but can float between the seat and sealing surface.

The advantage of this design is that the ball always maintains close contact with the valve seat, ensuring good sealing performance. As the pressure increases, the force exerted by the ball on the seat also increases, further enhancing the sealing effect. Floating pneumatic ball valves are generally suitable for systems with smaller flow rates or medium pressures, making them ideal for situations where rapid switching or changing fluid direction is needed.

1. Application Scenarios

Floating pneumatic ball valves are typically used in low to medium-pressure environments, especially in small-diameter pipeline systems. They are widely applied in control systems within petrochemical, oil, and gas industries. This type of valve is particularly suitable for frequent switching or directing fluid flow. For instance, in liquid transport and natural gas pipelines, floating pneumatic ball valves provide efficient and precise flow control.

2. Advantages and Limitations

Advantages: Floating pneumatic ball valves are simple in structure, cost-effective, and offer good sealing performance with high flexibility, making them suitable for rapidly switching or changing fluid flow direction.

Limitations: As the pressure on the ball is directly transferred to the outlet sealing ring, the material and quality of the sealing ring need to meet high standards. Additionally, this type of valve is better suited for medium and low-pressure scenarios, and may face sealing challenges in high-pressure mediums.

Fixed Pneumatic Ball Valve

Unlike floating pneumatic ball valves, the ball in a fixed pneumatic ball valve remains stationary during operation and is unaffected by fluid pressure. These valves generally use a floating valve seat design, which moves under the fluid pressure to push the sealing ring against the ball, ensuring a tight seal. Fixed pneumatic ball valves are usually equipped with bearing systems to reduce the torque required for operation, making the valve easier to operate.

Because the ball is fixed within the valve body, this design avoids the movement of the ball under high-pressure conditions, protecting the valve seat and reducing the impact of excessive pressure on the seat. Fixed pneumatic ball valves are especially suited for high-pressure, large-diameter pipeline systems and can operate stably under heavy loads.

1. Application Scenarios

Fixed pneumatic ball valves are widely used in high-pressure, large-diameter pipeline systems in industries such as power, oil, natural gas, and chemical processing. These systems require valves that can withstand high pressure and fluid shocks. Fixed pneumatic ball valves offer excellent sealing and pressure resistance, making them ideal for these applications. They are particularly suited for systems requiring large flow rates and quick response times.

2. Advantages and Limitations

Advantages: Fixed pneumatic ball valves can withstand high pressures and large flows, making them suitable for extreme working conditions. The low torque required for operation and reliable sealing make them ideal for high-pressure systems.

Limitations: Compared to floating pneumatic ball valves, fixed pneumatic ball valves have a more complex structure, higher costs, and greater design and manufacturing requirements. As such, they are primarily used in high-pressure applications.

Elastic Ball Pneumatic Ball Valve

Elastic ball pneumatic ball valves are designed specifically for high-temperature and high-pressure environments. The ball in these valves has elasticity when the valve is closed. By designing elastic grooves on the inner surface of the ball, the wedge-shaped head of the valve stem pushes the ball to expand, ensuring a tight seal with the seat. When the valve opens, the wedge-shaped head releases, and the ball returns to its original shape, creating a small gap to reduce friction between sealing surfaces and minimize torque during operation.

Elastic ball pneumatic ball valves use metal sealing rings to provide higher sealing pressure, ensuring good sealing performance under high-temperature and high-pressure mediums. This design is particularly suited for controlling the flow of high-temperature gases and liquids and maintaining stable operation in extreme environments.

1. Application Scenarios

Elastic ball pneumatic ball valves are widely used in industries such as petroleum, chemicals, power, and metallurgy, where high temperatures and pressures are common. They are especially suitable for pipelines transporting high-temperature gases and ultra-high-pressure fluids. In these environments, elastic ball pneumatic ball valves can provide effective and long-lasting sealing and flow control.

2. Advantages and Limitations

Advantages: Elastic ball pneumatic ball valves can withstand extremely high temperatures and pressures, providing excellent sealing performance. They require lower operating torque and are suitable for high-demand applications.

Limitations: These valves require external force to ensure sealing, making them more complex to operate and more expensive. They are primarily used in high-temperature and high-pressure environments.

Conclusion

Pneumatic ball valves are crucial components in fluid control, and selecting the right structural type is vital for system stability and efficiency. Floating, fixed, and elastic ball pneumatic ball valves each have distinct working principles and advantages, making them suitable for different operating environments and conditions. As technology advances, the sealing performance, ease of operation, and intelligence of pneumatic ball valves will continue to improve, meeting the needs of more complex and demanding industrial applications.
