The Advantages of Pneumatic V-Port Ball Control Valves
Pneumatic V-port ball control valves are essential components in modern industrial control systems, renowned for their outstanding performance and reliability across diverse process control requirements. These pneumatic ball control valves integrate the advantages of both ball valves and butterfly valves, ensuring precise flow control and efficient media shut-off through innovative engineering. Below, we explore their key benefits in detail.
1. Design Structure and Components

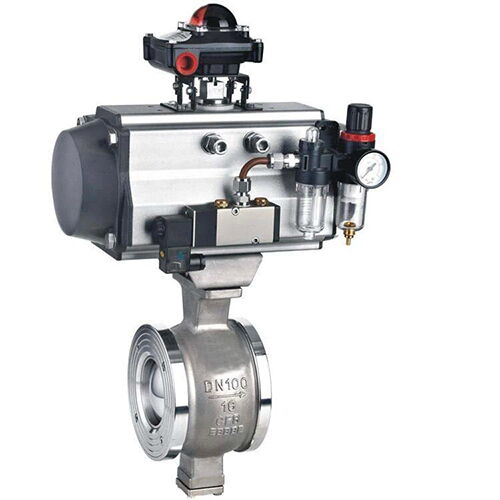

The pneumatic V-port ball control valve features a compact, right-angle rotary structure comprising a valve body, pneumatic actuator, and associated accessories. This design facilitates straightforward installation and maintenance in confined spaces, making it indispensable in industrial automation.
2. Stable Control Characteristics
Known for its nearly equal percentage inherent flow characteristics, the valve offers an adjustable range ratio of up to 300:1. This capability enables precise modulation of media flow, catering effectively to varying flow rate demands in process control applications.
3. High Flow Capacity and Low Resistance
Designed with a streamlined exterior and right-angle rotary control mechanism, the pneumatic V-port ball control valve maximizes flow volume capacity. It achieves significant flow rates while minimizing system flow resistance, thereby reducing energy consumption.
4. Dual Bearing Structure and Responsive Operation
The valve incorporates a dual-bearing structure for enhanced mechanical stability and responsive operation. It features low start-up torque and rapid response times, facilitating quick adjustments and precise control over media flow for optimal system performance.
5. Leak Prevention and Longevity
Featuring an integral structure resistant to pipeline pressure impacts, the valve effectively prevents leaks, ensuring stable system operation and safety. Its movable metal seat design includes automatic compensation features, maintaining superior sealing performance throughout its extended service life.
6. Powerful Shearing Capability and Self-cleaning Functionality
The V-shaped notch design of the valve core, combined with its metal seat, generates powerful shearing forces that effectively handle fibers and impurities within the media. This inherent self-cleaning capability prevents valve sticking and blockages, thereby enhancing operational reliability.
7. Compact and Lightweight Construction
Due to its compact size and lightweight build, the valve is easy to install and suitable for diverse industrial environments with space constraints. Simplified maintenance procedures reduce downtime and operational costs.
8. Advantages of Pneumatic Actuators
The pneumatic actuator employs a piston-type cylinder and cam arm conversion structure to deliver high torque output in a compact form factor. Its fully sealed, waterproof design with high protection ratings ensures durability and reliability, even in harsh operational environments.
In conclusion, pneumatic V-port ball control valves play a pivotal role in industries such as petrochemicals, power generation, and pharmaceuticals. They are prized for their superior fluid control capabilities, stable operation characteristics, and long-term reliability. As industrial demands evolve, these valves will continue to meet increasingly complex requirements with precision and efficiency.
