The Role and Benefits of Handwheel Mechanisms in Control Valve


In automated control systems, control valves play a critical role in maintaining system stability by regulating fluid flow and pressure. However, if there is a failure in the pneumatic or electronic signals, or if key components of the actuator (such as diaphragms, springs, seals, or linkages) are damaged, the automatic control system may not function properly. In such cases, transitioning from automatic to manual operation can be an effective solution to ensure the continued functionality of the control valve and the normal operation of the system. Manual handwheel mechanisms are commonly used to maintain the control valve's adjustment function and enhance system reliability when automatic systems fail.

Functions and Advantages of Handwheel Mechanisms


Handwheel mechanisms are crucial manual devices widely used in various industrial control valves and equipment. In automated systems, handwheel mechanisms provide a reliable manual operation method when the automatic control system fails. Here are the key functions and advantages of handwheel mechanisms.

1. Manual Operation


In the event of an automatic system failure, the handwheel mechanism allows operators to manually adjust the valve position, ensuring proper fluid flow. Manual operation helps maintain control over fluid flow, thereby ensuring system stability.

2. Stroke Limiting Switch


Handwheel mechanisms can also function as stroke limit switches for control valves. By setting the handwheel position, the valve's opening and closing strokes can be limited, preventing the valve from operating in excessive open or closed positions. This functionality helps improve the valve's reliability and prevents potential issues caused by over-travel.

3. Cost-Effectiveness


Compared to dual-loop power systems, handwheel mechanisms are more cost-effective and require less space. Particularly for large valves or those made of expensive materials, using handwheel mechanisms can significantly reduce investment costs.

Handwheel Applications for Single-Acting Diaphragm Valves


For single-acting diaphragm valves, the application and method of using handwheels have specific considerations. These valves are typically used in processes with lower pressure and less stringent closure requirements. The force required is relatively small, allowing direct installation of handwheels without additional force-saving devices. This simplifies both design and maintenance tasks. However, handwheels are usually paired with plug mechanisms for double-acting or piston actuators, so selecting a handwheel should consider the valve type and application requirements.

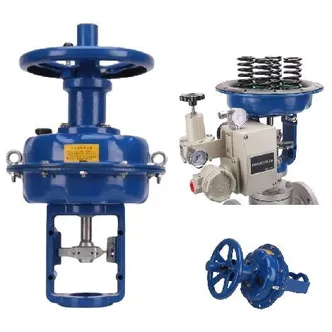

Top-Mounted Handwheel Limiting Principles and Methods


Top-mounted handwheel limiting is a method used to achieve precise control of valve positions through handwheel mechanisms. It is widely used in applications requiring accurate valve position control. The principle and method are as follows:

1. Thrust Conversion


The top-mounted handwheel generates thrust through its shaft, which replaces the thrust produced by the diaphragm under pneumatic signals, overcoming the spring’s reaction force and moving the valve stem. When the handwheel exerts thrust on the valve stem to hold it in a certain position, the thrust from the diaphragm under the pneumatic signal combines with the handwheel’s thrust, causing the valve stem to continue moving in the same direction. This method achieves unidirectional limiting.

2. Limit Setting


To set the limits for a top-mounted handwheel, first remove the pneumatic signal from the diaphragm or adjust the current signal to 4mA. Then, rotate the handwheel to move the valve stem to the desired limit position. This ensures that the valve does not exceed the set position during operation.

Side-Mounted Handwheel Limiting Principles and Methods


Side-mounted handwheel limiting is a method that uses a side-mounted handwheel to achieve valve position limits, providing bidirectional limiting functionality. The principle and method are as follows:

1. Slider and Lever Mechanism


The side-mounted handwheel uses a slider on the handwheel to move one end of a lever horizontally or vertically. The slider can exert force on both sides of the lever within a slot, allowing the valve to be force-operated in both directions regardless of signal presence. The thrust is converted through the pivot point, causing vertical movement of the lever’s other end, thus moving the valve stem up and down.

2. Bidirectional Limiting


Side-mounted handwheels offer bidirectional limiting but cannot simultaneously limit the valve in both directions. One direction should be chosen based on actual needs. To set a limit in the same direction as the diaphragm’s force, adjust the current signal to 20mA and operate the handwheel to position the valve stem. To set a limit in the opposite direction, adjust the current signal to 4mA and move the handwheel to the desired position.

When pneumatic or electronic signals fail, or major components of the actuator are damaged, switching from automatic to manual operation is an effective way to ensure the control valve’s normal functioning. Handwheel mechanisms not only maintain the valve’s adjustment capabilities but also serve as limit switches, enhancing system reliability. By selecting the appropriate type of handwheel (such as direct installation for single-acting diaphragm valves, unidirectional limiting for top-mounted handwheels, or bidirectional limiting for side-mounted handwheels), one can effectively address the challenges posed by automatic system failures and ensure system stability and reliability.
