The Role and Design Considerations of Control Valve Bonnets

Control valves are essential components of automatic control systems, responsible for adjusting fluid flow and overcoming disturbances to ensure that controlled variables consistently meet specified process parameters. Within the structure of a control valve, the bonnet plays an indispensable role. This article explores the functions, components, material choices, and design considerations of the bonnet under special working conditions.

Functions and Importance of the Bonnet


The primary functions of the bonnet in a control valve are to seal and guide the valve stem, ensuring stability and preventing process media from leaking along the stem. Effective sealing is crucial for maintaining the safety and stability of the system. Key design considerations for the bonnet are as follows.

1. Fluid Sealing


The packing inside the bonnet must withstand fluid pressure and prevent leakage during stem movement. Good sealing performance helps prevent media leakage, reducing environmental pollution and safety risks.

2. Guidance Stability


The guiding structure of the bonnet minimizes friction during the up-and-down movement of the valve stem, allowing smoother operation and extending the stem's service life.

3. Thermal Management


In high-temperature conditions, the bonnet must effectively dissipate heat to ensure that the stem and other components operate within a safe temperature range, avoiding material deformation or failure due to overheating.

4. Corrosion Resistance


For industries like chemicals and oil, the material used for the bonnet must have excellent corrosion resistance to withstand the corrosive nature of the fluid and ensure long-term stable operation.

Composition and Structural Forms of the Bonnet


The bonnet of a control valve typically consists of the following parts.

Bonnet Body: This part supports the entire stem assembly and is usually made of the same or equivalent material as the valve body to ensure compatibility and durability.
Packing: The packing seals the stem, preventing fluid leakage and is a critical component for maintaining sealing performance.
Guiding Structure: This structure directs the stem's movement, reducing friction and allowing for flexible and stable operation.

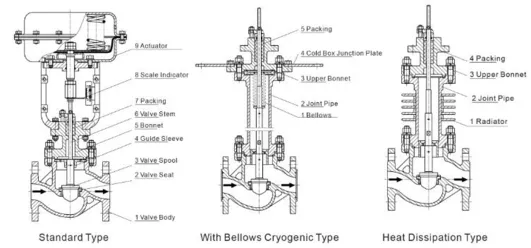

Common structural forms of bonnets include:

Standard Type: Simple in design and suitable for general fluid regulation, with lower costs.
Finned Type: Features fins on the bonnet to effectively reduce its temperature, suitable for handling high-temperature fluids.
Long Neck Type: This design extends the effective portion of the stem, improving sealing performance and suitable for specific conditions.
Bellows Sealed Type: Utilizes bellows for sealing, effectively protecting the packing from contact with the fluid, thus extending its lifespan.

Material Selection and Sealing Performance


The choice of material for the bonnet directly affects its corrosion resistance, sealing performance, and lifespan. Common materials include:

Cast Iron: Durable but performs poorly in corrosive media; suitable for general conditions.
Cast Steel: High strength, suitable for high-pressure environments, but may face challenges in highly corrosive fluids.
Stainless Steel: Due to its excellent corrosion resistance, it is suitable for various conditions and is the preferred material in high-demand environments.

Packing materials are typically PTFE (Polytetrafluoroethylene) or flexible graphite. These materials provide good sealing performance but can wear down under high loads, leading to fluid leakage. When selecting a bonnet, several factors should be considered:

Fluid Characteristics: The corrosiveness, temperature, and pressure of the fluid directly impact material selection. For highly corrosive liquids, materials with high corrosion resistance are essential.
Sealing Performance: The choice of packing must consider its wear resistance and corrosion resistance to ensure long-term sealing performance.
Service Life: Evaluate the performance changes of materials over time to select suitable materials that extend service life.
Cost-Effectiveness: While ensuring performance, consider the economic aspects of materials and structures to reduce overall costs.

Bonnet Design in Special Conditions


In highly corrosive, volatile, or toxic environments, traditional bonnet structures may not meet requirements. In such cases, bellows-sealed bonnets are an effective solution. Typically made of stainless steel, bellows can protect the packing from fluid contact, enhancing overall sealing performance.

However, bellows lose pressure capacity at elevated temperatures, and fluids must not contain solid particles. In specific environments, such as humid chlorine gas processes, bellows may quickly corrode due to trace hydrochloric acid, making diaphragm control valves a viable alternative. These valves use corrosion-resistant liners and diaphragms to eliminate the risk of corrosive media leakage.

Despite their advantages in leak prevention, diaphragm valves have poor flow characteristics and can suffer fatigue damage under high loads. The lifespan of the diaphragm is relatively short; once it ruptures, highly corrosive media may still leak.

To address these issues, engineers can consider the following strategies during design:

Strengthen Material Selection: In special environments, consider using high-temperature, high-corrosion alloy materials or applying protective coatings to enhance the bonnet's durability.
Optimize Structural Design: Use finite element analysis to optimize the structural design of the bonnet, ensuring strength and stability under various conditions.
Incorporate Smart Monitoring: Leverage modern technology by using sensors and monitoring systems to track the valve's operational status in real-time, allowing for timely detection and management of potential leakage risks.

Conclusion


In conclusion, the bonnet plays a crucial role in control valves. It not only affects the sealing performance of the stem but also directly impacts the operational stability and safety of the valve. When dealing with highly corrosive, volatile, and toxic conditions, selecting the right bonnet structure and materials is vital. Therefore, when choosing and designing the bonnet for a control valve, it is essential to fully consider the properties of the fluid, process conditions, and operating environment to achieve optimal valve performance.
