Unveil Common Control Methods for Electric Control Valves

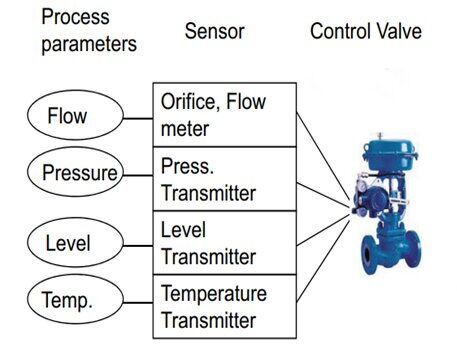

As a critical component of modern industrial automation, the electric control valve plays an indispensable role across various sectors. By controlling the valve opening with an electric actuator, it precisely regulates the flow rate. Depending on different control requirements and principles, electric control valves can adopt multiple control methods to meet the diverse needs of complex industrial applications. The following section provides a detailed introduction to several common control methods for electric control valves and their application advantages.
1. Position Control Method
The position control method is the most common flow control method for electric control valves. By using an electric actuator to adjust the valve opening, the flow of the medium through the valve is regulated. In control systems, flow variations are typically used as input signals, and the electric actuator adjusts the valve opening based on these signals. This method is suitable for systems that require precise flow control and have high demands for time response, such as high-precision liquid transmission or gas regulation systems. The advantages of the position control method include its quick response and high accuracy, making it ideal for scenarios with stringent flow variation requirements.
2. Pressure Control Method
The pressure control method is a flow control method based on signal threshold values. In this method, a pressure threshold is set, and when the system pressure reaches or exceeds this threshold, the electric actuator automatically adjusts the valve opening to reduce or close it, thus controlling the flow of the medium. This control method is particularly suitable for systems that need to maintain stability within a specific pressure range, such as boiler systems and hydraulic systems. The main advantage of the pressure control method is its ability to effectively prevent system overpressure, thereby protecting the safe operation of equipment.
3. Flow Control Method
The flow control method relies on flow sensor measurement signals for control. In control systems, flow sensors are installed to measure the medium's flow rate in real-time, and the electric control valve's opening is adjusted based on these measurements to achieve precise flow control. This method is widely used in systems that require real-time monitoring and adjustment of medium flow, such as liquid transmission pipelines and natural gas pipelines. The flow control method's advantages include high precision and the ability to provide real-time feedback and adjustments, ensuring that the flow rate remains within the set range.
4. Temperature Control Method
The temperature control method uses temperature sensor measurement signals to control the flow. In this method, temperature sensors are installed to measure the medium's temperature in real-time, and the electric control valve's opening is adjusted based on these measurements to achieve temperature control. This control method is suitable for systems that need to strictly control the medium's temperature, such as temperature control in chemical production processes and heat treatment in food processing. The advantages of the temperature control method include maintaining medium temperature stability, improving product quality, and enhancing production efficiency.
5. Liquid Level Control Method
The liquid level control method is based on liquid level sensor measurement signals to control the flow. In control systems, liquid level sensors are installed to measure the medium's level in real-time, and the electric control valve's opening is adjusted based on these measurements to achieve level control. This method is suitable for systems that need to maintain stable liquid levels, such as storage tank level control and wastewater treatment systems. The liquid level control method's advantages include effectively preventing overflow and drying out, ensuring the stable operation of the system.
6. Quality Control Method
The quality control method relies on quality sensor measurement signals for control. In this method, quality sensors are installed to measure the medium's quality in real-time, and the electric control valve's opening is adjusted based on these measurements to control the medium's quality. This method is suitable for systems that require precise control of medium quality, such as additive control in chemical production processes and dosage control in pharmaceutical production. The quality control method's advantages include high precision, ensuring the consistency and reliability of product quality.
The various control methods of electric control valves provide flexible and efficient solutions for industrial automation, adapting to a wide range of complex production environments and application needs. Whether it is position control, pressure control, flow control, temperature control, liquid level control, or quality control, each method has its unique advantages, ensuring the accuracy and stability of the production process.
