What are Pressure Tests for Pneumatic Control Valves
On this page
A pneumatic control valve is a device used in industrial automation systems to regulate fluid flow. It consists of a pneumatic actuator and a valve body, using compressed air to drive the valve. Accessories like positioners, converters, solenoid valves, and lock-up valves enable precise on-off or proportional control. Pneumatic control valves receive signals from the automation system to adjust flow rate, pressure, and temperature, ensuring stable and efficient operations. Due to their design and environmental requirements, they undergo rigorous pressure tests to verify performance, durability, and safe operation.
Structure and Working Principle of Pneumatic Control Valves
The structure of a pneumatic control valve mainly consists of two parts: the valve body and the pneumatic actuator. The valve body serves as the pathway for the fluid, while the pneumatic actuator, driven by compressed air, moves the valve stem to adjust the fluid flow. The valve body is typically made of corrosion-resistant metals or alloys, suitable for various harsh working environments. The pneumatic actuator primarily consists of a cylinder, piston, and spring, enabling quick opening and closing of the valve as well as precise control.
The working principle of a pneumatic control valve involves converting signals from the control system into pressure changes of compressed air. This air pressure is then converted into stem displacement by the positioner, which in turn controls the position of the valve plug, adjusting the flow area of the fluid. By altering the flow path, the pneumatic control valve can precisely control parameters such as flow rate, pressure, and temperature of the fluid.

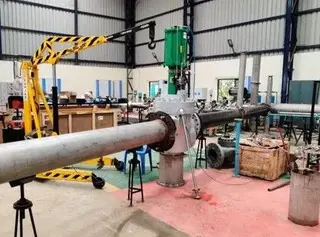

Pressure Test Procedures and Requirements
To ensure the reliability and safety of pneumatic control valves in actual applications, various pressure tests are typically required. These tests include strength pressure tests, tightness tests, air tightness tests, and leakage tests.
1. Pressure Testing of the Valve Component
Strength Pressure Test: This test is conducted to verify the structural strength of the valve body under high pressure and the durability of its materials. During the test, the valve should be fully open, and the test medium should be room temperature water, which may include anti-rust agents or water-soluble oil. The test pressure is set at 1.5 times the nominal pressure of the valve, and the test duration should be no less than three minutes. All pressure-bearing cavities of the valve should not exhibit any leakage during the test.
Tightness Test: The purpose of this test is to check the sealing performance of the valve packing and other connections to ensure there is no leakage under working pressure. The test medium is also clean water or water-soluble oil with anti-rust agents. The test involves careful observation of the sealing performance of all parts of the valve.
Leakage Test: The objective of the leakage test is to evaluate the sealing performance of the valve when in the closed position. The test pressure is typically set at 0.35 MPa. If the valve design allows for a differential pressure of less than 0.35 MPa, testing should follow the values specified in the design documents. For air-to-open control valves, the pneumatic signal pressure should be zero during testing; for air-to-close control valves, the signal pressure should be the upper limit of the input signal plus 20 kPa. The signal pressure for shut-off type control valves should be as specified in the design documents.
2. Pressure Testing of the Actuator Component
Strength Pressure Test: For the pneumatic actuator, the strength pressure test is crucial to ensure the actuator's ability to operate normally under high pressure. The valve should be fully open during the test, with the test medium being clean water. The test pressure should be 1.5 times the nominal pressure, and all pressure-bearing cavities must withstand the pressure for no less than three minutes without any leakage.
Air Tightness Test: The air tightness test of the actuator's air chamber is used to verify its sealing performance under rated air pressure. During the test, clean air or nitrogen is introduced into the diaphragm air chamber at a rated pressure of 0.1 MPa. After cutting off the air supply, the air chamber pressure should not drop within five minutes, ensuring no gas leaks during operation, thus maintaining control accuracy and stability.
The Necessity of Testing Pneumatic Control Valves
Comprehensive pressure testing of pneumatic control valves before use is vital. It serves as a stringent quality control measure and ensures reliable operation under various working conditions. Through strength pressure tests, tightness tests, air tightness tests, and leakage tests, the performance and durability of pneumatic control valves can be fully validated, ensuring their stable function in production processes.
In the field of industrial automation, the reliability of pneumatic control valves directly impacts the safety and efficiency of the entire production system. Adhering to rigorous testing procedures can effectively prevent shutdowns and accidents caused by valve failures, extend the service life of equipment, reduce maintenance costs, and improve production continuity and economic efficiency. Therefore, comprehensive pressure testing of pneumatic control valves is not only a core requirement of quality management but also a crucial measure for ensuring safe production in enterprises.
