What Influence Sealing Performance of Pneumatic Ball Valves?

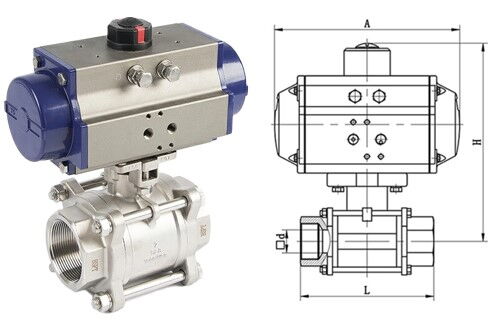

The sealing performance of pneumatic ball valves is crucial for their proper operation, directly impacting the safety and reliability of fluid systems. Effective sealing not only prevents media leakage but also reduces environmental pollution and safety hazards. The primary factors affecting sealing performance include the structure of the sealing pair, the sealing surface pressure, the physical properties of the medium, and the quality of the sealing pair. A deep understanding of the sealing principles of pneumatic ball valve, along with consideration of these factors, is essential for preventing leaks and ensuring effective sealing.

Structure and Quality of the Sealing Pair


The quality of the sealing pair is a fundamental factor affecting the sealing performance of pneumatic ball valves, manifested in several key aspects.

1. Shape of the Ball


The geometric shape of the ball, particularly its roundness, is critical for sealing effectiveness. An ideal ball should possess high roundness to ensure good contact with the valve seat. Insufficient roundness can lead to excessive gaps at the contact surface, compromising sealing performance.

2. Surface Finish


The smoothness of the sealing surface directly influences sealing performance. A sealing surface with high surface finish can effectively reduce media leakage and enhance sealing efficiency. Precision machining processes are typically employed during manufacturing to ensure a smooth surface without significant defects.

3. Material Selection


The materials used for the sealing pair are also crucial. The elasticity, wear resistance, and corrosion resistance of different materials affect sealing performance. For instance, while soft sealing materials may provide better sealing, their temperature resistance may be inadequate. Therefore, it is essential to choose appropriate materials based on specific application scenarios.

Sealing Surface Pressure


Sealing surface pressure is another important factor influencing sealing effectiveness. It refers to the pressure applied per unit area on the sealing surface, typically determined by the pressure difference across the valve and the externally applied sealing force. Proper sealing pressure can enhance sealing performance, but excessive pressure can increase the operating torque of the valve, making operation difficult. Thus, it is necessary to reasonably select sealing pressure during the design phase to ensure both effective sealing and convenient operation.
Leakage and Pressure Relationship: Studies show that leakage is proportional to sealing pressure, and appropriate sealing pressure can effectively suppress leakage. However, in certain situations, excessively low pressure may lead to leakage issues, necessitating a balance between the two.

Physical Properties of the Medium


The physical properties of the medium, particularly viscosity, temperature, and phase state, significantly impact the sealing performance of pneumatic ball valves.

1. Viscosity


The viscosity of a fluid affects its permeability. Under the same conditions, fluids with higher viscosity tend to have lower permeability, thus requiring lower sealing performance. Conversely, for gases, particularly in high or low-temperature environments, viscosity changes can lead to leakage. Therefore, the viscosity of the medium should be carefully considered when selecting valves.

2. Temperature


Temperature plays a critical role in sealing performance. As temperature changes, the viscosity of the fluid also alters; typically, the viscosity of liquids decreases with increasing temperature, while that of gases may increase. Such variations can cause fluctuations in sealing pressure, impacting sealing effectiveness. In low-temperature applications, the performance of many sealing materials can deteriorate, necessitating consideration of working temperature when selecting sealing materials.

3. Phase State


Changes in the phase state of the medium (such as gas turning into liquid or vice versa) can also affect sealing performance. This is particularly true in ultra-low temperature environments, where the physical properties of materials can change significantly, warranting careful consideration during design.

Structural Dimensions


The structural dimensions of the sealing pair also have a direct impact on sealing performance.

1. Structure of the Sealing Pair


The sealing pair is not absolutely rigid; it may deform under sealing force or temperature changes. This deformation can reduce the contact quality of the sealing surfaces, necessitating consideration of the elasticity of sealing components in the design to compensate for such changes.

2. Width of the Sealing Surface


The width of the sealing surface determines the fluid's flow path along the sealing area. Increasing the width can reduce leakage but also requires greater sealing force, thereby increasing operational difficulty. Hence, a reasonable selection of sealing surface width is essential to maintain sealing while ensuring operational flexibility.

3. Size of the Sealing Ring


In ultra-low temperature pneumatic ball valves, special attention should be paid to the design of the sealing ring size. For instance, PCTFE sealing rings have a linear expansion coefficient at low temperatures that is much higher than that of metals, potentially leading to contraction under low-temperature conditions and affecting sealing pressure. Therefore, the impact of sealing ring size contraction at low temperatures should be considered in the design, with cold assembly processes employed to ensure sealing effectiveness.

Conclusion


In summary, the sealing performance of pneumatic ball valves presents a multifaceted challenge. Understanding and optimizing the structure of the sealing pair, sealing pressure, medium properties, and dimensions can significantly enhance the sealing capabilities of ball valves, ensuring stable operation across various working conditions. It is essential to pay close attention to these influencing factors during the design and selection of valves to achieve optimal sealing performance, thereby ensuring the safety and reliability of the system.
