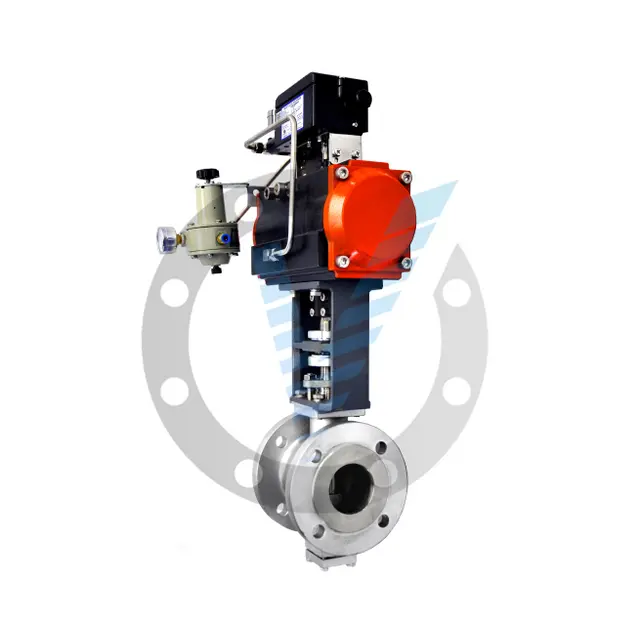

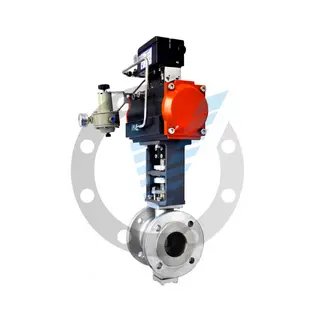

What is a Full-Function Lightweight Control Valve?


The Full-Function Lightweight Control Valve represents a significant advancement in modern valve technology, incorporating numerous cutting-edge design concepts and technologies. This control valve enhances control precision and reliability while excelling under various challenging conditions. Below is a detailed overview of the Full-Function Lightweight Control Valve's key features, technical characteristics, and applications.

Control Functionality


The Full-Function Lightweight Control Valve stands out in control functionality, making it a preferred choice for modern industrial process control. The valve's control performance affects not only its precision but also the overall efficiency and stability of the system. Key aspects of its control functionality include the following.

1. Flow Characteristics


The valve offers exceptional flow characteristics, allowing precise fluid flow regulation. Its flow-to-opening characteristic curve is meticulously engineered to provide stable control across a broad flow range. This ensures consistent performance under various operational conditions, enhancing system efficiency and stability.

2. Adjustable Range (R)


With an adjustable range up to 100, the valve provides fine flow control even within very narrow opening ranges. This high adjustable range enables the valve to meet diverse and complex operational demands, achieving more precise flow regulation.

3. Performance at Small Openings


The valve maintains excellent control performance even at small openings, crucial for applications requiring precise control under low flow conditions, such as trace addition in chemical processes or precision liquid dispensing. Its performance at small openings ensures stability and reliability in delicate operations.

4. Flow Coefficient (Kv)


The valve's flow coefficient (Kv) is significantly higher than that of traditional single and double-seat valves and sleeve valves, reaching up to 2 to 3 times their values. This allows the valve to handle higher flow loads, improving overall system efficiency.

5. Adjustment Speed


The valve features rapid adjustment response speeds, enabling it to quickly adapt to changes in system demands. This fast response capability is essential for processes with dynamic load variations, ensuring stable system operation under varying conditions.

Shutoff Function


The shutoff function is a critical quality indicator for valves. The Full-Function Lightweight Control Valve has a standard leakage rate of 10^-10, which is 100 to 1000 times lower than that of traditional single and double-seat valves and sleeve valves. This excellent sealing performance ensures minimal leakage when the valve is fully closed, enhancing system safety and cost-effectiveness.

Pressure Differential Capability


The valve performs effectively under large pressure differentials. Traditional double-seat valves can handle larger pressure differentials but have higher leakage rates, while single-seat valves, though with lower leakage, have limited pressure differential capabilities. The Full-Function Lightweight Control Valve excels in both high pressure differential and low leakage requirements, with allowable pressure differentials up to PN values, addressing challenges faced by traditional valves in high-pressure and low-leakage scenarios.

Corrosion Resistance


Corrosion resistance is vital for ensuring reliable long-term operation in corrosive media. The valve is constructed from highly corrosion-resistant and erosion-resistant materials, such as special alloys and coatings, which effectively withstand various chemical corrosions and mechanical wear. This design extends the valve's service life, reduces maintenance and replacement frequency, and lowers overall operational costs.

Anti-Blockage Function


The anti-blockage feature ensures the valve operates smoothly when handling dirty media. Designed based on fluid dynamics principles, the valve has simplified flow paths, reduced dead zone vortices, and features that prevent media sedimentation. Its self-cleaning capability is particularly suited for high-viscosity, suspended liquids, paper pulp, concentrated slurries, and media containing particles, effectively preventing blockage and ensuring continuous stable operation.

Pressure Resistance


Pressure resistance is essential for safe valve operation. The valve features a one-piece integrated structure, enhancing overall integrity and pressure strength. High-pressure versions use forged structures, with pressure resistance exceeding 32 MPa. This robust design ensures reliability and safety in high-pressure environments, making it suitable for various high-pressure applications.

Temperature Resistance


Temperature resistance allows the valve to operate reliably across different temperature conditions. The valve employs a combination of rigid and flexible sealing technology to address issues caused by expansion at high temperatures. High-temperature resistant packing ensures reliable sealing of the valve stem in extreme conditions. This design enables the valve to adapt to diverse temperature environments, broadening its application range.

Appearance and Weight


The valve's design emphasizes miniaturization and lightweight construction, reflecting modern design trends. It features an integrated body structure and optimized appearance, with a straightforward and reliable connection to actuators. This compact design reduces the valve's size and weight by 60-80% compared to traditional valves, improving installation and transportation convenience and meeting modern instrumentation requirements.

The Full-Function Lightweight Control Valve excels across various performance metrics, including efficient control functionality, superior sealing, corrosion resistance, anti-blockage capability, pressure resistance, and temperature tolerance. Its compact and lightweight design further enhances its practical advantages, making it an ideal choice for a wide range of industrial applications. Whether dealing with high pressure, large flow, or extreme temperatures, this valve provides stable and reliable control, meeting the demands of complex operating conditions.
