What is a Scotch Yoke Pneumatic Actuator?


A Scotch Yoke pneumatic actuator is a widely used device in industrial automation control systems, particularly suited for the precise control of 90° rotation valves, such as ball valves, butterfly valves, and plug valves, for on/off or modulating control. Through its unique mechanical design, the Scotch Yoke actuator efficiently converts linear motion into rotary motion, enabling accurate control of various types of control valves. This article will provide a comprehensive overview of the working principle, classification, advantages, torque output characteristics, and application scenarios of Scotch Yoke pneumatic actuators, aiming to offer readers a thorough understanding of their role in valve automation.

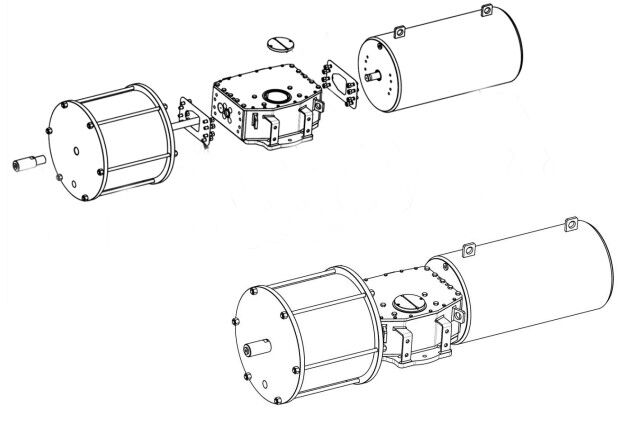

Working Principle of Scotch Yoke Pneumatic Actuator


The core working principle of a Scotch Yoke pneumatic actuator involves compressed air entering the cylinder, driving the piston in a linear motion. The unique design of the piston and the yoke's U-shaped groove allows this linear motion to be converted into the yoke's rotational movement. This rotation, in turn, drives the output shaft to rotate, thereby controlling the opening and closing of the valve. This process ensures high efficiency and precision, allowing the actuator to operate reliably in industrial environments over extended periods, making it ideal for controlling a wide range of control valves.

Classification of Scotch Yoke Pneumatic Actuators


Scotch Yoke pneumatic actuators can be categorized based on their actuation type, structure, and materials, each suited to specific control valve applications.

1. By Actuation Type


Single-Acting Scotch Yoke Actuator: Powered by an air source only during opening; it uses an internal spring to return to the closed position. This design simplifies the use of the air source and is practical for applications requiring unidirectional valve operation, such as emergency shut-off valves.

Double-Acting Scotch Yoke Actuator: Uses air power for both opening and closing actions, making it suitable for applications requiring precise bidirectional control of valves, such as control valves used for throttling and flow regulation.

2. By Structure


Single Cylinder Piston Scotch Yoke Actuator: Utilizes a single-cylinder structure, suitable for applications with moderate torque requirements, such as small to medium-sized control valves.

Double Cylinder Piston Scotch Yoke Actuator: Employs a double-cylinder structure, providing higher torque output, ideal for high-load applications, including large butterfly and ball valves in control systems.

3. By Material


Aluminum Alloy Scotch Yoke Actuator: Lightweight and highly corrosion-resistant, suitable for light industrial applications, such as in HVAC systems where smaller control valves are used.

Stainless Steel Scotch Yoke Actuator: Offers excellent corrosion resistance and strength, making it ideal for heavy-duty industrial applications in harsh environments, such as chemical processing plants where control valves handle corrosive fluids.

Carbon Steel Scotch Yoke Actuator: High strength, suitable for high-intensity applications, but with relatively lower corrosion resistance, often used in robust control valve applications where the environment is less corrosive.

Advantages of Scotch Yoke Pneumatic Actuators


Compared to traditional rack-and-pinion actuators, Scotch Yoke pneumatic actuators have several notable advantages, particularly in the control of various types of control valves.

1. Compact Structure


The design of Scotch Yoke actuators results in smaller size and weight, especially the single-cylinder design, which is half the size of a double-cylinder rack-and-pinion actuator. This makes it ideal for space-constrained environments and for mounting on control valves where space is limited.

2. High Efficiency Transmission


Scotch Yoke actuators use a "single-cylinder double-piston-yoke variable torque" transmission structure. This design can adjust output torque according to the valve's opening angle, providing maximum torque when the valve is opening or closing. This avoids torque wastage and improves transmission efficiency, which is crucial for control valves that require precise torque control across the valve's stroke.

3. Precise Control


The output torque of Scotch Yoke actuators can change with the angle, making them particularly suitable for applications requiring precise control, such as in modulating control valves where accurate positioning is essential. The low friction also enhances operational efficiency and extends service life, reducing maintenance needs for critical control valve applications.

4. Explosion-Proof Design


Scotch Yoke actuators meet explosion-proof requirements, making them suitable for control systems in various hazardous environments, such as in oil and gas or chemical industries where control valves must operate safely under explosive conditions.

Torque Output Characteristics


The torque output characteristics of Scotch Yoke pneumatic actuators vary depending on their internal mechanism design, which is critical for selecting the right actuator for specific control valve applications.

1. Symmetrical Steel Yoke Mechanism


This design provides a balanced torque curve, suitable for controlling ball valves and plug valves that require uniform torque output, ensuring consistent control throughout the valve operation.

2. Inclined Steel Yoke Mechanism


This design offers higher starting torque and lower running torque, ideal for controlling butterfly valves, as it provides greater torque when starting the valve, which is beneficial for overcoming the initial resistance of large control valves.

Application Scenarios


Scotch Yoke pneumatic actuators are widely used in various control valve applications requiring 90° rotation control, particularly excelling in the following scenarios.

1. Oil and Gas Industry


The high efficiency and durability of Scotch Yoke actuators make them widely used for valve control in oil and gas pipelines, where precise control of flow and pressure is essential.

2. Chemical and Pharmaceutical Industries


Their corrosion resistance and explosion-proof design make Scotch Yoke actuators highly suitable for harsh environments in chemical and pharmaceutical industries, where control valves must handle aggressive chemicals and maintain safety standards.

3. Water Treatment and Environmental Protection Industry


In water treatment and wastewater treatment plants, Scotch Yoke actuators are used to control various valves, achieving precise fluid control necessary for effective treatment processes.

4. Power Generation and Energy Industry


Due to their efficiency and reliability, Scotch Yoke actuators are widely used for valve control in power plants and energy facilities, ensuring optimal operation of control valves in steam and cooling systems.

Overall, the Scotch Yoke pneumatic actuator, with its unique design and superior performance, shows great potential in industrial automation control, especially for control valves. Whether in torque output, compact structure, or operational efficiency, Scotch Yoke actuators offer solutions superior to traditional actuators. As technology continues to innovate and the range of applications expands, the position of Scotch Yoke actuators in the industrial control field, particularly in valve automation, will become more established and significant.
