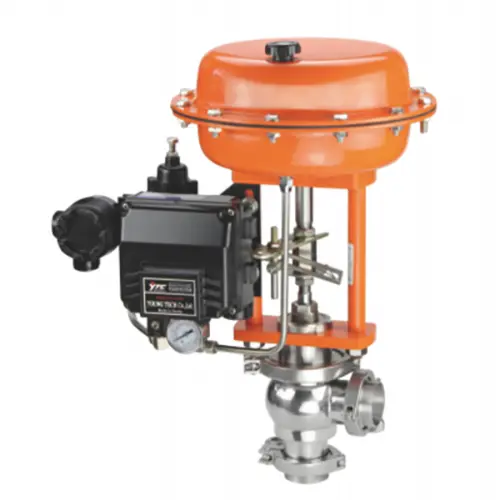

Pneumatic Sanitary Control Valve, SS 304,316,316L, 1/2-4 IN

Name: Pneumatic Sanitary Control Valve, SS 304,316,316L, 1/2-4 IN
SKU: cncv-240705-ucv-01
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no.: CNCV-240705-UCV-01

Our pneumatic sanitary control valve plant specializes in stainless steel control valves, offering options in SS 304, SS 316, and SS 316L materials. These valves feature PTFE sealing for optimal performance and reliability. Available in sizes ranging from 1-1/2 to 4 inches, they are rated for Class 150 to 300 LB pressures. Valves can be configured with welded, threaded, or flanged ends, catering to various installation requirements in sanitary applications.

Detail Information

Product Name: Pneumatic Sanitary Control Valve
Body Material: Stainless Steel SS 304, SS 316, SS 316L
Sealing Material: PTFE
Size Range: 1-1/2-4 Inch, DN40-DN100
Pressure Rating: PN16-PN25, Class 150-300 LB
End Connections: Welded, Threaded, Flanged, Clamp
Medium: Dairy, Beverage, Food, etc.
Working Temperature: -20°C to +150°C
Flow Characteristics: Equal Percentage, Linear, Quick Open
Actuator Options: Pneumatic Actuators
Air Supply: 5 to 8 bar

The pneumatic sanitary control valve is designed for high-precision sanitary processes that require stringent control over flow and pressure. It utilizes a measurement filing system for mixing and titration. This type of valve is primarily utilized in industries such as dairy, beverages, food, biotechnology, pharmaceuticals, and cosmetics.
