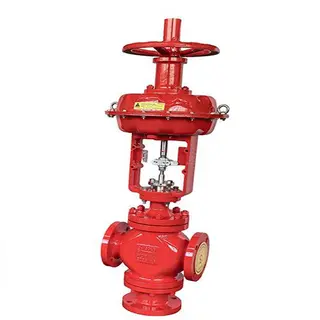

Product Name: SCPH2 Globe Control Valve
Key Features: Pressure Balanced Cage Type, Single Seat
Material: JIS SCPH2, ASTM A216 WCB
Size: 3 Inch, DN80
Pressure: 20K, Class 300 LB, PN50
End Connection: Flanged
Product Range
Size Range: 3/4 - 16 Inch, DN20-DN400
Pressure Rating: Class 150-600 LB, PN20-PN100, JIS 10K-40K
Body Material: JIS SCPH2, ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3, CF3M
End Connection: Flanged, Welded, Threaded
Flow Characteristics: Equal Percentage, Linear
Temperature Range: -196℃ to +450℃
Seat Leakage: ANSI B16.104 Class II (Metal Seat), Class VI (Soft Seat)
Actuator Options:
1. Single Acting Diaphragm Actuator
2. Spring Type Piston Actuator
3. Double Acting Piton Actuator
