Product Name: Top Entry
Ball Control Valve
Type: Top Entry Ball Valve
Body Material: ASTM A182 F304, SS 304
Size: 1-1/2 Inch, DN40
Pressure: Class 150 LB, PN20
End Connection: Flanged
Actuation: Pneumatic Actuator
Flow Characteristics: Quick Open
Product Range
Standard: ASME, DIN, JIS, GB, etc
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: 1/2-10 Inch, DN15-DN250
Pressure Rating: PN16-PN100, Class 150-600 LB
Medium: Water, Oil, Gas, Acid, Steam
Working Temperature: -29°C to +560°C
End Connections: Flnaged, Welded, Threaded
Leakage Class: Fci 70-2 Class V, Class VI
Actuator Options: Pneumatic Actuators
Travel: 90°
Air Pressure: 0.4-0.6 MPa
Optional Accessories: Volume Boosters, Position Transmitters, Limit Switches, Solenoid Valves, Handwheels, etc

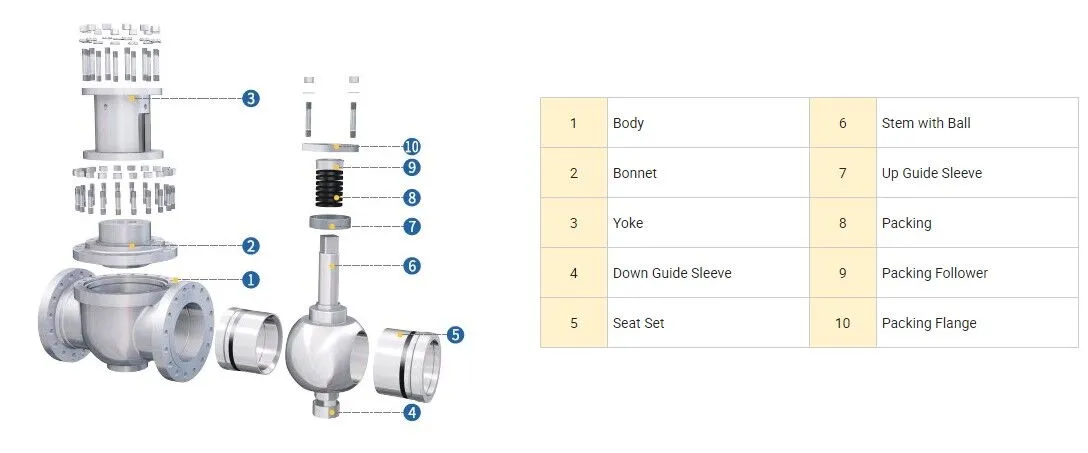

Top Entry Ball Control Valve Features
The Top Entry Ball Control Valve is an innovative solution tailored for the oil and gas industry, focusing on reduced operational effort and simplified maintenance. Here are the detailed features that highlight its design and functionality:
1. Dual O-Ring Seals: This design ensures a tight seal around the stem area, preventing any potential leakage and maintaining the integrity of the valve.
2. Blow-out Proof Stem: A critical safety feature that guarantees the stem remains sealed under all pressure conditions, providing reliable operation and preventing accidental release.
3. Backup Metal-to-Metal Sealing: In the unlikely event that the primary soft-seat materials are compromised, such as in a fire scenario, the metal-to-metal sealing acts as a secondary barrier to ensure shutoff capability.
4. Integral One-piece Body: The valve's body is constructed as a single piece, offering the same structural rigidity as the pipeline itself, which ensures consistent performance and durability.
5. O-Ring and Gasket Seal Combination: This combination provides an additional layer of protection against leakage at the body connection area, further enhancing the valve's sealing performance.
6. Floating Spring-loaded Seats: These seats are designed to maintain a seal even at low pressures, ensuring the valve's effectiveness across a wide range of operating conditions.
7. Emergency Sealant Injection Fitting: This feature allows for external intervention in the event of a seat leak. By injecting a sealant, operators can quickly address the issue and restore the valve's sealing capabilities.
