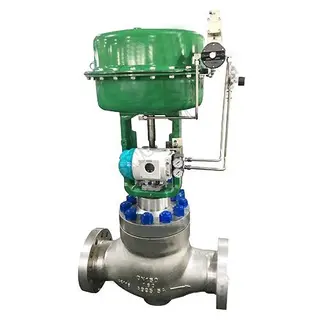

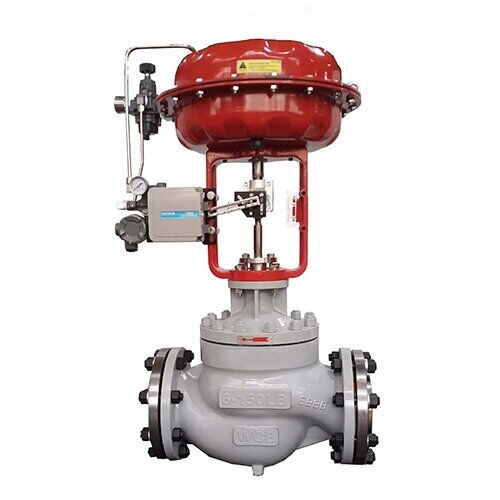

Product Name: ASTM A216 WCB Globe Control Valve
Material: ASTM A216 WCB
Size: 6 Inch, DN150
Pressure: Class 150 LB, PN16
Connection: Flanged
Actuator: Multi-spring Pneumatic Diaphragm Actuator
Product Range
Size Range: 1/2-10 Inch, DN15-DN250
Pressure Rating: Class 150-600 LB, PN16-PN100
Body Material: ASTM A216 WCB, ASTM A217 WC6, WC9, ASTM A351 CF8, CF8M, CF3, CF3M
Connection: Flanged, Butt Welding
Temperature Range: -40 °C to +450 °C
Leakage Class: ANSI B16.104 Class IV (Metal Seat); Class VI (Soft Seat)
Flow Characteristic: Linear, Equal Percentage, Quick Open
Rangeability: 50:1
Actuator Options: Pneumatic Diaphragm, Pneumatic Piston, Electric, Electric Hydraulic Actuators
