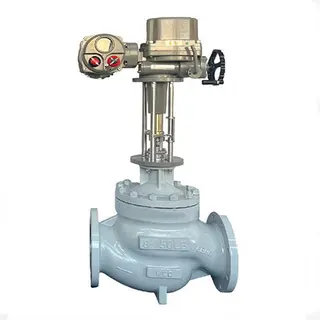

Product Name: ASTM A351 CF8 Globe Control Valve
Key Features: Cage Sleeve Guide, Single Seat, Electric Actuator
Material: ASTM A351 CF8
Size: 1-1/2 Inch, DN40
Pressure: Class 150 LB, PN16
Connection: Flanged
Product Range
Size Range: 3/4-12 Inch, DN20-DN300
Pressure Rating: Class 150-600 LB, PN16-PN100
Body Material: ASTM A216 WCB, ASTM A351 CF8, CF8M, CF3M
Connection: Flanged, Welded, Threaded
Temperature Range: -40 °C to +450 °C
Flow Characteristic: Linear, Equal Percentage
Electric Actuator Basics:
Power Supply: AC 220V 50 Hz
Input Signal: DC 4-20 mA, DC 1-5 V
Output Signal: DC 4-20 mA
