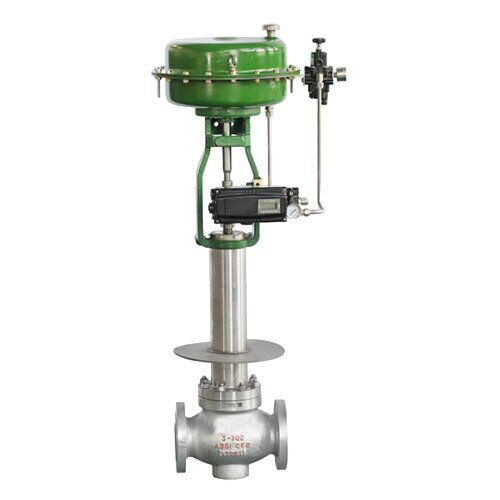

Product Name: Single Seated Globe Control Valve
Key Features: Small Port, Cage Guided, Single Seated
Material: ASTM A351 CF8M
Size: DN20, 3/4 Inch
Pressure: PN50, Class 300 LB
End Connection: Flanged
Actuator: Multi-spring Pneumatic Diaphragm Actuator
Product Range
Body Material: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3, CF3M
Size Range: 3/4-3 Inch, DN20-DN80
Pressure Rating: Class 150-600 LB, PN16-PN100
Leakage: ANSI B16.104 Class II (Metal Seat), ANSI B16.104 Class VI (Soft Seat)
End Connection: Flanged, Welded, Threaded
Temperature Range: -196°C to +450°C
Flow Characteristic: Linear, Equal Percentage
Actuator Options:
1. Single Acting Diaphragm Actuator
2. Spring Type Piston Actuator
3. Double Acting Piston Actuator
