Addressing Feedback Signal Issues in Electric Control Valves
On this page

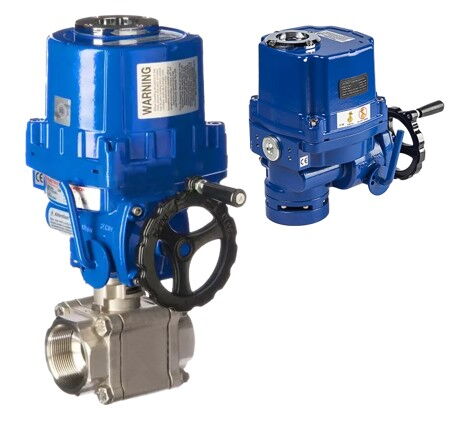

Electric control valves play an indispensable role in modern automation control systems. Their primary function is to regulate the flow, temperature, and pressure of fluids, ensuring the efficient and stable operation of the system. The accuracy of feedback signals directly impacts the performance and response speed of the control system. This article will analyze the direct and indirect causes of feedback signal deficiencies in electric control valves and provide effective solutions to enhance system reliability.
Direct Cause Analysis
Electric control valves are typically designed without a separate position indicator, relying instead on the potentiometer integrated within the electric actuator to provide feedback on valve position. The working principle of the potentiometer is as follows:
Rotation Signal Calculation: The electric actuator monitors its rotation via the potentiometer, calculating the valve's travel. The potentiometer's signal undergoes multi-stage gear transmission, which may introduce errors, resulting in a discrepancy between the feedback signal and the actual valve position.
Potential Impacts
Decreased Control Precision: Inaccurate feedback signals may prevent the control system from precisely adjusting fluid parameters, thereby affecting the overall stability and efficiency of the system.
Risk of Equipment Damage: Prolonged signal deviation can lead to overworking or frequent switching of the valve, increasing equipment wear and shortening its lifespan.
Indirect Cause Analysis
When electric control valves are used in closed-loop control systems, the precision requirements for valve position signals are higher than those for standard valves. These indirect causes include:
Complexity of Closed-Loop Control: Closed-loop systems require real-time feedback on valve position so that the system can rapidly adjust control signals. If the valve position information from the actuator is inaccurate, it can lead to system response delays or over-adjustments.
Environmental Factors: External conditions such as temperature fluctuations, vibrations, or electromagnetic interference can impact the stability of the potentiometer's operation, further diminishing the reliability of feedback signals.
Potential Consequences of Indirect Causes
Delayed System Response: In applications requiring quick responses, such as in the chemical and pharmaceutical industries, inaccurate feedback signals may lead to product quality issues.
Safety Hazards: If the valve position signal is distorted, it can cause system anomalies that might even lead to safety incidents.
Causes of Feedback Signal Absence in Actuators
If the actuator of an electric control valve fails to provide feedback current signals, the following steps can be taken to troubleshoot and ensure normal system operation.
1. Check Wiring
Verify that all wiring connections are correct, ensuring that positive and negative terminals are properly connected.
Ensure that the mA ammeter is functioning correctly and can accurately measure current.
2. Manual Testing of the Actuator
Manually move the actuator to its full travel position and observe whether it stops at the dead point of the potentiometer. If it stops at the dead point, adjust the potentiometer position to restore the feedback signal.
3. Check Feedback Loop
Confirm whether the feedback loop is active or passive. A passive loop should be directly connected to the ammeter for current output testing, while an active loop requires voltage confirmation according to the manual (usually 24V DC).
4. Use a Multimeter for Testing
Measure directly at the signal feedback terminal of the actuator to check for current output. If no current is output, the feedback module may be damaged and needs replacement.
Handling Inverted Feedback Signals
In some cases, the upper and lower limits of feedback signals may become inverted, such as receiving a 4mA feedback signal when the valve is closed and 0mA when it is open. The following measures can be taken.
1. Adjust the DIP Switch
Depending on the actuator type, the feedback and input signals can be easily switched by adjusting the DIP switch to change the action from direct to reverse.
2. Rewiring
Some actuators may have DIP switches that only alter the input signal without affecting the feedback signal. In this case, the lines of the potentiometer and the motor must be completely reversed to ensure that the feedback corresponds with the input signal.
Potentiometer Voltage Measurement and Debugging
To ensure that the feedback signal of the electric control valve operates normally, the following debugging steps are necessary.
Test the Valve in Fully Closed Position: Adjust the electric control valve actuator to the fully closed position.
Voltage Measurement: Use a multimeter to measure the voltage at the center axis of the valve position potentiometer relative to ground (GND), ensuring that this voltage increases as the valve opens. If the voltage does not meet the required specifications, swap the wires at terminals 11 and 13 and reconnect.
Adjust Voltage Value:Ensure that the voltage value is less than 0.5V when the electric device is in the fully closed position, and adjust the potentiometer to maintain a voltage value between 0.1V and 0.5V.
Actuator Motion Testing: Move in the opening direction for 5-10 seconds, adjusting the zero-setting potentiometer until the voltage difference is ≤2mV; at this point, the output current signal should be 4mA.
Calibrate the Output Current Signal: Move to the fully open position and adjust the "20mA" potentiometer on the module to ensure the output current signal reaches 20mA. This adjustment usually only needs to be performed once.
Conclusion
The absence of feedback signals in electric control valves may stem from design flaws, system requirements, and wiring issues, among other factors. Through systematic troubleshooting and debugging, the issue of missing feedback signals can be effectively resolved, ensuring system stability and reliability. Enhancing the maintenance and management of electric control valves will contribute to improving the overall performance of automation control systems, helping enterprises save costs and enhance efficiency.
