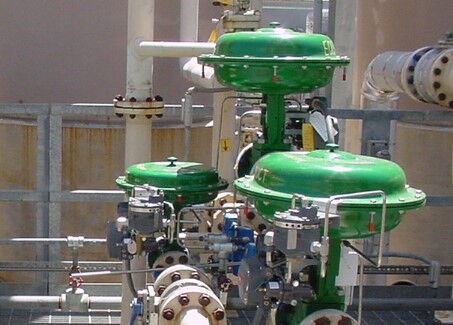

Allowable Pressure Differential in Control Valves

The allowable pressure differential of a control valve is a critical performance parameter, directly impacting the valve's efficiency and reliability within a system. Choosing the appropriate allowable pressure differential involves several factors, including valve size, actuator thrust, fluid properties, and operating conditions. Correct selection ensures that the control valve operates efficiently and safely, while an improper choice can lead to poor valve performance, decreased system efficiency, or even system failure. This article analyzes the factors influencing allowable pressure differential, selection principles, and common misconceptions.

Factors Influencing Allowable Pressure Differential

The allowable pressure differential of a control valve is closely related to the following key factors.

1. Control Valve Size

The size of the control valve directly impacts its allowable pressure differential. Generally, the larger the valve size, the smaller the allowable pressure differential. This is because a larger valve size increases the flow rate, which in turn increases the resistance to flow. As a result, the pressure differential that the valve can withstand is reduced. To ensure stability, larger valves typically require more efficient actuators and stronger sealing capabilities.

2. Actuator Thrust

The size of the actuator's thrust is also a significant factor in determining the allowable pressure differential. A larger actuator thrust allows the valve to handle a higher pressure differential. The thrust is responsible for closing the valve, and with a higher pressure differential, a stronger actuator ensures the valve can still open or close smoothly under high-pressure conditions. However, excessive thrust can result in a larger actuator, increasing both the cost and space requirements. Therefore, selecting an appropriate actuator thrust is key to ensuring system stability.

3. Valve Structure

The structural design of the control valve determines its performance under varying pressure differentials. For example, a single-seat control valve, with a simple design, is typically used in low-pressure differential applications. Although single-seat valves are cost-effective and have low leakage, they cannot handle higher pressure differentials and may be unsuitable for medium or high-pressure systems. In such cases, more complex valve designs, such as multi-seat valves or custom-designed valves, may be required.

4. Fluid Properties and Operating Conditions

The nature of the fluid (e.g., viscosity, density, corrosiveness) and the operating conditions (e.g., temperature, flow rate, pressure) also affect the allowable pressure differential. For example, high-viscosity fluids tend to increase flow resistance, raising the pressure differential. In high-temperature or high-pressure environments, the control valve structure and materials need to be designed for higher pressure and temperature resistance.

Principles for Selecting Allowable Pressure Differential

Correctly selecting the allowable pressure differential requires consideration of the following important principles.

1. Maximum Operating Pressure Differential

When ordering control valves, the maximum operating pressure differential should be listed as one of the most critical parameters. If the maximum operating pressure differential is not specified, it can lead to incorrect valve selection, resulting in performance issues such as improper actuator thrust, incorrect valve structure, or failure to meet system requirements. Users should ensure that the maximum operating pressure differential is clearly provided during the ordering process to facilitate accurate control valve selection.

2. Handling Simple Pressure Reduction Control Systems

For simple pressure reduction control systems, the allowable pressure differential is typically equal to the required pressure drop. For instance, in systems where gas or liquid flow rates are relatively stable, the pressure reduction demand is clear, and the allowable pressure differential can be selected without much complexity.

3. Pressure Differential Under Normal and Abnormal Conditions

When selecting the allowable pressure differential, it's important not to rely solely on the normal operating pressures at the control valve inlet and outlet. As the valve gradually closes, the pressure at the inlet may increase and exceed the normal working differential pressure. For example, in an industrial boiler feedwater system, the rated pressure of the feedwater pump may be 6.0 MPa, with a normal inlet pressure of 4.0 MPa. However, as the valve closes, the inlet pressure may rise, potentially exceeding the calculated pressure differential under normal working conditions.

4. Pressure Differential Fluctuations Due to Changing Operating Conditions

Many systems experience significant fluctuations in operating conditions, which can cause the pressure differential to vary. For example, in a boiler feedwater system, the pressure differential across the control valve may fluctuate due to changes in water usage. In some cases, a valve with a large opening may not close effectively. This often occurs under abnormal operating conditions, so it's important to consider potential maximum pressure differentials during valve selection to ensure the valve can function properly in extreme situations.

5. Flexibility in Actuator Thrust Selection

Many domestic manufacturers do not provide sufficient flexibility in actuator thrust selection, which can lead to the misconception that once the control valve size and structure are determined, the allowable pressure differential is also fixed. Companies like Shenzhen Wanxun Control offer multiple actuator thrust options, allowing users to adjust the thrust according to actual operating conditions. This approach helps avoid reliance on a single valve structure, ensuring stable operation under varying conditions.

Common Misconceptions and Corrective Measures

During the control valve selection process, common misconceptions can arise, leading to valves that fail to meet actual operating conditions and potentially affecting the overall stability and safety of the system. Below are several common misconceptions and their corresponding corrective measures.

1. Ignoring the Impact of Operating Condition Fluctuations

Many designers rely too heavily on theoretical calculations under normal working conditions, overlooking the potential fluctuations in actual operating conditions. These fluctuations can lead to pressure differentials much higher than the calculated values. Therefore, when selecting a control valve, it's important to consider the maximum potential pressure differential and account for extreme operating conditions to ensure sufficient safety margins.

2. Insufficient Actuator Thrust

Since most domestic control valve catalogs do not offer sufficient thrust selection, users may mistakenly believe that once the valve structure and size are determined, the actuator thrust is also fixed. In reality, actuator thrust should be selected based on the required pressure differential. Shenzhen Wanxun Control addresses this issue by providing 3 to 5 thrust options, allowing users to choose the appropriate thrust based on actual conditions, thus avoiding unnecessary system waste caused by excessive thrust.

3. Over-simplified Selection Calculations

While some selection calculations can be simplified, such as flow coefficient and flow characteristic selection, steps like unbalanced force checks should not be neglected. Ignoring these steps may result in control valve malfunction, leakage, or even damage, particularly under high-pressure differential conditions.

Conclusion

Selecting the allowable pressure differential for a control valve is a complex process that involves multiple factors. Users must accurately calculate the maximum operating pressure differential based on system conditions and equipment requirements, taking into account potential extreme conditions and pressure fluctuations. The control valve structure, size, and actuator thrust should also be adjusted to ensure the valve can operate stably and efficiently across varying conditions. By making informed selections for both the valve and actuator thrust, users can avoid performance issues caused by excessive pressure differentials or insufficient thrust, ensuring system safety and stability.
