An Essential Guide to Steam Control Valves

In industrial production, steam systems play a crucial role, and steam control valves are an indispensable key component of these systems. They precisely regulate the flow and pressure of steam, ensuring the smooth progress of production processes. Today, let's delve into the working principles, selection criteria, installation precautions, and troubleshooting methods for common faults of steam control valves, to help everyone better understand this important equipment.

The working principle of steam control valves may sound complex, but in layman's terms, it is like an intelligent "faucet." Before startup, the pilot valve spring is in a free state, and both the main valve and the pilot valve are closed. When the pilot valve opens under the action of the spring force, steam, like an invited guest, enters the main diaphragm chamber through the pilot valve. However, not all the steam stays there; a portion of it flows out through the control orifice. When the amount of steam entering through the pilot valve exceeds the amount flowing out through the control orifice, the control pressure in the main diaphragm chamber increases, thereby opening the main valve and allowing steam to pass through smoothly.

As steam flows through the main valve, the downstream pressure changes. This change is fed back to the lower part of the pilot valve diaphragm through a sensing tube, where it balances with the spring pressure on the upper part of the diaphragm. If the downstream pressure is too high, the pressure on the lower part of the pilot valve diaphragm increases, prompting the pilot valve assembly to throttle and close, maintaining the pressure in the main diaphragm and controlling the opening of the main valve to deliver the appropriate amount of steam. If it is necessary to change the downstream pressure, simply adjust the spring on the pilot valve diaphragm. This process is akin to adjusting the flow of water from a faucet, achieving the desired effect with simple operation.

Selecting the right steam control valve is like choosing the appropriate "stage" for it. If the selection is improper, even the most advanced control valve may fail to perform as expected. First, we need to determine the required steam flow for the production process. This can be done through calculation or experimentation, much like planning a trip where you first need to determine the destination and route. When selecting, it is essential to ensure that the maximum flow capacity of the steam control valve is greater than or equal to the actual required steam flow, so that the valve does not become "overwhelmed" during operation.

The pressure rating of the steam control valve is another important factor in selection. It must match the pressure rating of the piping system, just as clothing size must match the person's body. If the pressure rating of the steam control valve is lower than that of the piping system, steam leakage and valve damage may occur. This not only affects production efficiency but also poses safety hazards.

Since steam control valves operate in high-temperature and high-pressure steam environments, it is necessary to select materials that can withstand these conditions during selection. Common materials include cast iron, cast steel, and stainless steel. These materials act like a sturdy "armor" for the control valve, enabling it to work stably in harsh environments.

Despite the advanced design and manufacturing of steam control valves, some faults may still occur during actual use. However, there is no need to worry, as most of these faults can be easily resolved if we know the correct methods.

Air leakage in steam control valves can lead to a decrease in steam pressure, affecting production efficiency. It is like a balloon with a small hole, where the gas inside gradually leaks out. The solution is to check whether the valve's sealing ring is damaged or aged. If there is a problem with the sealing ring, it needs to be replaced promptly to restore the valve's sealing performance.

Jamming of the steam control valve can prevent the regulation of steam flow, affecting the production process. It is like a door that gets stuck and cannot open or close normally. The solution is to check for foreign objects or dirt inside the valve. If the valve is blocked by foreign objects or dirt, the inside of the valve needs to be cleaned, or the valve should be replaced if necessary.

Blockage of the steam control valve can cause unstable steam flow, affecting production efficiency. It is like a river being blocked by stones, preventing the water from flowing smoothly. The solution is to check for obstructions inside the piping system. If there are obstructions in the piping system, it is necessary to clean the inside of the piping system in a timely manner to ensure the smooth flow of steam.

Proper installation can significantly extend the service life of steam control valves, just like laying a solid foundation for the valve. During installation, the following points should be noted.

The control valve should always be installed on a horizontal steam pipe and must never be installed vertically. Vertically installed control valves can cause condensate to accumulate before the valve inlet, and condensate passing through the steam control valve can adversely affect the valve's service life.

There should be at least a distance of 10 times the pipe diameter after the steam control valve before connecting to the inlet fitting of the heat exchanger. For applications involving pressure reduction, a distance of at least 20 times the pipe diameter should be maintained before changing the direction of flow. Always ensure that the pipe size matches the size of the inlet fitting of the heat exchanger. For example, if a control valve is 3 inches in size and the inlet fitting of the heat exchanger is 8 inches, the pipe size at the outlet of the steam control valve should be increased to 8 inches.

A filter must be installed upstream of all steam control valves. Steam pipes often contain residual solid materials due to corrosion and other impurities. The filter will filter the steam flow to prevent these materials from clogging the valve interior, leading to premature valve failure. The filter should use a stainless steel mesh with a pore size standard of 0.020mm and must not be installed in a position below the valve. The filter should be installed in a horizontal position. This prevents condensate from accumulating in the collection bag and then passing through the control valve, increasing the possibility of internal corrosion and premature failure of the valve.

For all steam control valves, a condensate collector must be installed in the upstream pipe to remove condensate. The condensate collector removes condensate generated in the steam pipe to prevent it from passing through the valve. More importantly, when the steam control valve is closed during low production or non-production periods, the condensate collector can remove condensate that accumulates at the inlet of the steam control valve.

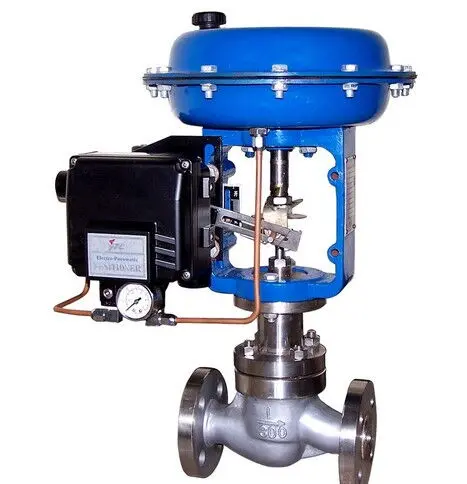

The preferred method for driving steam control valves is to use a pneumatic actuator. These actuators have reliable working performance and should be able to support the normal operation of the equipment for at least 20 years. The heat inside the valve body is dissipated from the actuator through the drive mechanism, thereby ensuring the long service life of the pneumatic diaphragm. The actuator should be installed horizontally in a position perpendicular to the vertical pipe. This prevents condensate from accumulating in the packing gland area, causing damage to the packing.

Bypass valves or warm-up valves should be used in the installation of control valves. In applications involving pressure reduction, first use a preheat valve within the recommended time limit to preheat the steam pipe, and then install the control valve to operate. Steam control valves must not be used to preheat steam supply pipes. Additionally, bypass valves should be used in process applications to facilitate process control by staff in case of control valve failure. It is best to install pressure gauges before and after the steam control valve as diagnostic tools. Ensure that the system also has installed siphon pipes and isolation valves for maintenance work. In systems with significant vibration, use oil-filled vibration-resistant pressure gauges to extend the service life of the pressure gauges.

The control system of a steam control valve is capable of automatically regulating the flow and pressure of steam based on the actual conditions of the production process. In the control system, the placement of the pressure tap is very important. If the pressure tap is located in an area with severe pressure fluctuations, the system's control sensitivity will be too high, causing the control valve to actuate frequently, increasing valve wear and failure rate. It is like being in a noisy environment where our ears become more sensitive and are easily disturbed by external sounds. Therefore, selecting the pressure tap reasonably can significantly improve the stability of the system.

The setting of PID parameters in the control system also has a direct impact on the operation of the control valve. If the PID parameters are set improperly and the system is overly sensitive to pressure fluctuations, it will cause the control valve to actuate frequently, thereby causing system oscillation. It is like a person who is overly sensitive and reacts excessively to minor changes around them. By adjusting the PID parameters, reducing the proportional band and increasing the integral time, the system's sensitivity can be reduced, allowing the system to respond smoothly to pressure fluctuations and avoiding unnecessary frequent adjustments.

According to current technology and existing material standards, all steam control valves must have a service life of at least 6 years. However, proper installation and maintenance can significantly extend the service life of the valve. During maintenance, we need to regularly check the valve's sealing performance, internal cleanliness, and wear conditions of various components. If problems are found, they should be repaired or replaced in a timely manner. At the same time, we also need to adjust the control parameters of the control valve in a timely manner according to the actual conditions of the production process to ensure that it always remains in the best working condition.

As one of the most basic and essential components of a steam system, the correct selection, installation, and maintenance of steam control valves are crucial for the smooth progress of the entire production process. By understanding the working principles, selection criteria, installation precautions, and troubleshooting methods for common faults of steam control valves, we can better grasp this important equipment and maximize its value in industrial production. It is hoped that this article will help everyone better understand and apply steam control valves, improve production efficiency, reduce production costs, and ensure the safety and stability of the production process.
