An Introduction to Compact Pneumatic Control Valves

In numerous industrial sectors such as petroleum, chemical, and metallurgy, compact pneumatic control valves are playing an increasingly important role. They act like precise "regulation masters," quietly ensuring the stable operation of various processes in complex industrial environments. This article will delve into the daily use and maintenance of compact pneumatic control valves, as well as their unique advantages and operating principles, to help everyone better understand and utilize this key equipment.

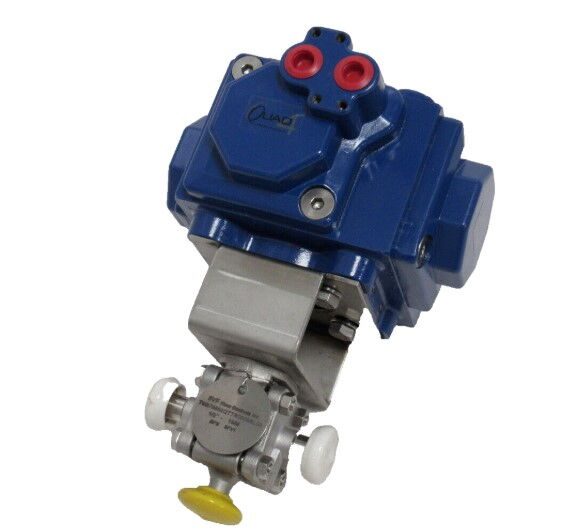

A compact pneumatic control valve is an automated control device widely used in industries such as petroleum, chemical, and metallurgy. It controls the opening and closing of the valve through a pneumatic actuator, thereby achieving precise regulation of parameters such as flow rate, pressure, and temperature of the medium in the pipeline. With its compact structure, stable performance, and flexible operation, this type of valve plays an irreplaceable role in industrial production.

Compact pneumatic control valves are ideal for applications with small allowable leakage and insignificant pressure differences before and after the valve. They can control gases, liquids, and other media, maintaining process parameters like pressure, flow rate, temperature, and liquid level at set values. Whether it's pressure control in petroleum refining, flow regulation in chemical production, or temperature management in metallurgical processes, these valves ensure stable and efficient production processes.

Compact pneumatic control valves feature a balanced valve core design, allowing them to operate stably under larger pressure differences. The large guiding surface of the valve core reduces oscillations caused by turbulence and impact, improving control accuracy. These valves offer good stability, strong versatility, and easy maintenance. The single-seal type is suitable for clean media applications with strict leakage requirements and small pressure differences, and can even serve as a shut-off valve after modification. The double-seal type is suitable for clean media applications with less strict leakage requirements and larger pressure differences. The small-orifice throttling design reduces noise by about 10dB compared to ordinary single and double-seat control valves.

The structure of compact pneumatic control valves is simple, facilitating easy installation, disassembly, and maintenance. The balanced structure means that the unbalanced force generated by the pressure difference of the medium on the valve flap is minimal. Under the same working conditions, compared to valves of the same type, they require less actuator thrust and have a smaller valve stem diameter. This reduces valve movement resistance and wear between the valve stem and packing, extending the service life. In medium and high-temperature environments, the smaller valve stem diameter results in less thermal expansion and contraction, avoiding blockages due to increased friction or mutual jamming.

To ensure that compact pneumatic control valves function properly, daily use and maintenance are essential. Proper use and maintenance can not only extend the service life of the valve but also ensure the stability and safety of the production process.

Before using a new compact pneumatic control valve, check the nameplate to confirm it meets design requirements. When repairing an existing valve, calibrate it and inspect the packing and sealing joints for integrity. These steps can prevent accidents caused by non-compliant or defective valves.

Regular testing is essential to ensure the valve operates normally. Test parameters include basic error limit, total travel deviation, backlash, dead zone, and leakage (checked under strict working conditions). Monitoring these parameters helps identify deviations or leakage issues, allowing for timely adjustments and repairs to ensure precise control.

Routine maintenance is vital for long-term stable operation. Given the harsh operating environments, faults are inevitable. Regularly inspect the valve's inner wall for pressure and corrosion resistance, especially in high-pressure situations, checking for erosion on the valve seat sealing surface. Carefully inspect the valve core for corrosion or wear, particularly under high-pressure differences. Additionally, check the aging and drying of PTFE packing and sealing lubricating grease, as well as the condition of mating surfaces. Aging or damage to these components can lead to poor sealing and affect control. Promptly detect and replace aged or cracked diaphragms, O-rings, and other sealing gaskets to maintain sealing performance.

When a compact pneumatic control valve malfunctions, timely and accurate repair is the key to restoring its performance. During the repair process, the following points should be noted:

The inner wall's pressure and corrosion resistance directly affect the valve's service life and safety. Carefully inspect the inner wall for corrosion, wear, or other damage, and repair or replace it promptly to ensure the valve can withstand normal working pressure and medium corrosion.

The valve seat's sealing performance is critical to the valve's control effect. The internal surface of the thread used to fix the valve seat is prone to corrosion, leading to loosening. During repair, check the valve seat's fixing condition to ensure its firmness and reliability. In high-pressure situations, also check for erosion on the valve seat sealing surface and repair or replace it if damaged.

The valve core's condition directly affects control accuracy and service life. Carefully inspect the valve core for corrosion or wear, especially under high-pressure differences. Damaged valve cores can reduce control accuracy and may prevent the valve from working properly. Repair or replace the valve core if problems are found.

The sealing performance is crucial to the valve's control effect. Carefully inspect PTFE packing and sealing lubricating grease for aging or drying, and check mating surfaces for damage. Also, focus on aging and cracking of diaphragms, O-rings, and other sealing gaskets. Replace these components promptly if problems are found to ensure sealing performance.

Choosing the operating mode of compact pneumatic control valves is crucial for their effectiveness. The pneumatic actuator has two actions (positive and negative), and the valve has two installations (positive and reverse), resulting in four combinations for air-to-open and air-to-close functions. The selection mainly involves choosing between air-to-open and air-to-close, considering three main principles.

Fluid characteristics significantly impact the operating mode selection. For fluids prone to crystallization, an air-to-close type is preferred to prevent blockage. For example, in chemical processes where materials crystallize at low temperatures, an air-to-close valve allows smooth passage when air pressure is interrupted, avoiding blockage. In heat exchangers regulating the heat carrier flow to maintain fluid outlet temperature, an air-to-open valve is suitable. If the cold fluid's temperature becomes too high, it may coke or separate, affecting operation or damaging equipment. An air-to-open valve allows the cold fluid to continue flowing when air pressure is interrupted, preventing excessively high temperatures.

When selecting the operating mode of a pneumatic control valve, the safety of the process production is a crucial consideration. The principle is to ensure the safety of operators and equipment when the signal pressure is interrupted. If the hazard is minimal when the pneumatic control valve remains open during signal interruption, an air-to-close type should be selected; otherwise, an air-to-open type should be chosen.

For example, in some chemical production processes, certain reactors require strict pressure control. If an air-to-open valve is used, once the air pressure is interrupted and the valve closes, the pressure inside the reactor may become too high, leading to equipment damage or even danger. However, using an air-to-close valve allows the pressure inside the reactor to be released when the air pressure is interrupted, ensuring the safety of the equipment and operators.

Minimizing raw material and energy consumption and ensuring product quality in the event of an accident are also important principles for selecting the operating mode of pneumatic control valves. For example, in distillation tower control systems, the feed pneumatic control valve is often air-to-open. Without air pressure, the valve closes, stopping the feed and preventing raw material waste. In some chemical production processes, certain products have high purity requirements for raw materials. If an air-to-close valve is used, once the air pressure is interrupted and the valve opens, it may lead to raw material contamination, affecting product quality. Using an air-to-open valve, which closes when the air pressure is interrupted, can effectively prevent raw material contamination and ensure product quality.

As an automated control device widely used in industrial fields, the performance and stability of compact pneumatic control valves are crucial for the production process. Through the introduction in this article, we understand that daily use and maintenance are the keys to ensuring their normal operation. Pre-use inspection, regular testing, routine maintenance, and mastering the key points of repair can effectively extend the service life of the valve and ensure the stability and safety of the production process. At the same time, reasonably selecting the operating mode of the pneumatic control valve based on factors such as fluid characteristics, process production safety, and product quality can further enhance its effectiveness in practical applications.
