Flow Capacity of Control Valves: Key Factors and Application
In the realm of industrial automation control, control valves play an indispensable role. They act like "faucets" in piping systems, precisely regulating the flow rate and pressure of fluids to ensure the stable operation of production processes. The flow capacity of a control valve is one of its core performance indicators. Today, let's delve into the flow capacity of control valves and uncover the mysteries behind it.

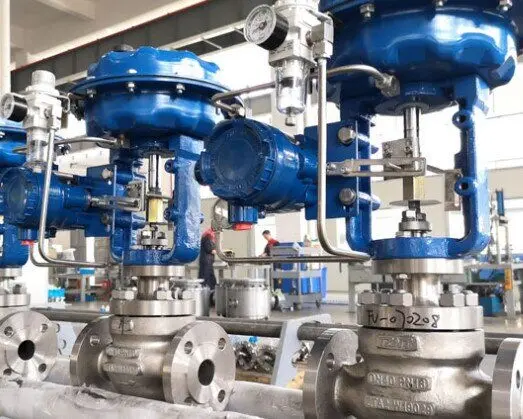

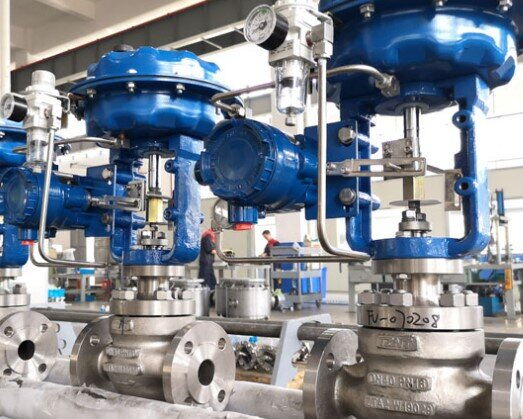

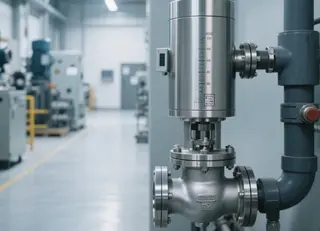

Control valves typically consist of two main parts: the actuator and the valve body. The actuator can be electric or pneumatic, and its function is to drive the opening and closing of the valve body according to control signals, thereby regulating the flow rate of the fluid. The valve body is the actual passage through which the fluid flows, and its structure and shape determine the flow capacity of the control valve.
There are two main types of linear motion control valves: single-seat and double-seat. The single-seat valve has a simple structure and good sealing performance, but its flow capacity is relatively low, making it suitable for applications with strict leakage requirements. In contrast, the double-seat valve features high flow capacity, low unbalanced force, and stable operation, making it ideal for high-flow, high-pressure drop applications where leakage requirements are less stringent. To illustrate, if the single-seat valve is like a narrow alley, the double-seat valve is like a broad avenue, allowing more fluid to pass through smoothly.
Rotary motion control valves include V-port electric control ball valves, pneumatic diaphragm shut-off valves, and eccentric butterfly valves. The flow capacity of these valves primarily depends on their structural design. The V-port ball valve has a V-shaped core that enables precise flow regulation. The pneumatic diaphragm shut-off valve relies on the elastic deformation of the diaphragm to control the valve's opening and closing, offering good shut-off performance. The eccentric butterfly valve, with its eccentric design, reduces friction during valve opening, enhancing the sensitivity of flow regulation.
When calculating the required flow capacity of a control valve, the flow state of the fluid cannot be overlooked. Different media and flow conditions can lead to significant differences in the internal flow state of the valve, which in turn affects the calculation results of the flow capacity.
At low flow rates, especially when viscous fluids operate under low pressure, the flow state is often laminar or a mixture of laminar and turbulent flow. Laminar flow is like a tranquil stream, with water flowing slowly along parallel paths. In this case, the flow rate of the medium through the valve is linearly related to the pressure difference across the valve. As the flow state transitions to a mixture of laminar and turbulent flow, with increasing Reynolds number, the flow rate through the valve increases even if the pressure difference remains constant. The Reynolds number is a dimensionless quantity that characterizes the flow state of the fluid; the higher its value, the closer the flow is to turbulent.
In fully turbulent flow, the flow rate no longer changes with the Reynolds number. The flow is like a raging river, chaotic and full of energy. However, for low-flow control valves, it is difficult to achieve fully turbulent flow due to their inherently low flow rates. Therefore, traditional calculation methods and formulas are not applicable in low-flow situations, and there can be significant deviations between calculated and actual values. According to available data, when the Cv value is less than 0.01, it serves only as a capacity indicator with reference significance, and the actual flow capacity needs to be determined based on experience.
The flow capacity of a control valve not only affects the flow rate but also has a significant impact on its turndown ratio and working characteristics.
The turndown ratio refers to the ratio of the flow rate at the maximum opening to that at the minimum opening of the control valve, reflecting its range of regulation. As the flow capacity decreases, the turndown ratio of the valve also drops. Generally, the turndown ratio of a control valve should be at least between 10:1 and 15:1. If it is lower, effective flow regulation becomes difficult. For example, a faucet with a narrow range of regulation would struggle to precisely control the water flow.
When control valves are used in series, changes in the valve opening also alter the pressure difference across the valve, causing the working characteristic curve of the valve to deviate from the ideal characteristic. If the pipeline resistance is high, the originally linear flow characteristic may become a quick-opening characteristic, losing its regulating ability, while the equal-percentage characteristic may become linear. However, in low-flow situations, due to the low pipeline resistance, the above characteristic distortions are not significant, and there is actually little need for equal-percentage characteristics. From a manufacturing perspective, when the Cv value is less than 0.05, it is impossible to produce an equal-percentage side shape.
The specific indicator for measuring the flow capacity of control valves is the flow coefficient. There are currently two commonly used types of flow coefficients: the Cv, defined in imperial units and represented by the United States (ISA), and the Kv, defined in metric units and represented by Germany (IEC). The conversion relationship between the two is Cv ≈ 1.167Kv.
The Cv value is a constant related to the geometric structure of the control valve. It represents the number of US gallons of 60℉ water that flow through the control valve per minute under a pressure drop of 1 psi per square inch. The Kv value, on the other hand, refers to the number of cubic meters of water at 5-40℃ that flow through the control valve per hour under a pressure drop of 1 bar.
The calculation formula for the flow coefficient is relatively complex and is mainly divided into two categories: one for incompressible fluids (such as liquids) and the other for compressible fluids (such as gases). During the calculation process, it is also necessary to consider whether choking will occur. Currently, major control valve manufacturers have developed specialized calculation software, greatly simplifying the calculation process and allowing people to focus more on the selection and application of control valves.
For low-flow control valves, the main issue is how to control the flow within the required range. From an economic standpoint, users hope that a single valve can be used for both throttling and regulation. Although this is theoretically possible, the primary function of a control valve is still to control the flow rate, with shut-off being a secondary function. Some users may think that low-flow valves have such a small flow rate that it is easy to achieve throttling when closed, but this is actually a misconception. Foreign countries have also set clear regulations on the leakage of low-flow control valves. For example, when the Cv value is 10⁻¹, the leakage of the valve is specified as: under an air pressure of 3.5 kg/cm², the leakage is less than 1% of the high flow rate.
In practical applications, selecting the appropriate control valve requires a comprehensive consideration of various factors. First, determine the required flow and pressure ranges based on process requirements, and then select the appropriate flow coefficient calculation formula in combination with the properties of the fluid (such as viscosity, density, and compressibility). At the same time, it is also necessary to consider the installation location and pipeline conditions of the control valve to avoid distortions in the working characteristics of the control valve due to pipeline resistance and other factors.
In addition, when selecting a control valve, attention should also be paid to its leakage grade and sealing performance. For applications with strict leakage requirements, such as the food and pharmaceutical industries, control valves with better sealing performance should be selected. At the same time, attention should be paid to the material and corrosion resistance of the control valve to ensure its long-term stable operation in specific media environments.
The flow capacity of a control valve is one of its core performance indicators, directly affecting the precision of flow control and the range of regulation. By understanding the basic structure, types of control valves, and the relationship between flow capacity and fluid flow state, we can better select and apply control valves. In practical applications, a comprehensive consideration of various factors is required to ensure that the control valve can achieve precise flow control under specific process conditions. With the continuous development of industrial automation technology, the design and manufacturing of control valves are also constantly being optimized. It is believed that more high-performance, high-precision control valve products will emerge in the future, providing stronger guarantees for the stable operation of industrial production.
The flow capacity of a control valve is like a magical key that opens the door to fluid control. As long as we master the use of this key, we can precisely control the flow of fluids, making industrial production more efficient, stable, and safe.
