Guide to Function and Selection of Control Valve Packing

Control valves are integral components in industrial control systems, playing a vital role in regulating critical parameters such as flow, pressure, and temperature across a variety of industries including chemical, petroleum, power generation, pharmaceuticals, and food processing. Their primary function is to ensure that these parameters stay within desired thresholds, facilitating smooth and efficient operational processes. Within the control valve, various components work in unison to achieve this goal. One such critical component is the packing, which directly influences the valve's sealing, durability, and operational performance.

Although valve packing occupies a small portion of the overall valve assembly, its role is crucial for preventing fluid leakage along the valve stem, safeguarding the process, and ensuring the valve's efficiency. This article delves into the function of control valve packing, common packing materials, selection guidelines, and essential installation and maintenance considerations to assist users in better understanding and utilizing valve packing.

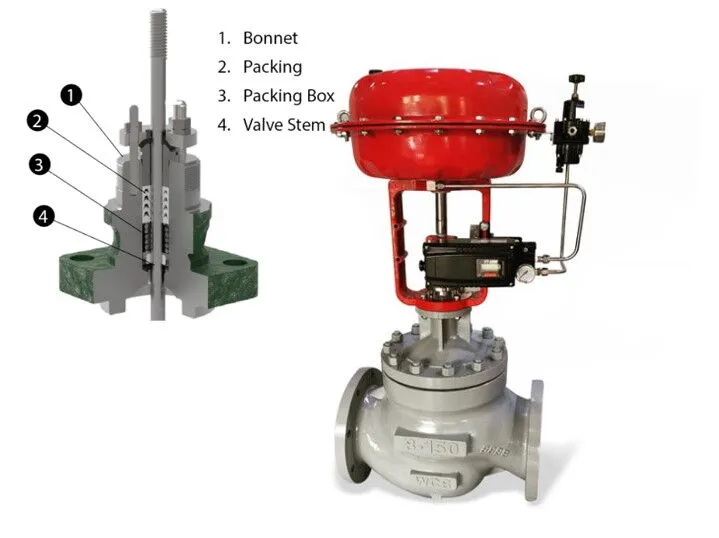

Control valve packing is located between the valve stem and the valve body. Its primary function is to prevent leakage of the fluid through the stem sealing surfaces. Given that the valve stem moves up and down or rotates during operation, packing must possess certain characteristics such as elasticity and flexibility to adapt to the movement of the stem while simultaneously resisting fluid pressure and temperature fluctuations.

The most direct function of valve packing is to create a seal that prevents the medium from leaking through the stem area. During valve operation, flow dynamics, stem movement, and pressure differences between the inside and outside of the valve body may lead to potential leakage of the medium. Properly selected and installed packing prevents such leaks, ensuring that the process remains secure and compliant with environmental safety standards.

The quality of the packing directly impacts the valve's performance. High-quality packing reduces friction between the stem and packing material, enhancing the valve's operational efficiency and extending its service life. Additionally, well-sealed packing minimizes the leakage rate, helping the valve maintain better process control accuracy.

In certain industries, valves are exposed to extreme operating conditions, such as high temperatures, high pressures, or aggressive, corrosive media. Valve packing must possess certain heat and corrosion-resistant properties to endure these challenging environments. Proper packing protects the valve's internal components from thermal damage and corrosion, ensuring long-term reliability and stable equipment performance.

Control valve packing comes in several different materials, each designed to meet specific operational needs. The most common materials include PTFE (polytetrafluoroethylene) packing, flexible graphite packing, and metal packing. Each material has distinct physical and chemical properties suited for specific operating conditions and requirements.

PTFE, commonly known by its brand name Teflon, is a polymer material known for its exceptional chemical stability and low friction coefficient. PTFE packing is widely used in environments requiring excellent corrosion resistance, low friction, and high sealing performance. It performs well in temperatures ranging from ambient to 250°C.

Chemical Stability: PTFE is chemically inert and resistant to nearly all acids, bases, and organic solvents. This makes it suitable for a wide range of aggressive chemical processes.

Low Friction: Due to its low friction coefficient, PTFE reduces wear on the valve stem, enhancing operational efficiency.

Temperature Resistance: PTFE can withstand temperatures up to 250°C, making it ideal for moderate temperature applications.

Limited High-Temperature Performance: While PTFE performs well at moderate temperatures, its ability to resist higher temperatures and strong oxidizing agents is limited.

Wear in High-Pressure Conditions: PTFE packing may suffer wear when exposed to high pressures and aggressive media over extended periods.

Braided PTFE Packing: Often used for low-pressure, low-temperature applications, this packing is braided to offer good sealing performance.

V-Ring PTFE Packing: Used in high-pressure environments, V-ring PTFE packing provides excellent sealing capabilities and is designed to withstand more aggressive conditions.

Flexible graphite is a high-performance material that is produced by treating natural graphite with specific processes to enhance its flexibility. This packing is favored for high-temperature and high-pressure applications due to its ability to withstand extreme conditions. It is also resistant to many chemical substances.

Wide Temperature Range: Flexible graphite can operate at temperatures ranging from -200°C to 2000°C, making it suitable for high-temperature applications.

Corrosion Resistance: It offers excellent resistance to acids, alkalis, and organic solvents, making it ideal for corrosive media.

Sealability and Resilience: The material exhibits excellent sealing properties and rebound capabilities, reducing the risk of leakage over time.

Oxidation in Strong Oxidizing Environments: While graphite is generally corrosion-resistant, it can oxidize when exposed to highly oxidative media, which reduces its effectiveness.

Friction: Flexible graphite is susceptible to friction-related wear, particularly when used in high-pressure systems.

Braided Graphite Packing: This form of graphite packing is woven and is commonly used in high-pressure applications.

Spiral Wound Graphite Packing: Ideal for extreme temperatures and high-pressure systems, this type of packing can provide optimal sealing properties under demanding conditions.

Metal packing consists of materials such as copper, aluminum, or stainless steel, making it suitable for high-temperature and high-pressure environments. Metal packing is commonly used in applications like power plants and chemical refineries where extreme conditions are prevalent.

Exceptional High-Temperature Performance: Metal packing can withstand extremely high temperatures, often exceeding 1000°C, making it ideal for use in industries with extreme thermal conditions.

Strength: Metal packing is incredibly strong and can handle significant pressure differentials without failing.

Durability: It is highly resistant to wear, which makes it ideal for long-lasting applications in demanding environments.

Poor Sealing Ability: Metal packing often does not provide as tight a seal as other packing types, requiring supplementary sealing materials like PTFE or flexible graphite.

Friction and Wear: The material is prone to frictional wear, requiring periodic maintenance or replacement.

Applications: Metal packing is commonly used in high-pressure systems such as steam pipelines in power plants and refineries where durability and heat resistance are essential.

When choosing the appropriate control valve packing, several factors must be considered to ensure the selected material meets the specific requirements of the operating environment. Below are the primary considerations:

Temperature and pressure are the most critical factors influencing packing selection. Different packing materials perform differently at varying temperature and pressure ranges. For instance, PTFE is suitable for moderate temperatures, while flexible graphite can handle much higher temperatures, and metal packing is ideal for extreme pressure and temperature environments.

The chemical nature of the media flowing through the valve significantly affects the selection of packing. Highly corrosive media, such as strong acids, alkalis, or solvents, demand packing materials with superior chemical resistance, like PTFE or flexible graphite. Additionally, for oxidative media, metal packing may be a more appropriate choice.

In industries that require highly accurate process control with minimal leakage, such as the oil and gas industry, the sealing performance of the packing material becomes even more crucial. For stringent sealing needs, materials with lower leakage rates, like PTFE or flexible graphite, are ideal.

The longevity of the packing and its resistance to wear are crucial for ensuring minimal downtime and maintaining valve performance. Materials like flexible graphite and PTFE have relatively long service lives, but they require periodic replacement, especially under high-pressure or frequently cycling conditions. Metal packing, while durable, may need additional sealing materials to ensure long-term performance.

Cost is another important factor. While materials like PTFE and flexible graphite are relatively affordable, they may not be suitable for extreme conditions. Metal packing, although more expensive, may be necessary for highly demanding environments but may also require additional sealing components.

Proper installation and regular maintenance of valve packing are critical to ensuring valve performance and extending its service life. Here are some key considerations during installation and maintenance:

The level of compression applied to the packing is crucial for sealing effectiveness. Too much compression can lead to excessive wear on the valve stem, while too little compression may result in leaks. Always refer to the manufacturer's guidelines for the correct compression values during installation.

Over time, packing can wear out due to constant movement, temperature fluctuations, and the pressure exerted on it. Regular inspection and timely replacement of packing are necessary to avoid leaks and maintain optimal valve function. The frequency of replacement depends on the operating conditions and the type of packing used.

Beyond replacement, regular inspection of the packing is necessary to check for signs of wear or leakage, especially in high-temperature or high-pressure applications. Regular maintenance helps in identifying potential issues early, thus preventing more costly damage.

Control valve packing plays an indispensable role in ensuring proper sealing, enhancing valve performance, and extending the service life of the valve. By selecting the correct packing material based on factors such as temperature, pressure, media characteristics, and sealing requirements, users can optimize valve operation and reduce the risk of leakage and valve failure. Understanding the different types of packing materials, their advantages and disadvantages, and the installation and maintenance practices can empower engineers and operators to make well-informed decisions, ensuring efficient, leak-free operation of control valves across diverse industrial applications. With this comprehensive guide, you can now confidently approach the selection and maintenance of control valve packing to meet the specific demands of your processes and industries.
