Guide to Sanitary Control Valves in Hygiene-Sensitive Industries

Sanitary control valves, also known as food-grade control valves, are crucial equipment designed to meet rigorous hygiene standards. Their material selection, surface treatment, and structural design comply with strict regulations in industries such as food processing, pharmaceuticals, brewing, and beverages. This article delves into the characteristics of sanitary control valves, their differences from traditional industrial control valves, and their significant applications in industrial production.


Differences Between Sanitary and Industrial Control Valves

Sanitary control valves differ significantly in design and application from traditional industrial control valves. Sanitary control valves require all components to undergo sterilization and ensure that the valve body surface is smooth, typically polished to a mirror finish with surface roughness ranging from 0.2μm to 0.6μm, to prevent medium retention and contamination risks. They are constructed using high-quality stainless steel such as 304 or 316, often treated with processes like electro-polishing, to ensure cleanliness and non-contamination. The valve seat sealing surfaces utilize non-toxic materials such as stainless steel or specific rubbers to prevent medium contamination.

Industrial control valves, on the other hand, are more tailored to working environments and media characteristics, suitable for various industries including mechanical, metallurgical, petrochemical, and chemical sectors. They are typically designed for high temperature resistance, corrosion resistance, and long-term stable operation. Industrial control valves offer a broader range of material choices but may include components harmful to human health, such as lead, requiring strict control and safety precautions during use.


Characteristics of Sanitary Control Valves

The sanitary control valve has several notable characteristics, making it widely used in industries such as food processing, pharmaceuticals, beverages, and others.


1. Optimized Structural Design

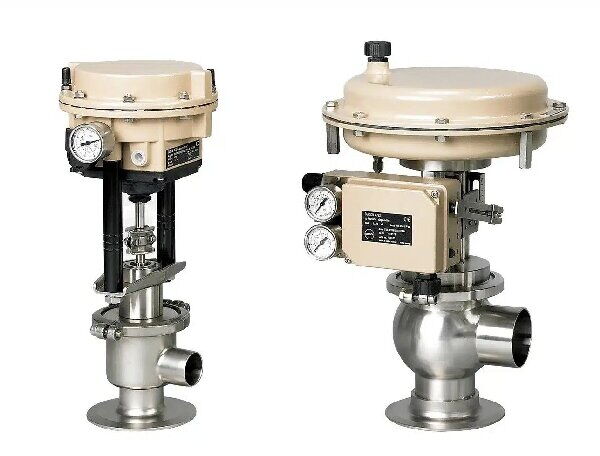

Sanitary control valves often adopt an angle-type design to ensure self-draining, with smooth valve body surfaces eliminating areas where medium could accumulate, thus minimizing contamination risks. The quick-disassembly valve body and cap designs facilitate easier maintenance and cleaning, reducing production downtime.


2. Precision Flow Control Capability

They possess high-precision flow control capabilities with minimal pressure drop, large flow capacity, and wide adjustable range, conforming to international standards such as IEC534-1978. Leakage meets ANSI B16.104 standards, ensuring process stability and production efficiency.


3. Wide Application Fields

Primarily used in food, pharmaceuticals, cosmetics, clean steam, alcoholic beverages, and biochemical industrial process control, where high hygiene standards are crucial, ensuring product purity and safety.


Functions and Applications of Sanitary Control Valves

Sanitary control valves play crucial roles in various industries such as food processing, pharmaceuticals, beverages, and cosmetics. Their primary functions and applications are as follows.


1. Precise Flow Control

Sanitary control valves allow for precise adjustment of fluid flow rates. By varying the valve opening, they ensure stable and efficient processes.


2. Pressure Management

These valves help maintain or adjust fluid pressure levels within systems. By fine-tuning the valve opening, they ensure optimal pressure conditions for different stages of production.


3. Temperature Control

While not directly controlling temperature, sanitary control valves indirectly influence material temperatures by regulating the flow of heat exchange media such as steam or cooling water.


4. Product Distribution

They enable flexible distribution of fluids to different paths or containers as needed, facilitating versatile product distribution and switching.


5. Prevention of Cross-Contamination

Designed with high-quality materials such as stainless steel or special alloys and featuring detachable internal components, sanitary valves are easy to clean and sterilize. This prevents cross-contamination between different fluids, ensuring product purity and safety.


6. Safety Assurance

Acting as safety valves, they automatically open or close to release or block fluid flow when system pressures or flow rates exceed preset limits, protecting equipment and personnel.


7. Automation and Remote Control

Due to their pneumatic drive design, sanitary control valves can be easily integrated into automation systems. This allows operators to monitor and adjust flow rates and other parameters remotely, enhancing production efficiency and reducing human errors.


8. Energy Efficiency

By precisely controlling flow rates and pressures, these valves help reduce energy consumption. They ensure that only the required amount of fluid is pumped or transferred, minimizing waste and supporting sustainable practices.


9. Ease of Maintenance

Their simple design and easy-to-maintain structure minimize downtime, ensuring continuous production and operational efficiency.

In summary, sanitary control valves are indispensable equipment in industries with high hygiene requirements such as food, pharmaceuticals, and cosmetics, owing to their superior hygiene performance, precise flow control, and wide application fields. As industrial technology advances and production environments improve, the design and application of sanitary control valves will continue to evolve, playing an increasingly crucial role in ensuring product quality and safety.
