Key Functions and Industrial Importance of Control Valves
On this page

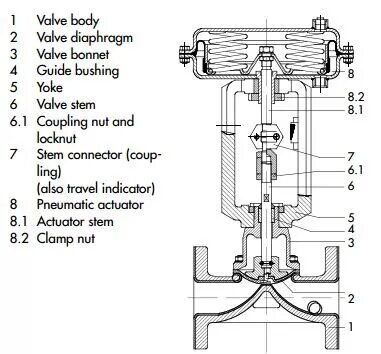

Control valves are critical components in industrial control systems, responsible for regulating the flow, pressure, and temperature of the medium to ensure smooth operation of processes. To operate efficiently and stably under various conditions, control valves must possess a range of functional and performance characteristics. This article systematically outlines the key functions of control valves and their importance in industrial applications.
The primary task of a control valve is to regulate fluid flow, enabling precise control of the process. The regulation performance of control valve is demonstrated in several key aspects.
Flow characteristics are one of the most important parameters of a control valve, describing the relationship between valve opening and flow variation. Choosing the appropriate flow characteristics based on system requirements is crucial. For instance, in flow regulation systems that demand quick response, logarithmic flow characteristics are often selected due to their ability to provide significant flow changes at low openings. In contrast, linear flow characteristics are better suited for temperature control systems, where a slower response is needed, allowing smoother control. Good flow characteristics directly determine the control accuracy and system stability of the valve.
Rangeability refers to the ratio of the maximum to minimum flow the valve can control, expressed by the formula R = Qmax / Qmin. A larger R value indicates a wider control range and better regulation performance. Standard valves typically have an R value of 30, while high-performance valves such as V-ball valves and full-function valves can reach R values of 100 to 200, accommodating broader control needs.
Shut-off performance is a key feature of control valves, typically assessed by leakage rates. Ideally, the leakage rate should be less than 0.001%, indicating good sealing and high quality. However, in practice, domestic valves often exhibit higher leakage rates. High-quality valves should minimize leakage during shut-off to meet stringent process requirements.
When a valve is closed, the pressure differential across the system can force the valve plug open, compromising the seal. Differential pressure resistance is measured by the maximum allowable pressure difference. Single-seal valves like single-seated valves, angle valves, diaphragm valves, and three-way valves have lower allowable pressure differences, making them prone to leakage under high pressure. Double-seal valves and rotary valves such as double-seated valves, sleeve valves, ball valves, and full-function valves have higher allowable pressure differences and maintain good sealing performance in high-pressure environments. Rotary valves, in particular, are increasingly preferred in industrial settings due to their low leakage rates and high differential pressure tolerance.
In processes involving media with impurities or particulates, valves are susceptible to clogging, which affects their operation. Therefore, control valves must have strong anti-clogging capabilities. Rotary valves, such as ball valves, butterfly valves, and eccentric rotary valves, have simpler flow paths, giving them superior anti-clogging performance. In contrast, more complex valve designs like single-seated, double-seated, and sleeve valves are more prone to clogging. Rotary valves not only excel in anti-clogging but also offer low leakage rates and can withstand high-pressure differentials, making them increasingly popular in industrial applications.
When used with corrosive media, control valves must be resistant to corrosion. Corrosion is primarily caused by the chemical properties of the medium and is typically addressed by selecting corrosion-resistant materials. Additionally, high-speed media or those containing particulates can cause erosion, which requires the use of wear-resistant materials and the implementation of anti-cavitation and anti-erosion measures to extend valve life. In high-pressure differential or particulate-laden environments, corrosion and erosion resistance become especially important.
Pressure resistance refers to the valve's ability to withstand high pressure and maintain structural integrity, preventing leaks from the seals or valve body defects. Valves are usually tested to 1.5 times their nominal pressure before leaving the factory to verify their pressure resistance. In high-pressure systems, forged valves are recommended, while cast iron valves, with the lowest pressure strength, are suitable only for low-pressure applications. Cast steel valves, due to their higher pressure strength, are commonly used in high-pressure environments.
A control valve's temperature resistance determines its ability to function properly in high or low-temperature environments. Extreme temperature fluctuations can weaken the valve body material, so the valve must adapt to the medium's temperature range to ensure sufficient strength and safety. For applications with large temperature variations, selecting materials and designs with excellent temperature resistance is crucial.
Regulation Function
The primary task of a control valve is to regulate fluid flow, enabling precise control of the process. The regulation performance of control valve is demonstrated in several key aspects.
1. Flow Characteristics
Flow characteristics are one of the most important parameters of a control valve, describing the relationship between valve opening and flow variation. Choosing the appropriate flow characteristics based on system requirements is crucial. For instance, in flow regulation systems that demand quick response, logarithmic flow characteristics are often selected due to their ability to provide significant flow changes at low openings. In contrast, linear flow characteristics are better suited for temperature control systems, where a slower response is needed, allowing smoother control. Good flow characteristics directly determine the control accuracy and system stability of the valve.
2. Rangeability (R)
Rangeability refers to the ratio of the maximum to minimum flow the valve can control, expressed by the formula R = Qmax / Qmin. A larger R value indicates a wider control range and better regulation performance. Standard valves typically have an R value of 30, while high-performance valves such as V-ball valves and full-function valves can reach R values of 100 to 200, accommodating broader control needs.
3. Performance at Small Openings
Some control valves exhibit poor performance at small openings, with issues like jump starts or oscillation, reducing the effective range. For example, double-seated valves and rubber-lined butterfly valves tend to perform poorly at low openings, decreasing their R value. Conversely, V-ball valves, eccentric rotary valves, and full-function lightweight control valves maintain stable performance and fine-tuning capabilities at small openings, making them ideal for low-flow applications.4. Flow Coefficient (Kv)
The flow coefficient (Kv) measures the flow capacity of a control valve. Under the same size conditions, a higher Kv value means greater flow capacity. Ball valves, butterfly valves, and full-function valves typically have Kv values 2 to 3 times higher than single-seated, double-seated, and sleeve valves, making them more suitable for high-flow applications.5. Control Speed
Control speed refers to the valve's ability to respond to system control signals. Different systems have varying requirements for valve speed. Fast-response systems require the valve to quickly adjust its opening to meet process changes, while slower processes may not demand rapid adjustment.Shut-off Function
Shut-off performance is a key feature of control valves, typically assessed by leakage rates. Ideally, the leakage rate should be less than 0.001%, indicating good sealing and high quality. However, in practice, domestic valves often exhibit higher leakage rates. High-quality valves should minimize leakage during shut-off to meet stringent process requirements.
Differential Pressure Resistance
When a valve is closed, the pressure differential across the system can force the valve plug open, compromising the seal. Differential pressure resistance is measured by the maximum allowable pressure difference. Single-seal valves like single-seated valves, angle valves, diaphragm valves, and three-way valves have lower allowable pressure differences, making them prone to leakage under high pressure. Double-seal valves and rotary valves such as double-seated valves, sleeve valves, ball valves, and full-function valves have higher allowable pressure differences and maintain good sealing performance in high-pressure environments. Rotary valves, in particular, are increasingly preferred in industrial settings due to their low leakage rates and high differential pressure tolerance.
Anti-Clogging Function
In processes involving media with impurities or particulates, valves are susceptible to clogging, which affects their operation. Therefore, control valves must have strong anti-clogging capabilities. Rotary valves, such as ball valves, butterfly valves, and eccentric rotary valves, have simpler flow paths, giving them superior anti-clogging performance. In contrast, more complex valve designs like single-seated, double-seated, and sleeve valves are more prone to clogging. Rotary valves not only excel in anti-clogging but also offer low leakage rates and can withstand high-pressure differentials, making them increasingly popular in industrial applications.
Corrosion Resistance
When used with corrosive media, control valves must be resistant to corrosion. Corrosion is primarily caused by the chemical properties of the medium and is typically addressed by selecting corrosion-resistant materials. Additionally, high-speed media or those containing particulates can cause erosion, which requires the use of wear-resistant materials and the implementation of anti-cavitation and anti-erosion measures to extend valve life. In high-pressure differential or particulate-laden environments, corrosion and erosion resistance become especially important.
Pressure Resistance
Pressure resistance refers to the valve's ability to withstand high pressure and maintain structural integrity, preventing leaks from the seals or valve body defects. Valves are usually tested to 1.5 times their nominal pressure before leaving the factory to verify their pressure resistance. In high-pressure systems, forged valves are recommended, while cast iron valves, with the lowest pressure strength, are suitable only for low-pressure applications. Cast steel valves, due to their higher pressure strength, are commonly used in high-pressure environments.
Temperature Resistance
A control valve's temperature resistance determines its ability to function properly in high or low-temperature environments. Extreme temperature fluctuations can weaken the valve body material, so the valve must adapt to the medium's temperature range to ensure sufficient strength and safety. For applications with large temperature variations, selecting materials and designs with excellent temperature resistance is crucial.
Conclusion
With a combination of these features, control valves provide efficient and reliable fluid control in complex working conditions. Whether in chemical, petroleum, natural gas, or power industries, or in any industrial environment requiring precise control, control valves play an irreplaceable role. As process requirements increase and technology evolves, control valves will continue to advance toward greater efficiency, intelligence, and durability.
