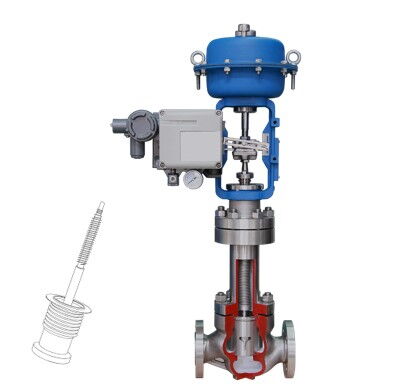

Pneumatic Bellows Control Valves in High-Pressure Applications

In industrial process control, pneumatic bellows control valves play a crucial role as key regulatory elements. These valves face significant challenges, particularly in high-pressure, low-flow applications. High-pressure environments demand stringent requirements for valve design and material selection to ensure stable operation under extreme conditions. Pneumatic bellows control valves provide effective solutions through precise design and material choices, addressing complex issues such as high-pressure differentials, flow control, and sealing performance. This article will delve into these challenges and explain how optimizing design and material selection can enhance the performance of pneumatic bellows control valves in various demanding conditions.

Challenges in High-Pressure Low-Flow Applications


Pneumatic bellows control valves face several challenges in high-pressure low-flow applications, which can be summarized as follows.

1. Actuator Output Force


Under high-pressure conditions, the actuator must provide sufficient output force to control the valve effectively. The actuator design must ensure stable performance and reliable operation in such high-pressure environments.

2. Component Strength


High-pressure environments impose higher strength requirements on all valve components. The materials and structure of the valve must withstand the mechanical stresses induced by operating pressures to prevent damage or failure due to insufficient strength.

3. High-Pressure Sealing


Ensuring the valve's sealing integrity under high pressure is crucial. High-pressure sealing must not only prevent medium leakage but also handle changes in sealing performance due to pressure variations. Sealing materials and designs must effectively address these challenges.

4. Cavitation Prevention


In high-pressure low-flow situations, cavitation can occur, leading to decreased valve performance or even damage. To prevent cavitation, valve designs must be optimized to minimize the risk of bubble formation.

5. Voltage Drop Reduction


Voltage drop is a key factor affecting valve performance. Through careful design and optimization, voltage drop can be effectively reduced, improving the valve's control precision and stability.

6. Handling Large Allowable Pressure Differentials


In high-pressure low-flow applications, the valve must manage large allowable pressure differentials. This requires a design capable of handling significant pressure differences to ensure proper operation and performance stability.

Valve Core Design


Pneumatic bellows control valves utilize pressure-balanced structures to address challenges associated with high-pressure differentials. Key features include the following designs.

1. Pressure-Balanced Core


This structure balances the pressure on both sides of the valve core, reducing the required opening and closing forces. This feature allows the valve to operate more easily in high-pressure differential environments, enhancing operational efficiency and reliability.

2. Single-Seated Sleeve Structure


By replacing the traditional double-seated sleeve structure with a single-seated sleeve and using a balancing seal ring instead of a high-pressure gate valve, leakage control is further improved. This modification not only optimizes the valve design but also enhances sealing performance under high-pressure differentials.

3. Corrugated Tube and Packing Double Sealing


Combining corrugated tubes with packing seals effectively eliminates the possibility of medium leakage. The use of corrugated tubes significantly improves sealing performance, particularly for flow and pressure control of toxic or valuable media.

4. Low Operating Force


Due to the pressure-balanced structure, the valve can be controlled with a relatively small actuator thrust in high-pressure differential conditions. This not only improves operational convenience but also reduces the requirements for the actuator.

Materials and Applications of Bellows


Bellows play a crucial sealing role in pneumatic bellows control valves, primarily to prevent medium leakage, protect internal valve components, and block external impurities and air. The choice of bellows material directly impacts valve performance.

1. PTFE Bellows


Advantages: PTFE bellows offer excellent chemical stability and corrosion resistance, making them particularly suitable for handling corrosive media. They effectively prevent corrosion and damage to valve components, with a relatively simple manufacturing process and lower cost.
Limitations: Although PTFE bellows perform well at room temperature, their physical properties may change under high-temperature and high-pressure conditions, affecting sealing performance and pressure resistance. Thus, alternative materials are often needed for high-temperature and high-pressure applications.

2. Metal Bellows


Advantages: Metal bellows, made from stainless steel and other metals, exhibit superior mechanical strength and high-temperature and high-pressure capabilities. They maintain stable performance in various harsh conditions, suitable for high-temperature, high-pressure, and corrosive environments.
Application Range: Metal bellows are not limited by temperature and pressure, offering a wide range of material options. This versatility ensures valve reliability and long-term stable operation in diverse conditions.

Selecting the appropriate bellows material is critical for the performance and reliability of pneumatic bellows control valves. PTFE bellows are ideal for corrosive media with lower manufacturing costs but are unsuitable for high-temperature and high-pressure environments. Metal bellows offer strong mechanical strength and high-temperature and pressure resistance, making them suitable for various harsh conditions. By choosing the right materials and optimizing designs, the performance and long-term stability of pneumatic bellows control valves can be ensured, enhancing the overall efficiency and safety of the system.
