Stick-Slip Induced Oscillations in Pneumatic Control Valves

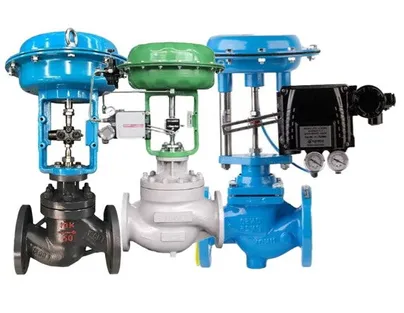

Pneumatic control valves are core components in modern automation control systems, playing a critical role in many industrial applications, especially in the regulation of variables like flow, pressure, and temperature. However, over time, mechanical wear and environmental factors can lead to stick-slip phenomena, which can have a significant impact on control loops. Stick-slip-induced oscillations not only affect system stability but can also result in reduced production efficiency, increased quality fluctuations, and energy waste. Therefore, it is crucial to analyze the stick-slip-induced oscillations in pneumatic control valves and explore effective methods for eliminating them to improve control accuracy, ensure production safety, and reduce operational costs.

Formation of Stick-Slip and Causes of Loop Oscillations

The stick-slip phenomenon in pneumatic control valves typically occurs due to excessive static friction between the valve stem and packing. After the valve has been in operation for a period, factors such as insufficient lubrication, wear, or environmental influences can increase the friction between the stem and packing, causing the valve to move more slowly or become less smooth. This stick-slip phenomenon is one of the most common causes of nonlinear faults in pneumatic control valves.

In a traditional PID control loop, the controller adjusts the output to bring the system to the setpoint. However, when stick-slip faults are present, the direction of adjustment becomes unstable, resulting in slow or imprecise valve movement. When the controller's output fails to overcome the static friction of the valve in time, the valve movement lags, causing loop oscillations. The frequent reversal of adjustments by the controller leads to continuous changes in valve direction, creating a limit-cycle-like oscillation, with the control variable fluctuating around the setpoint. As seen, the PID controller's characteristics, particularly in the presence of stick-slip, often exacerbate oscillations, further destabilizing the system.

Impact of Stick-Slip on Loop Oscillations

The stick-slip phenomenon significantly impacts the stability of the control loop, leading to oscillations. Increased friction between the stem and packing makes the valve's response slower, causing fluctuations of the control variable around the setpoint. In particular, in a PID control system, stick-slip worsens oscillations, affecting precise control and reducing production efficiency while increasing energy consumption.

1. Production Quality Fluctuations

Oscillations in the loop prevent the control variable from staying near the setpoint, leading to quality variations in the product. For instance, in industries such as chemicals and food processing, instability in temperature or pressure can cause products to fail to meet requirements, increasing scrap rates.

2. System Efficiency Decline

Oscillations induced by stick-slip increase energy consumption in the control process. The controller must continually adjust the output to address the oscillations, leading to unnecessary energy wastage.

3. Increased Equipment Wear

Prolonged oscillations can lead to frequent movement of pneumatic control valves and controllers, accelerating wear on mechanical components, shortening equipment life, and potentially increasing maintenance and replacement costs.

4. Reduced Control Accuracy

The stick-slip phenomenon prevents pneumatic control valves from adjusting precisely according to the control system's setpoint, diminishing the system's control accuracy. In applications requiring high-precision control, such as gas flow control or temperature regulation, loop oscillations can lead to serious consequences.

Elimination of Stick-Slip-Induced Oscillations in Pneumatic Control Valves

To eliminate loop oscillations caused by stick-slip in pneumatic control valves, several methods can be applied, focusing on control strategies, system design, and equipment maintenance.

1. Optimize PID Control Parameters

Traditional PI controllers often exacerbate oscillations in the loop. By adjusting the controller's parameters, the occurrence of oscillations can be reduced. Specifically, in a traditional PI controller, where the setpoint is r(k), the actual output is y(k), the proportional coefficient is P, and the sampling period is T, increasing the proportional coefficient P and optimizing the integral coefficient I can improve the controller's response speed, thus better addressing the stick-slip phenomenon.

2. Adjust Controller Output

When stick-slip occurs, the controller's output needs to be increased to overcome the static friction of the valve stem. Increasing the output rate helps the stem move quickly, escaping the stick-slip state and preventing loop oscillations. At the same time, in the absence of stick-slip, the controller's output rate should be appropriately reduced to ensure precise valve adjustment and avoid excessive adjustments that could cause additional oscillations.

3. Introduce Fuzzy Controllers

Fuzzy controllers, a modern control strategy, offer unique advantages in eliminating loop oscillations. These controllers use fuzzy logic to map inputs and outputs, making them more flexible than traditional PID controllers when dealing with system uncertainty and nonlinear issues. By applying traditional PI controller parameters to a fuzzy controller and adjusting the system in practice, fuzzy controllers can effectively eliminate oscillations caused by stick-slip. Experiments have shown that fuzzy controllers significantly improve the response speed and accuracy of pneumatic control valves, reducing system fluctuations.

4. Regular Maintenance and Lubrication

To prevent the occurrence of stick-slip, regular maintenance and lubrication of pneumatic control valves are essential. Routine checks of key components such as the valve stem and packing, timely replacement of damaged or worn parts, and ensuring adequate lubrication can reduce friction and lower the likelihood of stick-slip, addressing the root cause of oscillations.

5. Improve Pneumatic Control Valve Design

Modern pneumatic control valve designs increasingly focus on reducing friction and improving responsiveness. For example, using low-friction materials or redesigning the contact area between the valve stem and packing can effectively reduce static friction, thereby reducing the occurrence of stick-slip. Additionally, the actuator and control system of pneumatic control valves can be optimized to enhance overall system stability and accuracy.

Conclusion

The stick-slip phenomenon in pneumatic control valves leading to loop oscillations is a common and significant issue in automation control systems. It not only affects system stability but also leads to production quality fluctuations, decreased efficiency, and equipment wear. To effectively eliminate this issue, methods such as optimizing traditional PID control parameters, using modern fuzzy controllers, improving equipment design, and ensuring regular maintenance and lubrication are necessary. By adopting these comprehensive methods, the performance of pneumatic control valves and system stability can be significantly improved, ensuring efficient and safe production processes.
