Rack & Pinion Pneumatic Actuator, 90°, 135°, 180°, Max 4700 Nm

Rack & Pinion Pneumatic Actuator, 90°, 135°, 180°, Max 4700 Nm
Rack & Pinion Pneumatic Actuator, 90°, 135°, 180°, Max 4700 Nm

Key Specifications / Features

Model no.: CNCV-240705-CVA-01

We specializes in rack & pinion pneumatic actuators available in single or double-acting types. These actuators operate at angles of 90°, 135°, and 180°, offering a maximum torque of 4700 Nm. They require an air supply ranging from 2.5 bars to 8 bars, providing robust and reliable performance for various industrial automation and control applications.

Categories

Tags:

Request a quote

Detail Information


Product Name: Rack and Pinion Pneumatic Actuator
Type: Single or Double Acting Pneumatic Actuator
Stroke: 90°, 135°, 180° and Customized Angle
Torque: Max 4700 Nm
Air Supply Range: 2.5 Bars to 8 Bars, Max 10 Bars
Working Temperature: -40°C to +150°C
Ambient Temperature: -20°C to +90°C
Optional Accessories: Solenoid Valve, Positioners, Limit Switch, Filter, Regulator, Lubricator, etc

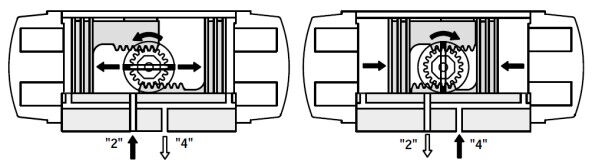

Rack and Pinion Pneumatic Actuator Working
